MW301R
Mercusys MW301R, 300Mbps Wireless N Router
[2524][MW301R]
The product is
no longer available
Prices exclude VAT

Mercusys MW301R, 300Mbps Wireless N Router
EAN:6957939000141

MW301R - 300Mbps Wireless N Router

The MW301R provides fast, stable Wi-Fi for your connected devices.

Wireless speeds of up to 300Mbps make it ideal for HD streaming, online gaming, and rapid file downloads.

With its two 5dBi antennas that work to boost its reception and signal sensitivity, the MW301R provides broad wireless coverage.

Product Links:
Product Page Product Page   Datasheet Datasheet   User Guide User Guide   Support Page Support Page

Specifications:
Part Number MW301R
Wireless Security WPA-PSK / WPA2-PSK
Protocols IPv4, IPv6
Power Supply 5VDC/0.6A
Antenna Type 2 * 5dBi fixed omni directional antennas
Signal Rate 11n: Up to 300Mbps (Dynamic)
11g: Up to 54Mbps (Dynamic)
Button RESET
Wireless Standards IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Frequency 2.4 - 2.4835GHz
Reception Sensitivity 270M: -70dBm@10% PER ~ 1M: -97dBm@8% PER

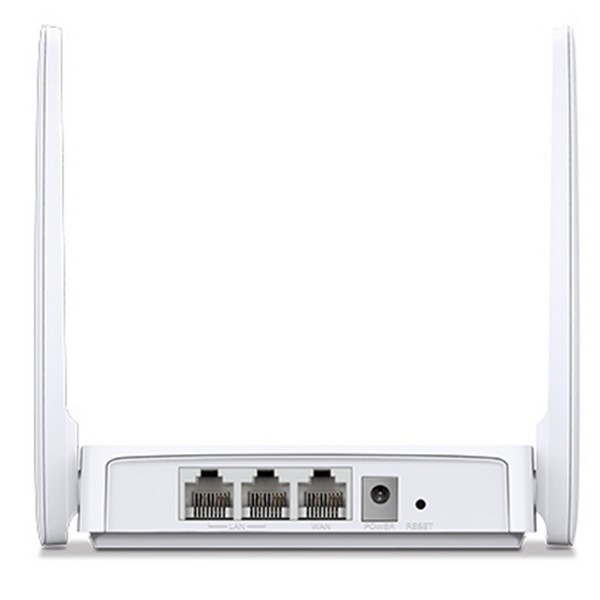

Interfaces 2*10/100Mbps LAN ports
1*10/100Mbps WAN port
Transmission Power <20dBm
Wireless Functions WDS bridge
WAN Type Dynamic IP/Static IP/PPPoE/L2TP/PPTP
Management Parental Control
Access control
Local management
Remote management
DHCP Server
Port Forwarding Virtual server, UPnP, DMZ
Dynamic DNS DynDNS、NO-IP
Firewall Security IP and MAC address binding
Guest Network 2.4GHz guest network
Dimensions 114x94x26 mm
Operating temperature
0⁰C ~ 40⁰C
Operating humidity
10% ~ 90%, non-condensing
Certifications CE, ROHS

Package Contents:
1 x MW301R
1 x Quick Installation Guide
1 x Power Adapter 5VDC/0.6A EU Type
1 x Lan Cable

Additional Images:
Return for:
Refund: Store Credit: Repair:
20 day(s) 40 day(s) 12 month(s)
