Aerial.net :: 802.3af/at - 48v to 5V/2A 10/100 PoE Splitter

EZ-PSP05U

802.3af/at - 48v to 5V/2A 10/100 PoE Splitter - Micro USB
[2627][EZ-PSP05U]

The product is
no longer available

Prices exclude VAT

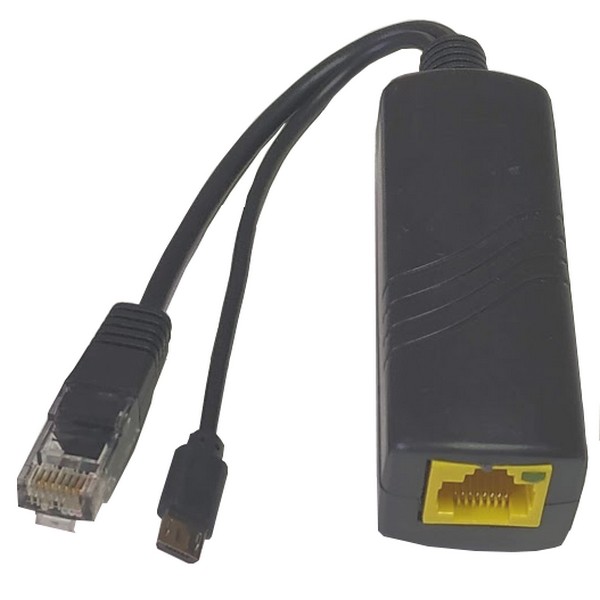

EZ-PSP05U is an 802.3af/at - 48v splitter to power non-PoE enabled devices. - Withοut Isolation Transformer

It accepts 48v and/or 802.3af/at PoE to output fixed 5v/2A via the Micro USB and 10/100 RJ45 Jack.

This way a non PoE enabled 5V device (Raspberry Pi, IP Camera) can be powered remotely via any 802.3af/at PoE Injector or PoE Switch

Input / Output Specifications :
DC Input Voltage Max	48V DC
DC Output Voltage	5V DC
Max Output Current	2.4A Max.
DC Jack	Micro USB
Operating Temperature	-10^oC ~ +60^oC
Storage Temperature	-20^oC ~ +70^oC
Humidity	Up to 90%
Weight	58gr
Dimensions	290mm * 28mm * 21mm

Package Contents:
1 x EZ-PSP05U in polybag
