RJ45 / Ethernet » Connectors » EZ-RJ45E-S
EZ-RJ45 - Cat.6, Shielded Connector - 1 pc
[2664][EZ-RJ45E-S]
Price: 0,11€
 Order or Qty  Price
 > 500€  5+   0,11€
 > 1000€  10+   0,11€
 > 2000€  20+   0,10€
 > 5000€  40+   0,10€
 > 10000€  100+   0,10€
Prices exclude VAT

EZ-RJ45 - Cat.6, Shielded Connector - 1 pc

In Stock: 400
Order Qty:
UPC:728615665116

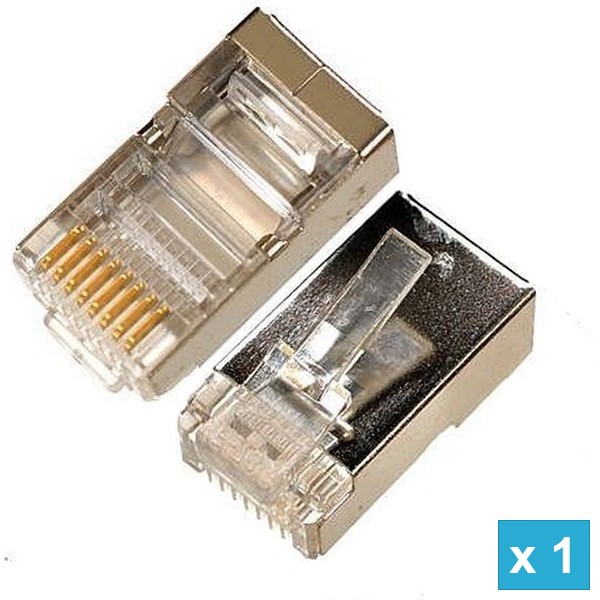

EZ-RJ45E-S - RJ45 Shielded  Connector, Cat.6

Description :

The EZ-RJ45E-S Shielded 8P8C RJ45 modular plug is suitable for applications and features Gold Flash on contacts for optimum data transmission.

This shielded RJ45 crimp plug is easy to terminate with no management bar or special crimp rings required.

The shielding protects against EMI/RFI interference and maintains proper ground connection to shielded jacks.

A radius cable entry helps to maintain cable pairs for category rated cables.

Device:
Type: Shielded RJ45 Cat.6 Plug
Style: Solid UTP Plug

Materials:
Contactl: Phospor Bronze
Contacts: Gold Flash over Nickel underplate.
Housing: Polycarbonate

Electrical:
Contact Current Rating: 1.5 Amps
Dielectric Voltage: 1000V AC
Insulation Resistance: 500MOhms Min

Pin T568A
pair
T568B
pair
10BASE-T
100BASE-TX
1000BASE-T
signal ID
Wire T568A
color
T568B
color
Pins on plug face
1 3 2 TX+ DA+ tip Pair 3 Tip
white/green stripe
Pair 2 Tip
white/orange stripe
2 3 2 TX− DA− ring Pair 3 Ring
green solid
Pair 2 Ring
orange solid
3 2 3 RX+ DB+ tip Pair 2 Tip
white/orange stripe
Pair 3 Tip
white/green stripe
4 1 1 DC+ ring Pair 1 Ring
blue solid
Pair 1 Ring
blue solid
5 1 1 DC− tip Pair 1 Tip
white/blue stripe
Pair 1 Tip
white/blue stripe
6 2 3 RX− DB− ring Pair 2 Ring
orange solid
Pair 3 Ring
green solid
7 4 4 DD+ tip Pair 4 Tip
white/brown stripe
Pair 4 Tip
white/brown stripe
8 4 4 DD− ring Pair 4 Ring
brown solid
Pair 4 Ring
brown solid

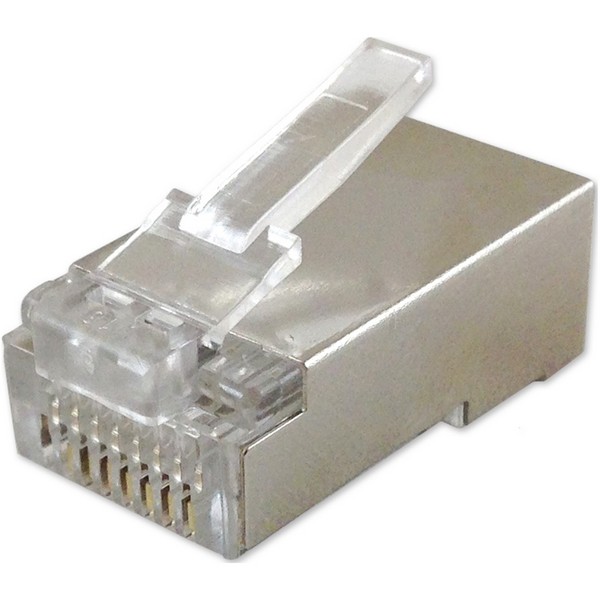

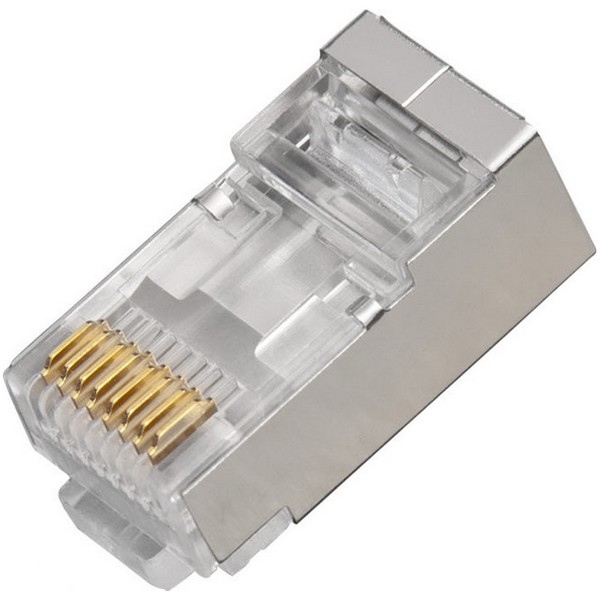

Additional Images:

Return for:
Refund: Store Credit: Repair:
20 day(s) 40 day(s) 12 month(s)
