Internet of Things » Case » EZ-SPDRC2
68*35*8mm Universal DIN Rail spring clip
[EZ-SPDRC2]
Price: 2,92€
 Order or Qty  Price
 > 500€  5+   2,86€
 > 1000€  10+   2,80€
 > 2000€  20+   2,74€
 > 5000€  40+   2,69€
 > 10000€  100+   2,63€
Prices exclude VAT

68*35*8mm Universal DIN Rail spring clip

In Stock: 32
Order Qty:

EZ-SPDRC2 -  68*35*8mm Universal DIN Rail spring clip

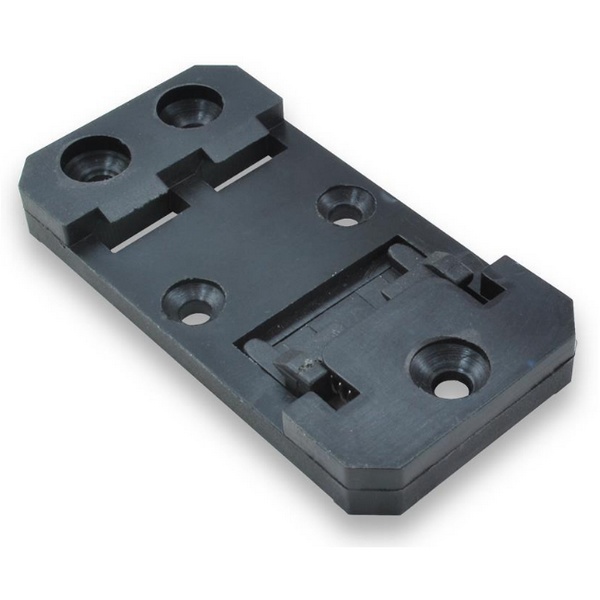

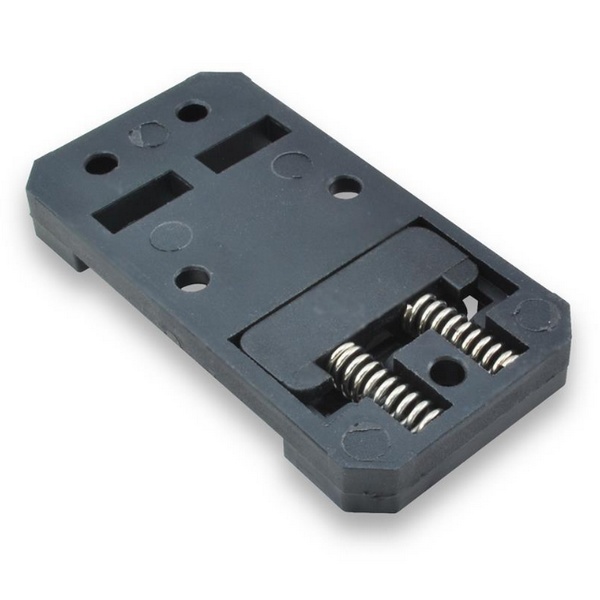

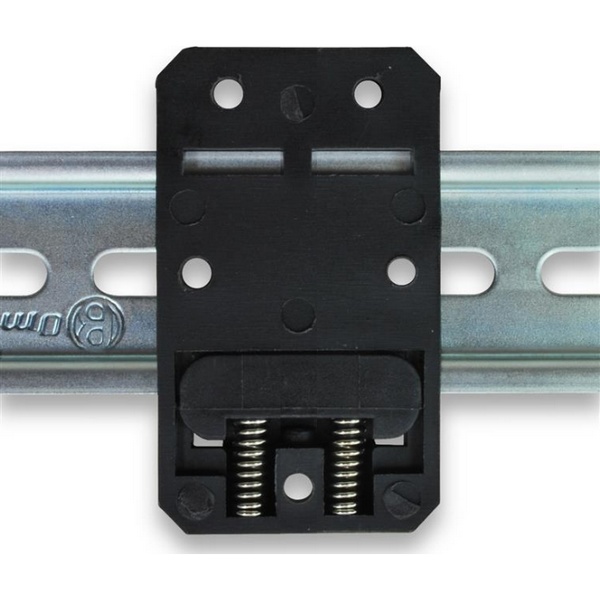

A Universal 35mm spring-actuated DIN rail mount clip that can convert any enclosure to DIN Rail mountable

These sturdy DIN rail mounting brackets come in handy for a wide variety of projects where standard DIN rail is used for mounting devices.

The flat mounting surface and a total of 5 mounting holes make this clip versatile for mounting devices that do not have their own DIN rail mounting clip.

All of these clips are for standard 35mm DIN rail and work with rail depths of 7.5mm or greater. These clips are sometimes known as DIN rail mounting plates.

Specifications:

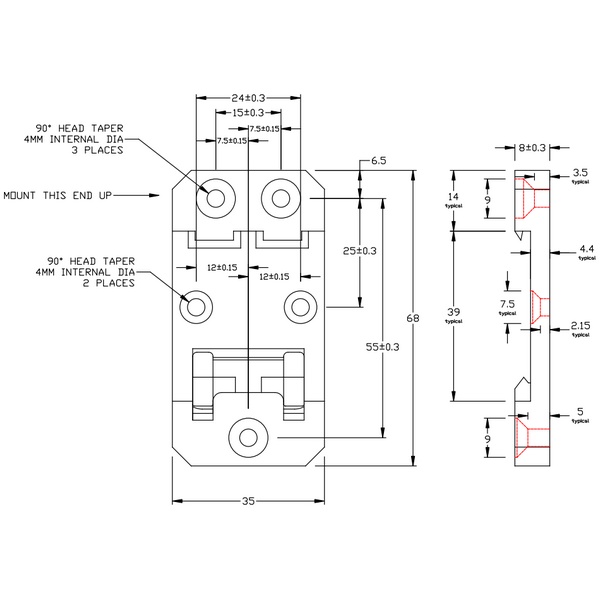

Dimentions
 68mm x 35mm x 8mm
Weight 18gr
Material Fiber Glass Reinforced Nylon 66 (PA66 + GF30%)
Color Black


Additional Images:

Return for:
Refund: Store Credit: Repair:
20 day(s) 40 day(s) 12 month(s)
