USW-Flex-Utility : Switch Flex Utility

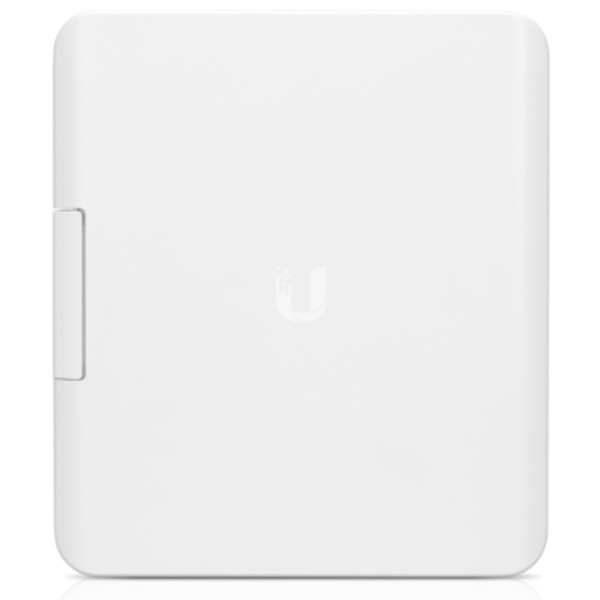

The USW Flex Utility is an outdoor weatherproof enclosure designed for use with the UniFi Switch Flex, USW-Flex.
It includes an Ethernet patch cable and a 60W PoE adapter, which provides a maximum PoE budget of 46W.

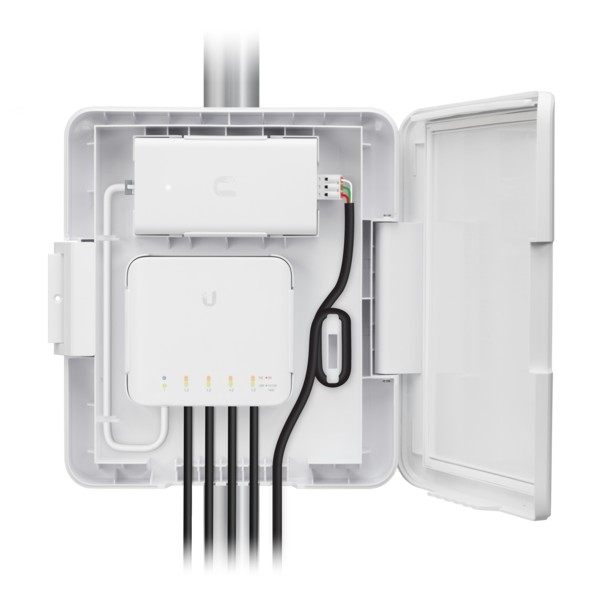

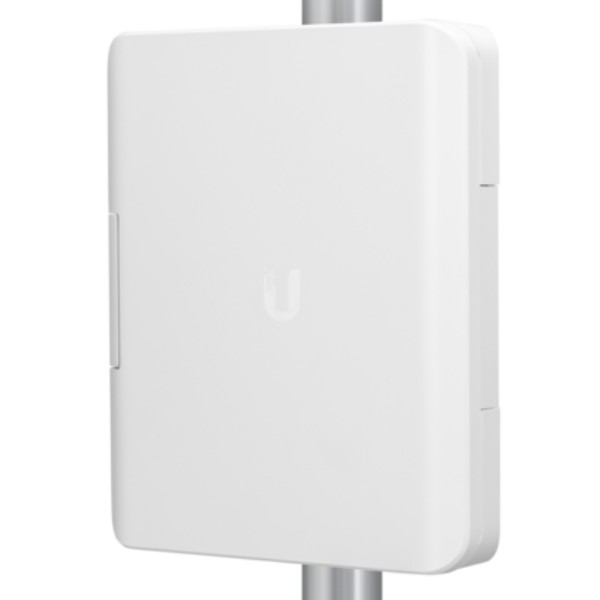

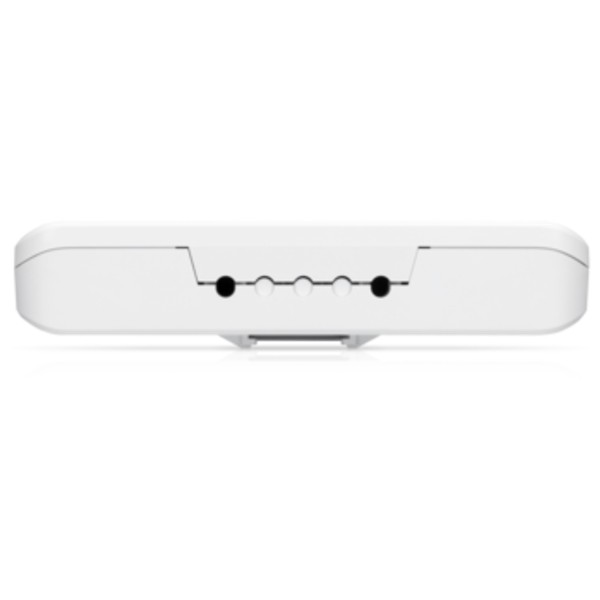

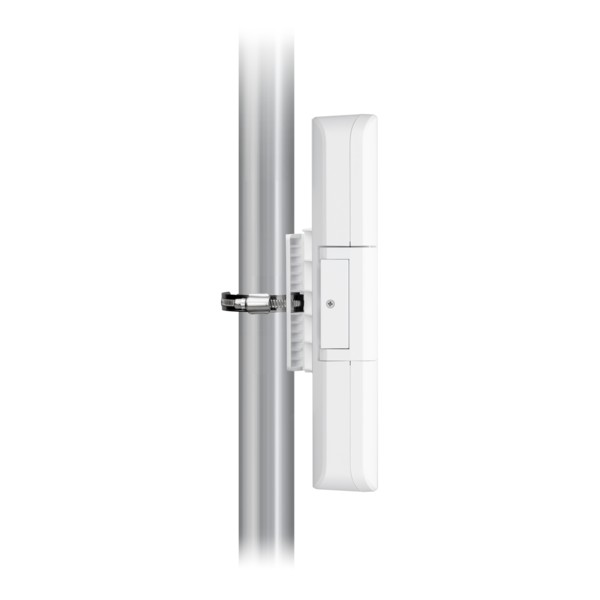

The USW Flex Utility can be easily mounted on a pole, provides clean cable management and screw lock for security.
To enable PoE output power, select Power Source PoE Injector in UniFi Application.
Note: USW-Flex sold separately
|
USW-Flex-Utility |
|
Dimensions (with Mount) |
249 x 218 x 60 mm |
|
Weight (with Mount) |
740 g |
|
USW-Flex-Utility 60W PoE Adapter |
|
Dimensions |
118.5 x 63 x 34.7 mm |
|
Weight |
206 g |
|
Output Voltage |
54V, 1.11A |
|
Rated Voltage |
100-240VAC |
|
Input Current |
1.5A (Max.) |
|
Efficiency |
> 86% |
|
Output Ripple |
200mVpp |
|
Line Regulation |
< 1% |
|
Load Regulation |
< 3% |
|
4-Pair Powering |
Pins 1, 2, 4, 5+ and Pins 3, 6, 7, 8- |
|
Operating Temperature |
-20 to 60 ̊C |
|
Storage Temperature |
-30 to 70 ̊C |
|
Operating Humidity |
5 to 90%, Noncondensing |
|
Surge Immunity |
4kV Difference and Common Mode |
