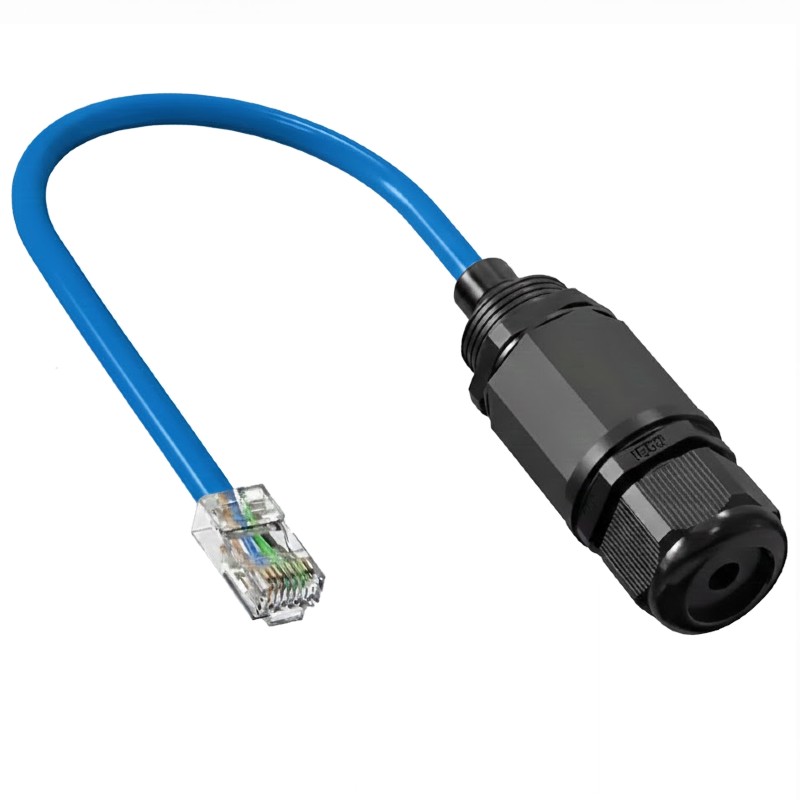

EZ-RJ45ECE connector system is a field replaceable outdoor rated Cat.6 Ethernet connection system for high speed 10BaseT, 100BaseT and 1000BaseT networks.

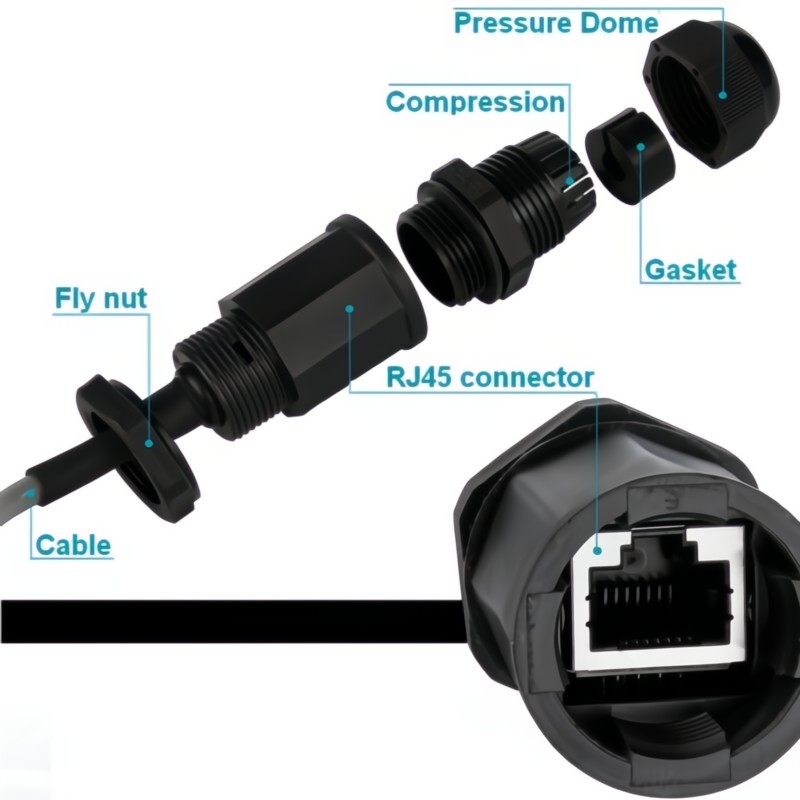

The system features a standard RJ45 Receptacle mounted in a UV protected housing and a mating cable gland which passes an RJ45 connector and seals the cable to IP67 requirements.
EZ-RJ45ECE provides for quick and easy disconnect and reconnect of equipment.
Because of its many unique design features and low cost, the EZ-RJ45ECE is a universal solution for many industries where a sealed and waterproof, yet removable, Ethernet connection is required.
For modern wireless systems, the quick disconnect feature allows for ready replacement of rooftop equipment, to minimize field time spent servicing customer's equipment, and minimizing downtime for the customer. This helps to increase operator profitability and customer satisfaction.
|
Specifications: |
|
Part Number |
EZ-RJ45ECE20-S |
|
RJ45 |
10/100/1000 Cat.6 - SHIELDED |
|
Mechanical |
Cat.6 Cable Strain Relief |
|
Material |
UV Resistant Nylon 66 |
|
Sealing |
IP67 |
|
Temperature |
-40°C to +85°C |
|
Installation Hole Size |
ø 20mm |
|
Installation Panel Size |
1.5mm-2.5mm |
|
Gland Dimensions |
87mm x 30mm |
|
Overal Dimenstions |
30cm x 3cm |
|
Weight |
65gr |
| Package Contents: |
|---|
| 1 x EZ-RJ45ECE20-S |
|
