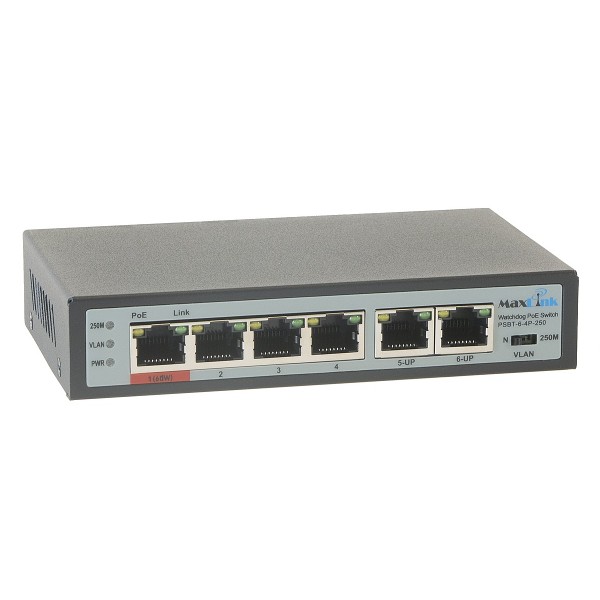

PSBT-6-4P-250 - a 6 port 10/100Mbps PoE switch without management.
Automatically detects and powers devices supporting PoE standard 802.3af/at (max. 30 W/port) on ports 1 to 4, on port 1 even supports PoE standard 802.3bt (60 W).
Ports 5 and 6 serve as uplinks and do not support PoE. The total budget for powering the connected devices is 65 W using the external 52V/1.25A power adapter included in the package.
The switch automatically balances the power for individual ports according to the consumption of the device.
802.3bt support! Port 1 additionally supports the 802.3bt standard, where the output power of up to 60 W is available for the connected device!
The switches are now also equipped with a function Watchdog. If the Ethernet link is not detected for about 1 minute and the power supply is active at the same time, the supply voltage will be interrupted and the connected device will be restarted.
Switch has a manual mode switch Normal "N": The switch powers the device at a distance of max. 100 m. or up to 250 m with a reduced throughput of 10 Mbps per port.
The throughput of the switch per port is 10/100 Mbps. VLAN: Ports are logically separated from each other, in this mode unwanted broadcast storms can be avoided.
|
Specifications: |
|
Part No |
PSBT-6-4P-250 |
|
Ports |
6 x 10/100Mbs |
|
Power: |
|
DC Connector
|
52V @ 1.25A max |
|
PoE type |
PoE out |
|
PoE-Out |
802.3af, 802.3at, 802.3bt |
|
PoE Out ports |
4 (1-4) |
|
UpLink ports |
2 (5-6) |
|
PoE budger |
65W |
|
Physical: |
|
Chassis |
Steel |
|
Fan |
No |
|
Operating temp |
0°C to 40°C |
|
Dimensions |
138 x 81 x 22mm |
|
Weight |
320gr |
