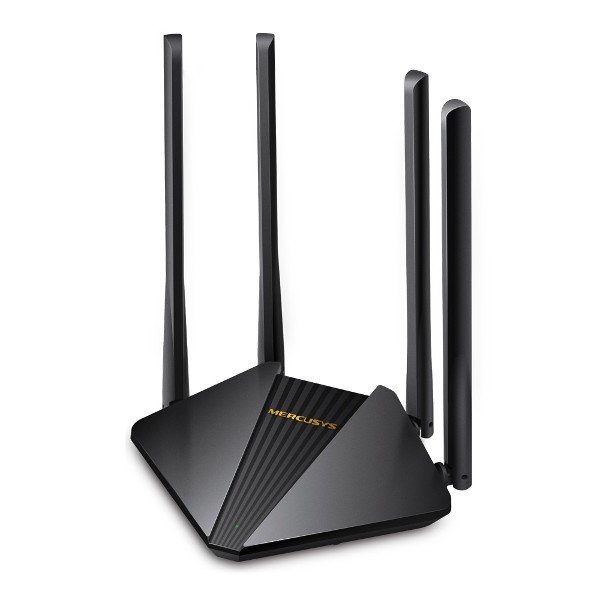

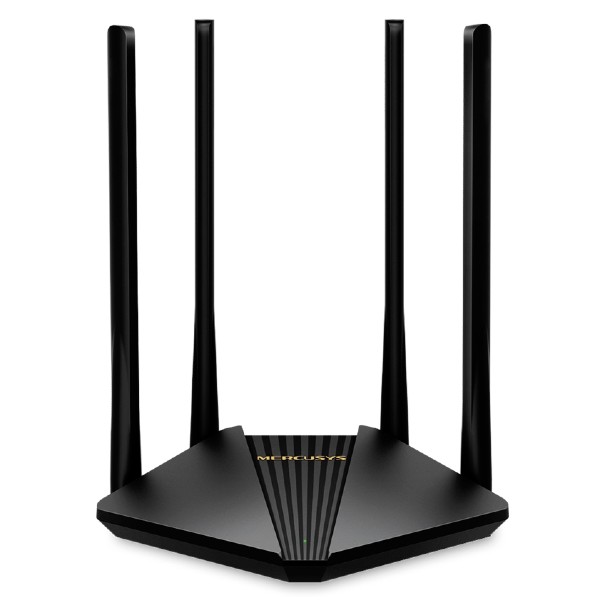

MR30G - AC1200 Wireless Dual Band Gigabit Router
AC1200 Gigabit Speeds Dual Band WiFi Delivers Fast Connections for All Devices Complying with the powerful 802.11ac standard, MR30G delivers blazing-fast WiFi speeds up to 1.2 Gbps.
Choose the 2.4 GHz band (300 Mbps) that transmits signals with better wall penetration for longer distances as you browse the internet, email a colleague, or share a link on social media.
When you’re streaming HD videos, gaming, or other bandwidth-intensive tasks, choose the 5 GHz band (867 Mbps) which delivers higher speeds with less interference.†
|
Specifications: |
|
Part Number |
MR30G |
|
Wireless Standards
|
IEEE 802.11ac/n/a 5 GHz, IEEE 802.11b/g/n 2.4 GHz
|
|
Frequency |
2.4 GHz, 5 GHz
|
|
WiFi Speeds |
867 Mbps (5 GHz) + 300 Mbps (2.4 GHz),
compatible with 11ac/a/b/g/n Wi-Fi standards
|
|
Reception Sensitivity |
11g 6Mbps: -96dBm
11g 54Mbps: -78dBm
11n HT40 MCS7: -74dBm
11n HT20 MCS7: -71dBm
11a 6Mbps: -97dBm
11a 54Mbps: -79dBm
11ac VHT20 MCS8: -74dBm
11ac VHT40 MCS9: -70dBm
11ac VHT80 MCS9: -65dBm
|
|
Transmission Power |
2.4 GHz < 20dBm (EIRP)
5 GHz < 23dBm (EIRP)
|
|
Wireless Security |
WPA-PSK / WPA2-PSK
|
|
Software |
|
Operation Modes |
Router Mode, Access Point Mode |
|
WAN Type |
Dynamic IP/Static IP/PPPoE/L2TP/PPTP |
|
Management |
Access Control
Local Management
Remote Management
|
|
DHCP |
Server, DHCP Client List
|
|
NAT Forwarding |
Port Forwarding, Port Triggering, UPnP, DMZ |
|
Firewall Security |
SPI Firewall, IP and MAC Address Binding
|
|
Guest Network |
2.4 GHz Guest Network, 5 GHz Guest Network
|
|
Hardware |
|
Dimensions |
159.7 × 125.9 × 37.1 mm |
|
Interfaces |

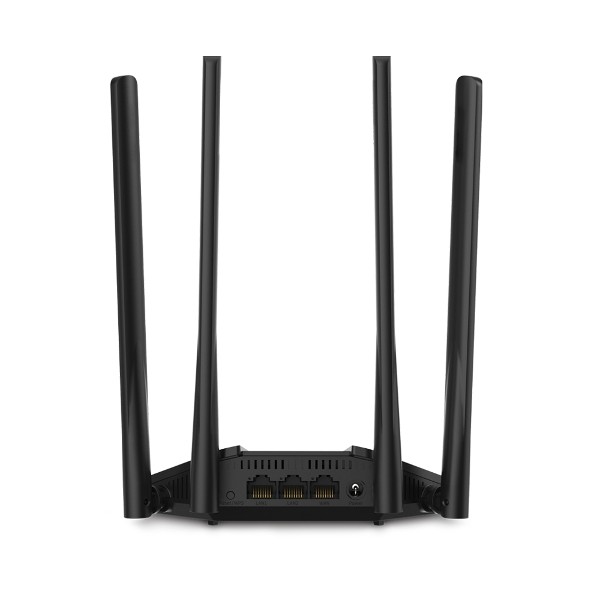

1× Gigabit WAN Port + 2× Gigabit LAN Ports
|
|
Button |
WPS/Reset Button
|
|
Antenna Type |
4×5 dBi Fixed Omni-Directional Antennas |
|
Others |
|
Package Contents |

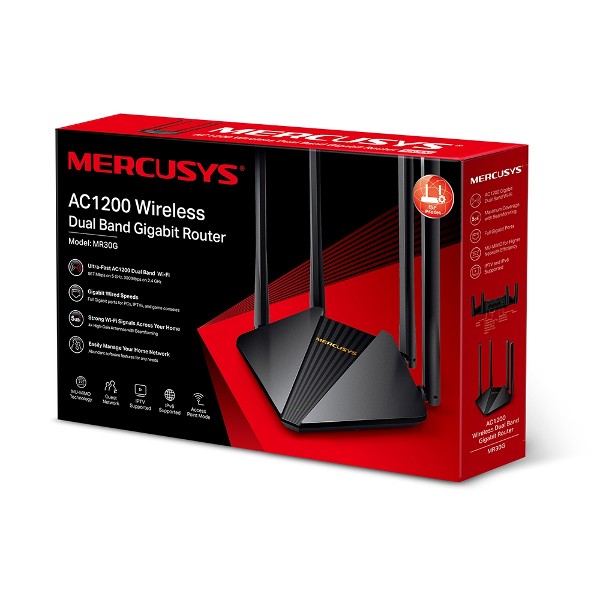

• AC1200 Wireless Dual Band Gigabit Router (MR30G)
• Power Adapter
• Quick Installation Guide
• RJ45 Ethernet Cable
|
|
Environment |
• Operating Temperature: 0°C~40°C
• Operating Humidity: 10%~90% Non-Condensing
• Storage Humidity: 5%~90% Non-Condensing
|
| Package Contents: |
|---|
| 1 x MR30G
|
| 1 x Quick Installation Guide
|
| 1 x Power Adapter
|
| 1 x Lan Cable |
|
