C6x - 6E PtMP ro PtP unit
The Mimosa C6x is a powerful fixed wireless radio delivering up to 1.75 Gbps in Point-to-Multipoint and 2.0 Gbps in Point-to-Point modes.
With adaptable range options and a durable IP67-rated design, the C6x is built for seamless client and backhaul applications, offering reliable, high-speed connectivity in any environment.
The C6x achieves ultra-low latency with advanced interference reduction for high reliability in challenging environments.
The C6x can be used in either PtMP (point to multi point) client or PtP (point to point) configuration without the need for additional license.
|
Performance |
|
Max Throughput (PTP) |
2.0 Gbps IP aggregate |
|
Max Throughput (PTMP) |
1.75 Gbps IP aggregate UL/DL (2402 Mbps PHY) |
|
Wireless Protocols |
WiFi Interop; Auto-TDD (future); PTMP TDMA (future) |
|
Modes |
PTP backhaul, PTMP client |
|
Radio |
|
MIMO & Modulation |
2x2, PTMP MU-MIMO, OFDMA (future), BPSK-1024QAM |
|
Bandwidth |
20/40/80/160 MHz channels, tunable to 5 MHz increments |
|
Frequency Range |
5150–6425 MHz (restricted by country of operation) |
|
Max Output Power |
27 dBm |
|
Rx Sensitivity (MCS 0) |
-87 dBm @ 160 MHz | -90 dBm @ 80 MHz | -93 dBm @ 40 MHz | -96 dBm at 20 MHz |
|
Power |
|
Max Power Consumption |
20 W |
|
System Power Method |
Passive PoE |
|
PoE Power Supply |
Compliant, 24 V (PoE injector not included) |
|
Compatible PoE Injector (Sold Separately) |
502-00030 (PoE Injector 24V 30W) |
|
Physical |
|
Dimensions (H x W x D) |
178 x 113 x 67 mm |
|
Weight |
0.7 kg |
|
RF Connector Type |

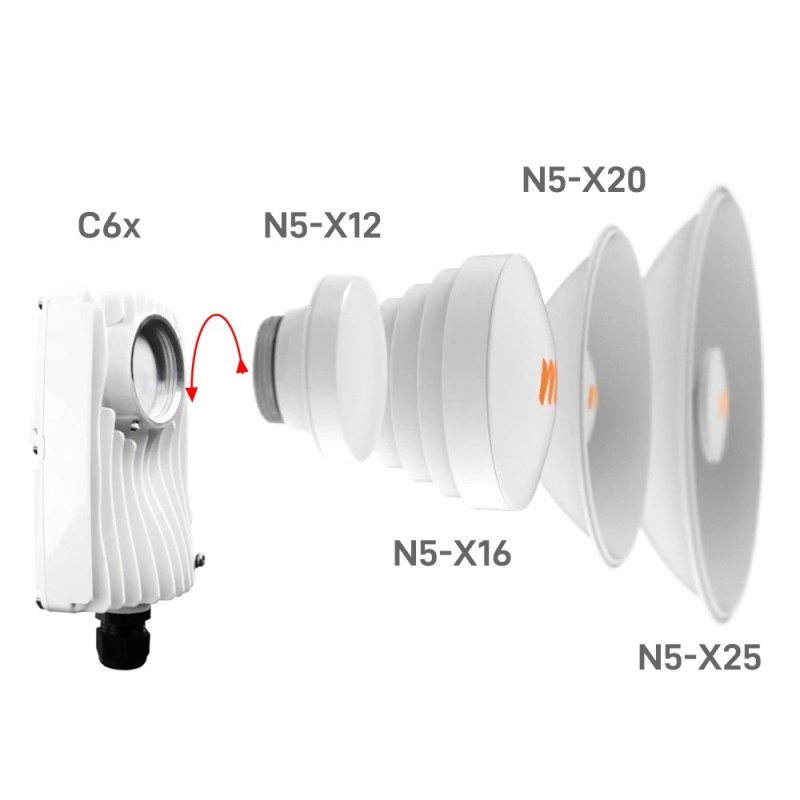

Mimosa N5-X twist-on |
|
Enclosure Characteristics |

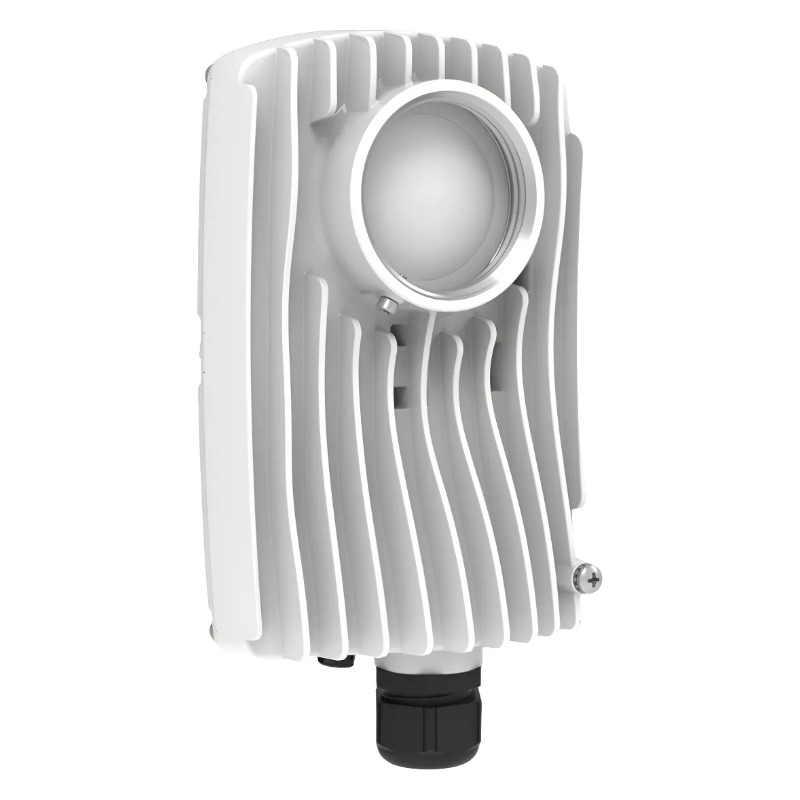

Die-cast aluminum, UV stabilized paint, with outdoor UV stable plastic radome lens |
|
Mounting |

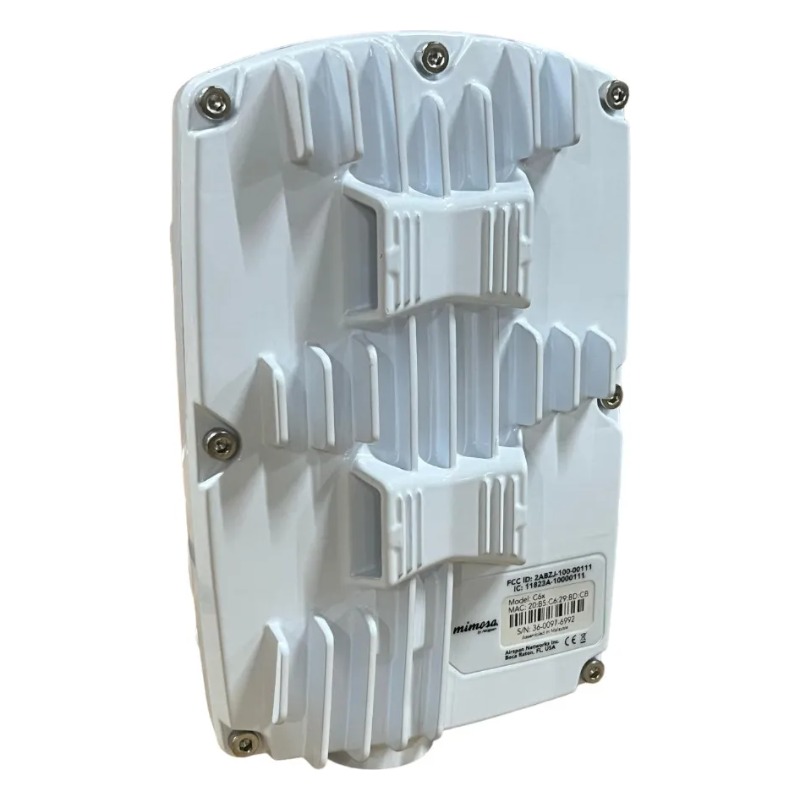

Dual-pole strap capable |
|
Grounding |
Ground lug |
|
Environmental |
|
Outdoor Ingress Protection Rating |
IP67 |
|
Operating Temperature |
-40° C to + 55° C |
|
Operating Humidity |
5 to 100% Condensing |
|
Operating Altitude |
4,420 m maximum |
|
Shock and Vibration |
ETS 300-019-2-4 calss 4M5 |
|
Features |
|

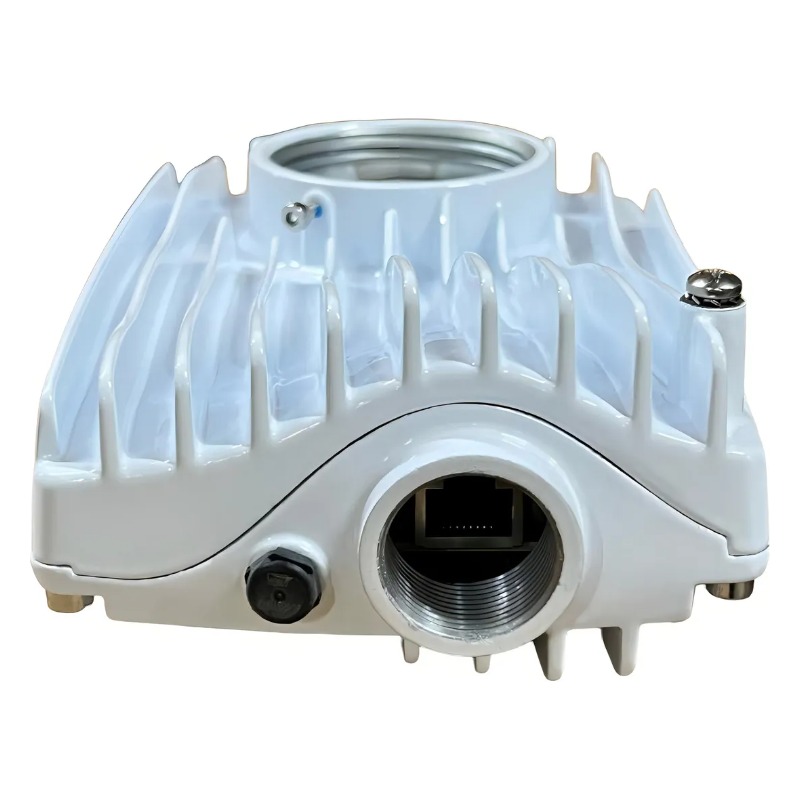

Gigabit Ethernet |
10/100/1000-BASE-T |
|
Management Services |
MMP support; SNMPv2c/v3; Syslog; HTTPS; HTML 5 based Web GUI; IPv4 and IPv6 |
|
Smart Spectrum Management |
Active scan monitors/logs ongoing RF interference across all channels
Dynamic auto-optimization of channel and bandwidth use |
|
Security |
AES; RADIUS; 802.1x authorization (future) |
|
VLAN |
Q-in-Q (future), double tagging, management VLAN, PTMP per client VLAN |
|
Regulatory and Compliance |
|
Approvals |
FCC Part 15.407; IC RSS210; CE (RED, EMCD, VLD, RoHS); ETSI 301 893/302 502 |
|
RoHS Compliance |
Yes |
|
Safety |
EN 62638-1 |
|
Part Number |
100-00111 |
| Package Contents: |
|---|
| 1 x C6x
|
| 1 x User Guide
|
| 2 x Hose Clamps
|
| 0 x Without PoE Adapter |
|
