Aerial.net :: Ubiquiti USW-Enterprise-8-PoE, UniFi Switch Enterprise 8 PoE

Ubiquiti » UniFi Switching » USW-Enterprise-8-PoE

Ubiquiti USW-Enterprise-8-PoE, UniFi Switch Enterprise 8 PoE

Price: 437,12€

Order or Qty		Price
> 500€	5+	432,74€
> 1000€	10+	428,37€
> 2000€	20+	424,00€
> 5000€	40+	419,63€
> 10000€	100+	415,26€

Prices exclude VAT

In Stock: 1

Order Qty:

Product Details
PID:	2913
SKU:	USW-Enterprise-8-PoE
UPC:	810010074775
Weight:	3.93 Kgs

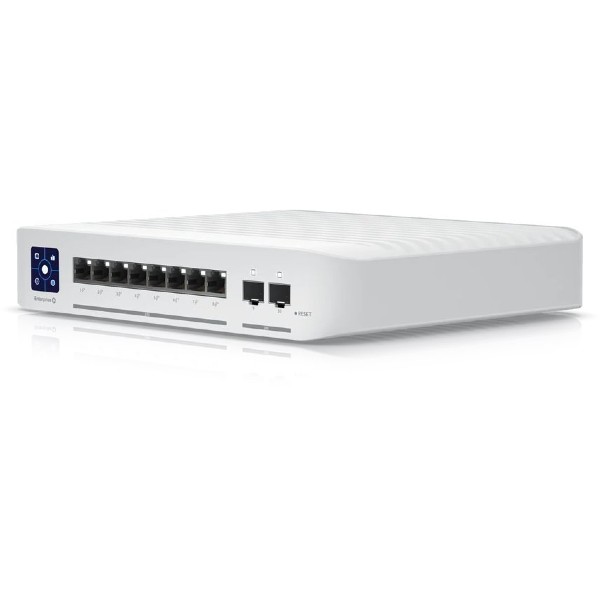

USW-Enterprise-8-PoE - Switch Enterprise 8 PoE

UniFi Switch Enterprise 8 PoE is a reliable manageable 2.5-Gigabit L3 Switch with a switching capacity of 80 Gbps, (8) 2.5-Gigabit LAN ports and two SFP+ (10 Gbps) slots.

All Ethernet ports support 802.3af/at PoE-Out with an output power of 30 W/port and a total PoE budget of 120 W.

In addition to the standard equipment, the switch also has a 1.3" touch screen for providing information about the system, temperature, port statistics, PoE power supply and much more.

The switch can be powered via standard 230 V and maximum power consumption is 150W.

Product Links:
Datasheet	Quick guide

Mechanical
Dimensions	200 x 248 x 44 mm
Weight	2.4 kg
Enclosure material	Polycarbonate
Mount material	Polycarbonate
Hardware
Total non-blocking throughput	40 Gbps
Switching capacity	80 Gbps
Forwarding rate	59.52 Mpps
Max PoE power	120W

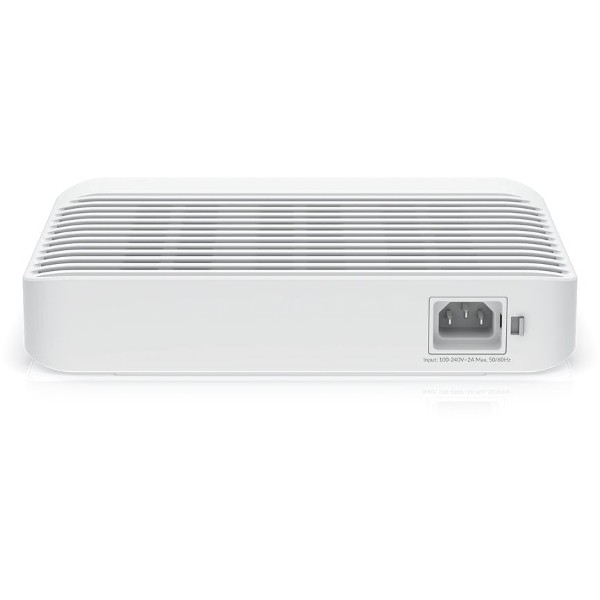

Power method	(1) 100—240V AC, 2A Max., 50/60 Hz, Universal input
Power supply	AC/DC, internal, 150W
Management interface	Ethernet In-Band

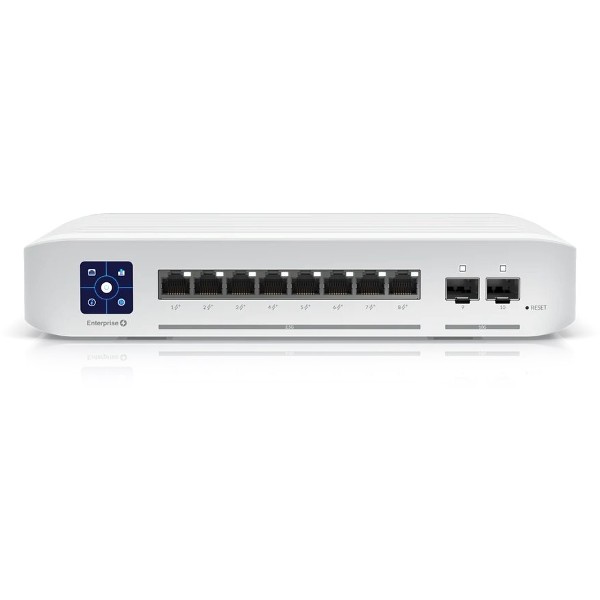

Networking interface	(8) 1/2.5 GbE RJ45
SFP+ Interface	(2) 1/10 Gbps SFP+
PoE interface	(8) PoE/PoE+ (Pins 1, 2+; 3, 6-)
Max. PoE+ wattage per port by PSE	32W
Voltage range PoE mode	44—57V
Voltage range PoE+ mode	50—57V
LCM Display	(1) 1.3" touchscreen Bootup animation: bootup in progress Firmware upgrade icon: firmware upgrading Steady white: factory defaults, awaiting adoption Steady blue: device is adopted
ESD/EMP protection	Air: ± 16 kV, contact: ± 12 kV
Operating temperature	-5°C to 45°C
Operating humidity	10 to 90% noncondensing
Certifications	CE, FCC, IC
LEDs
Ethernet	White: link/activity
SFP+	White: link/activity

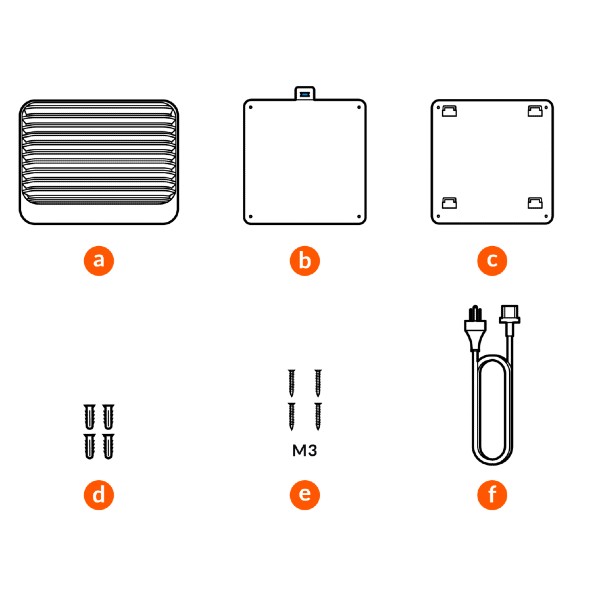

Package Contents:
1 x USW-Enterprise-8-PoE
1 x Wall mount KIT
1 x AC Cable - EU

Additional Images:

Return for:
Refund:	Store Credit:	Repair:
20 day(s)	40 day(s)	24 month(s)
