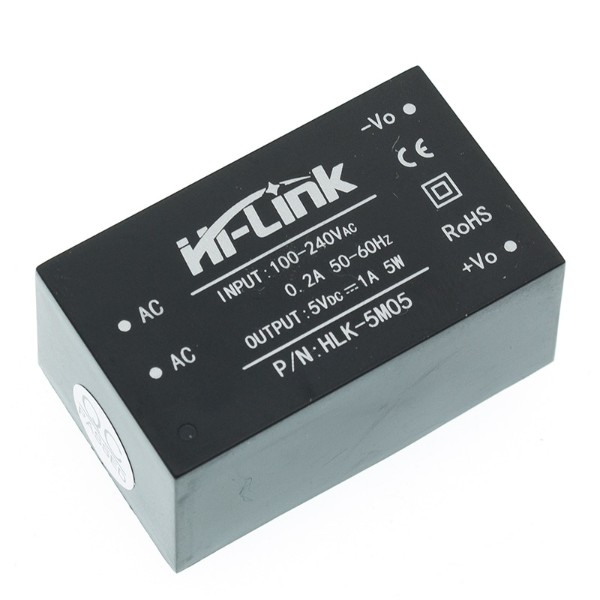

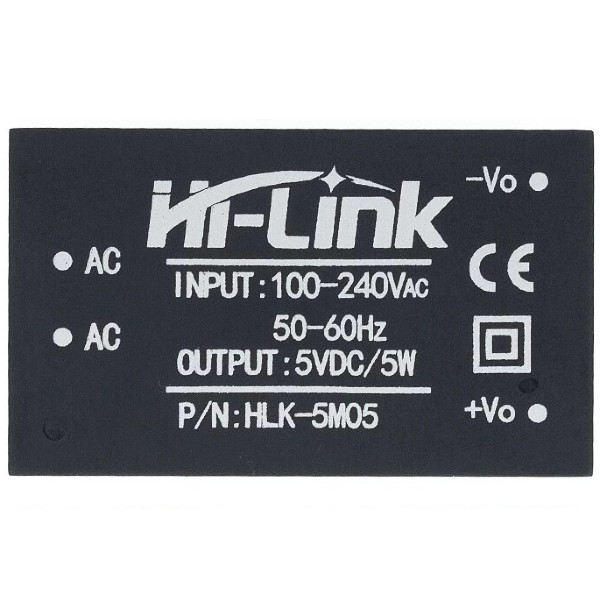

HLK-5M05 90-240V AC to 5V 5W DC mini power supply module

Product features:

Wide input (AC: 90 ~ 264V)
DC voltage output 5v
Low ripple and low noise
Output overload and short circuit protection
High efficiency, high power density
Designed to meet the requirements of EMC and Safety Test
Low power consumption, environmental protection, no-load loss <0.1W Meet UL, CE requirements

Specifications:
Rated input voltage	100-240 VAc
Input voltage range	90-264 VAc
Maximum input current	≤0.2 A
Input current surge	≤10 A
maximum input voltage	≤270VAc
Enter slow start	≤50 mS
Input Low Voltage Efficiency	Vin=110VAc，Output full-load≥69 %
Input High Voltage Efficiency	Vin=220VAc，output full-load≥70 %
Long-term reliability	MTBF≥100.000 Hours
Load rated output voltage	+5±0.1 VDC
Full rated output voltage	+5±0.2 VDC
Short-term maximum output current	≥1000 mA
The maximum output current for a long time	≥600 mA
Voltage Regulation	±0.2 %
Load Regulation	±0.5 %
Output ripple and noise	≤50 mVp-p
Switch overshoot amplitude	(Rated input voltage and output load plus 10%) ≤ 5 %VO
Output over-current protection	150-200% of the output maximum load A
