LOLIN D1 mini v4 TYPE-C 4MB module
[2944][D1_mini_v4]
Price: 2,10€
 Order or Qty  Price
 > 500€  5+   2,06€
 > 1000€  10+   2,02€
 > 2000€  20+   1,97€
 > 5000€  40+   1,93€
 > 10000€  100+   1,89€
Prices exclude VAT

LOLIN D1 mini v4 TYPE-C 4MB module

In Stock: 6
Order Qty:
UPC:728615665970

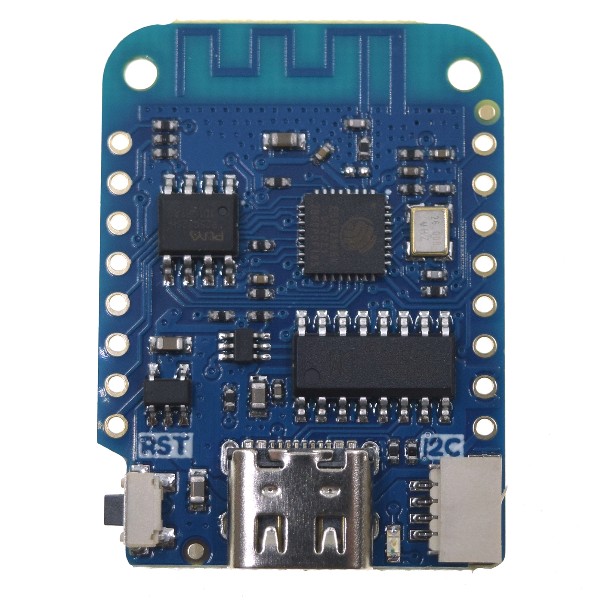

LOLIN D1 mini - A mini wifi board with 4MB flash based on ESP-8266EX

Features

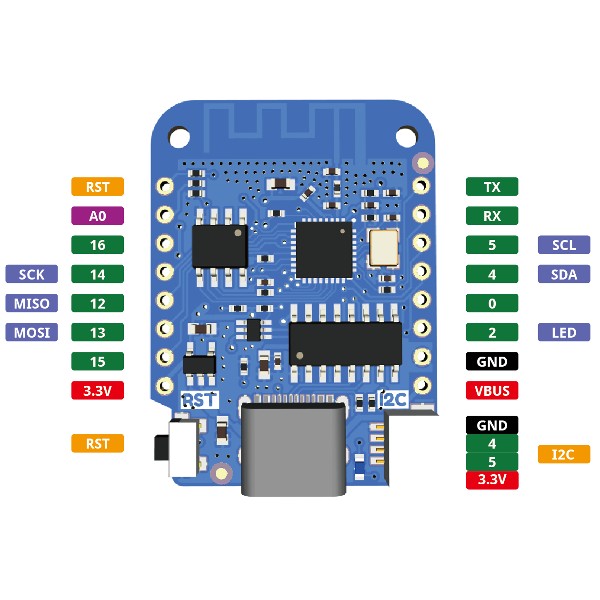

  • 11 digital IO, interrupt/pwm/I2C/one-wire supported(except D0)
  • 1 analog input(3.2V max input)
  • Type-C USB Port
  • LOLIN I2C Port
  • Compatible with MicroPython, Arduino, nodemcu

Specifications:
Operating Voltage 3.3V
Digital I/O Pins 11
Analog Input Pins 1(3.2V Max)
Clock Speed 80/160MHz
Flash 4M Bytes
Size 34.2*25.6mm
Weight 3g


Additional Images:

Return for:
Refund: Store Credit: Repair:
20 day(s) 40 day(s) 12 month(s)
