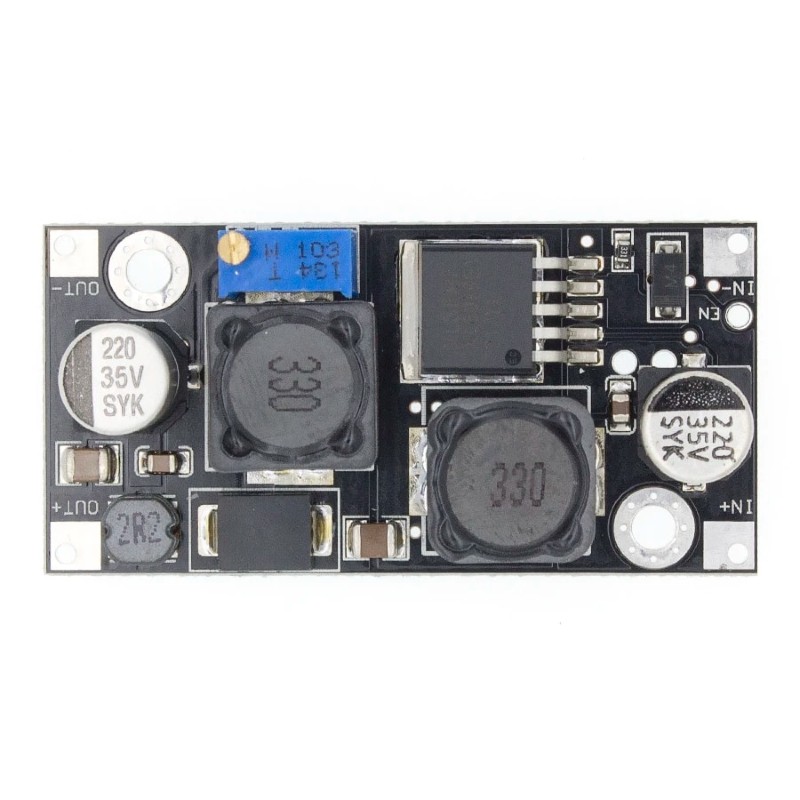

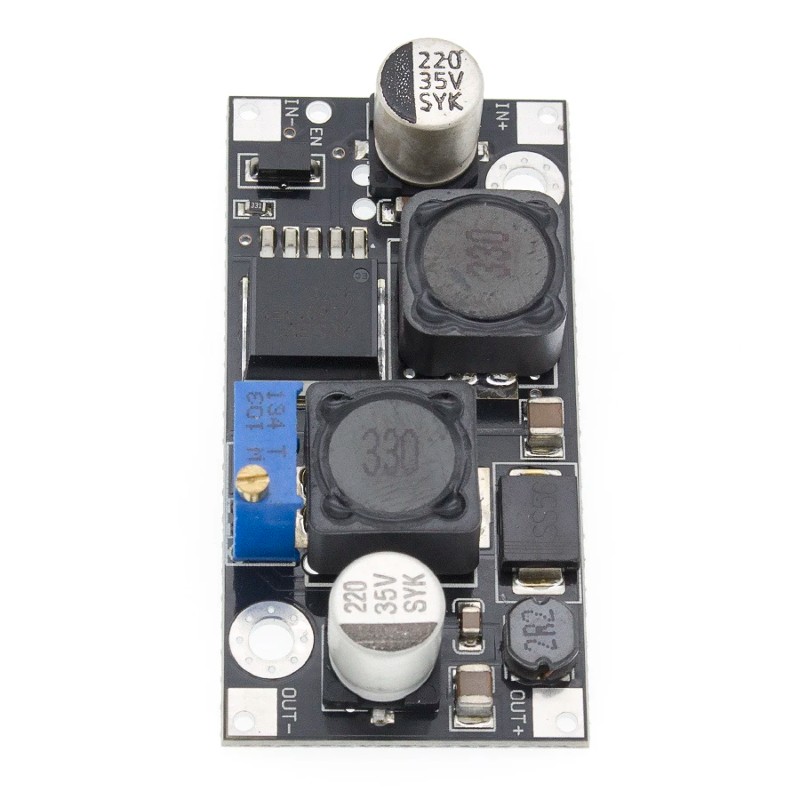

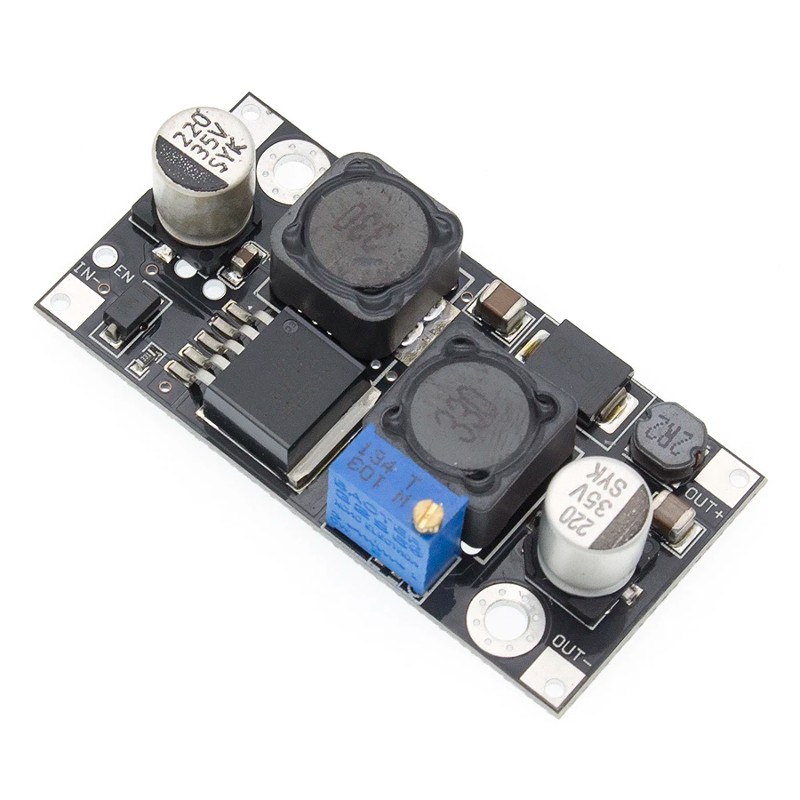

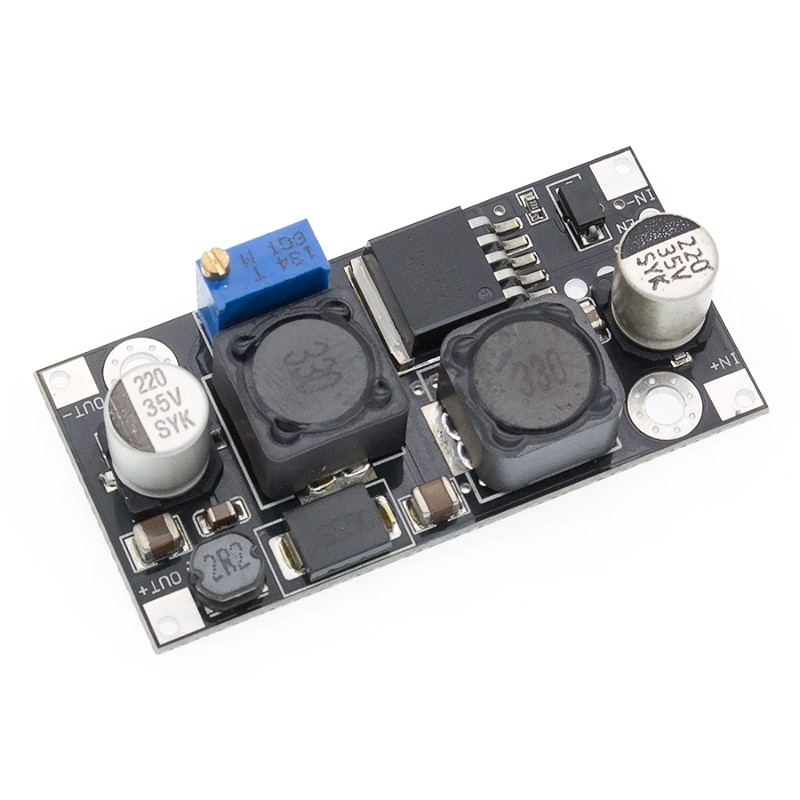

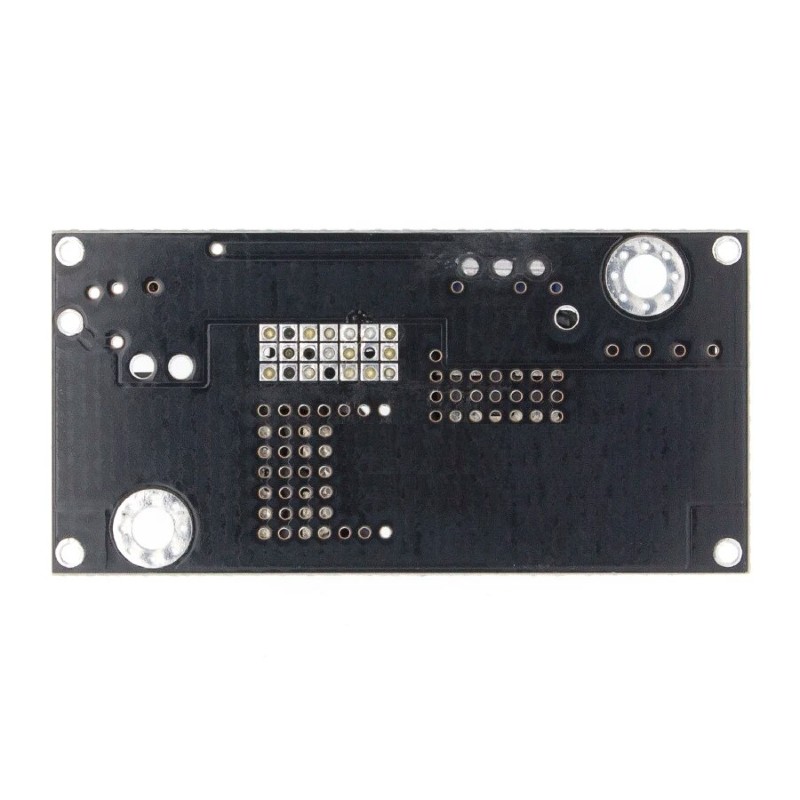

XL6019 module is DC-DC boost switching power supply module, use the conventional topology fully integrated constant pressure boost output, the output voltage can change within 5 to 35 V.
Its conversion efficiency is up to 90%. This module is based on the XL-Semi XL6019IC. The XL6019 regulator is a wide input range, current mode, DC/DC converter which is capable of generating either positive or negative output voltages.
It can be configured as either a boost, flyback, SEPIC or inverting converter. The XL6019 built in N-channel power MOSFET and fixed frequency oscillator, current-mode architecture results in stable operation over a wide range of supply and output voltages
XL6019 Module is upgraded version of the XL6009 Boost module.
|
Specifications |
|
Input voltage: |
3V-35V
|
|
Output Voltage: |
5V to 35V
|
|
Output current: |
rated current 2A, maximum 3A |
|
Conversion efficiency: |
Up to 92% |
|
Switching Frequency: |
180KHz |
|
Minimum dropdown voltage: |
2V |
|
Rectifier: |
Non-Synchronous Rectification |
|
Module Properties: |
Non-isolated step-down module |
|
Short circuit protection: |
current limiting, since the recovery |
|
Operating temperature: |
-40 ℃ to +85 ℃ |
|
Full load temperature rise: |
40 ℃ |
|
Load regulation: |
± 0.5% |
|
Voltage regulation: |
± 0.5% |
|
Dynamic response speed: |
5% 200uS |
|
Size： |
48mm *24 mm * 1.5mm |
