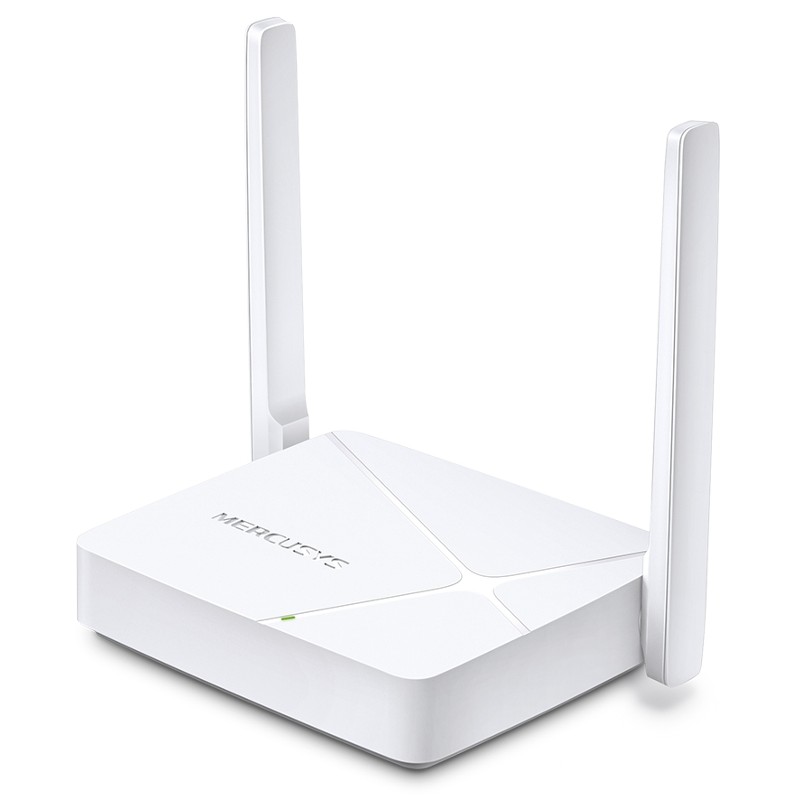

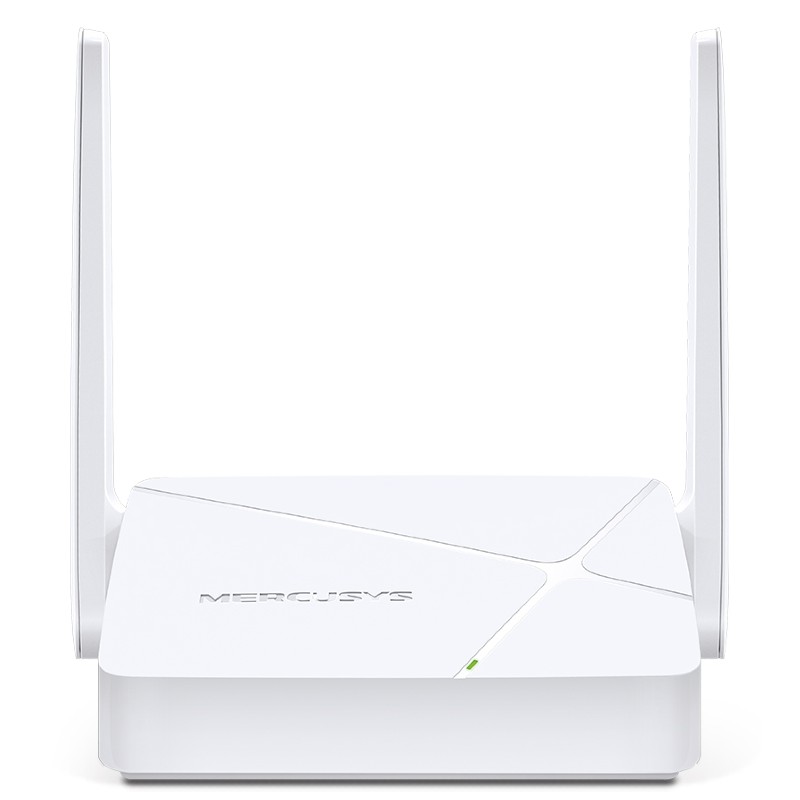

MR20 - AC750 Wireless Dual Band Router
AC750 Dual Band WiFi – Enjoy home entertainment without any lag, reaching speeds up to 750 Mbps (433 Mbps on the 5 GHz band and 300 Mbps on the 2.4 GHz band)
Broader Coverage – 2× high-gain external antennas boost stable omnidirectional connections throughout your home for strong WiFi signals in every corner

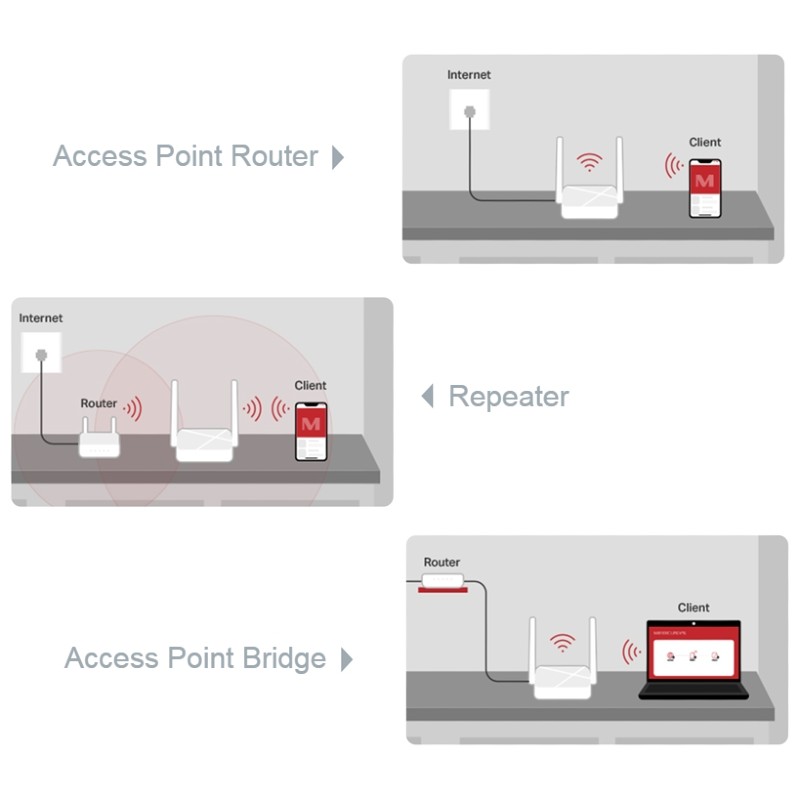

Multi-Mode — Router mode, Access Point Mode, and Range Extender mode in one device to satisfy all application scenarios
Easy installation — Intuitive webpage guides you through the setup process in minutes
Easily Manage Your Home Network – Varied software functions such as Parental Controls, QoS, and Guest Network for safety and effectiveness
IPTV and IPv6 Supported
|
Specifications: |
|
WiFi 5 Speeds |
11ac/a/b/g/n
300 Mbps (2.4 GHz) + 433 Mbps (5 GHz),
|
|
Rx Sensitivity |
2.4G
11g 6Mbps: -94dBm
11g 54Mbps: -77dBm
11n HT40 MCS7:-73dBm
11n HT20 MCS7:-76dBm
5G
11a 6Mbps:-93dBm
11a 54Mbps:-75dBm
11ac VHT20 MCS8:-70dBm
11ac VHT40 MCS9:-65dBm
11ac VHT80 MCS9:-62dBm
|
|
Tx Power |
2.4 GHz < 20dBm (EIRP)
5 GHz < 23dBm (EIRP)
|
|
Wireless Security |
WPA-PSK / WPA2-PSK |
|
Software: |
|
Operating Modes |
Router
Repeater
Access Point |
|
WAN Type |
Dynamic IP/Static IP/PPPoE/L2TP/PPTP |
|
Management |
Access Control
Local Management
Remote Management
|
|
DHCP |
Server, DHCP Client List |
|
NAT Forwarding |
Port Forwarding, Port Triggering, UPnP, DMZ |
|
Firewall Security |
SPI Firewall, IP and MAC Address Binding |
|
Guest Network |
2.4 GHz Guest Network, 5 GHz Guest Network |
|
Hardware: |
|
|
Dimensions |
114 × 94 × 26 mm |
|

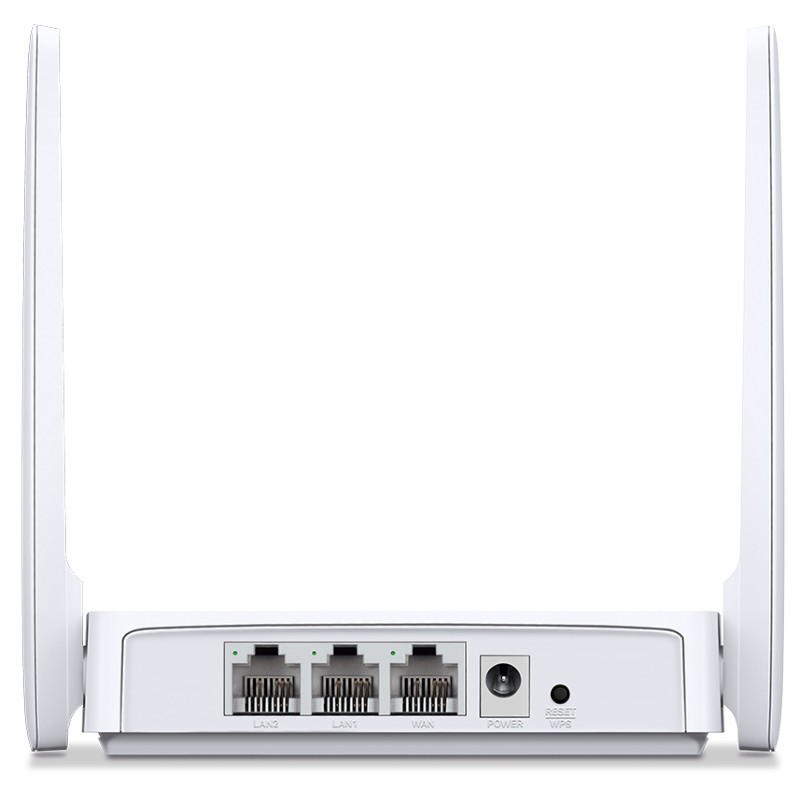

Interfaces |
1× 10/100 Mbps WAN Port, 2× 10/100 Mbps LAN Ports
|
|
Button |
Reset/WPS Button |
|
Antenna Type |
2× 5 dBi Fixed Omni |
|
Operating Temperature |
0°C~40°C |
|
Operating Humidity |
10%~90% Non-Condensing |
