Aerial.net :: Cudy FS1016D, 16-Port 10/100Mbps Desktop Switch

Indoor AP/Router/Switch » FS1016D

Cudy FS1016D, 16-Port 10/100Mbps Desktop Switch
[3060][FS1016D]

Price: 15,54€

Order or Qty		Price
> 500€	5+	15,38€
> 1000€	10+	15,23€
> 2000€	20+	15,07€
> 5000€	40+	14,92€
> 10000€	100+	14,76€

Prices exclude VAT

In Stock: 11

Order Qty:

EAN:	6971690792787

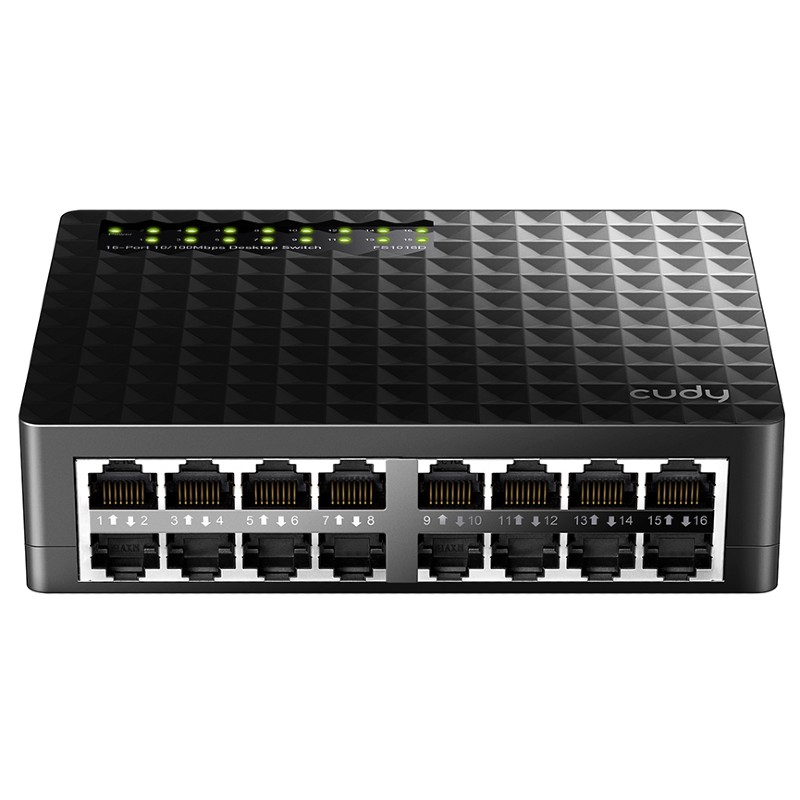

Cudy FS1016D - 16-Port 10/100Mbps Desktop Switch

Plug and play, hassle-free, no configuring is required. Auto MDI/MDIX eliminates the need for crossover cables. Auto-negotiation on each port detects the link speed of a network device (10/100Mbps) and intelligently adjusts for compatibility and optimal performance.

Auto-negotiation RJ-45 ports can provide large file transferring and also be compatible with any 10/100Mbps Ethernet devices.

Featuring non-blocking switching architecture, the product forwards and filters packets at full wire-speed for maximum throughput.

IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode offer increased bandwidth to alleviate network congestion, making the switch work reliably.

Product Links:
Datasheet

Specifications:
Model	FS1016D
Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Protocol	CSMA/CD
Data Rate	Ethernet: 10Mbps (Half Duplex)/20Mbps (Full Duplex) Fast Ethernet: 100Mbps (Half Duplex)/200Mbps (Full Duplex)
Transmission Method	Store-and-Forward
Switching Features	MAC address auto-learning and auto-aging Half and Full Duplex 1.6Gbps backplane bandwidth
Interfaces	16 x 10/100Base-TX Port
LED Indicators	LAN~LAN16, Power
MAC Address Table	4K entries per device
Power Supply	DC 5V 0.5A
Dimensions WDH	138mm x 103mm x 35 mm
Weight	228g
Operating Temperatur	0°C~40°C
Storage Temperature	-40°C~70°C
Relative Humidity	10%~90%, non-condensing
Storage Humidity	5%~95%, non-condensing

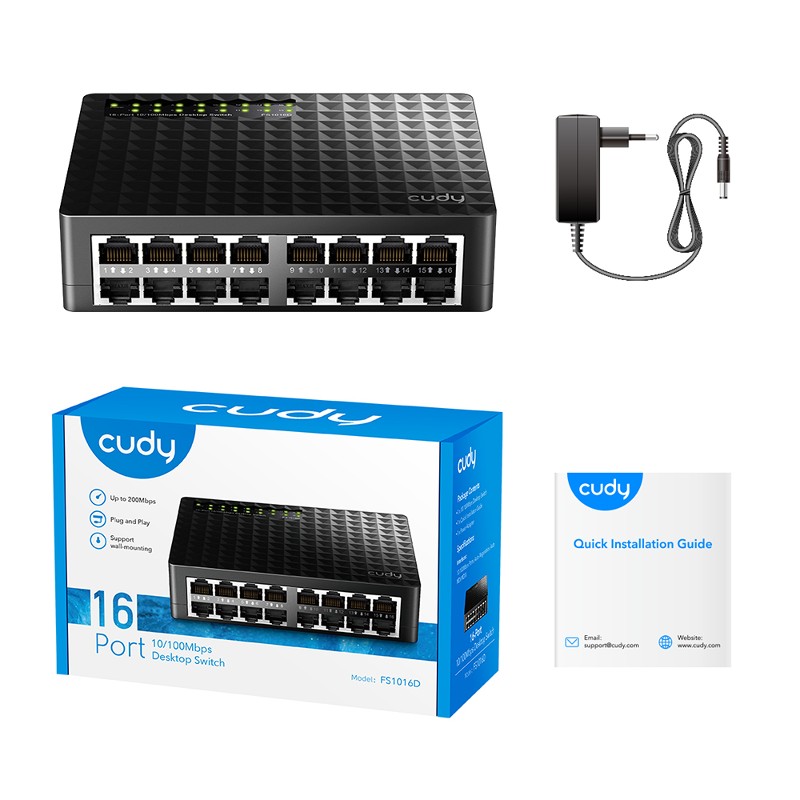

Package Contents:
1 x FS1016D
1 x 5v 1.0A Power Supply
1 x Installation Guide

Additional Images:

Return for:
Refund:	Store Credit:	Repair:
20 day(s)	40 day(s)	24 month(s)
