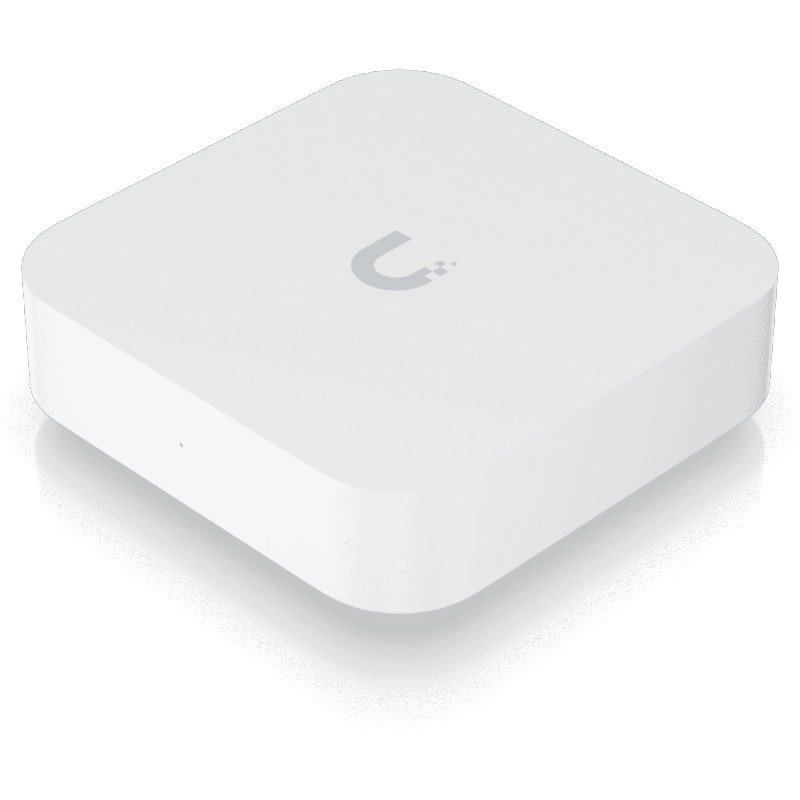

UXG-Lite, Gateway Lite
A compact and powerful UniFi gateway with a full suite of advanced routing and security features.
Up to 10x routing performance increase over USG (tested with IPS/IDS, QoS, and Smart Queues) Managed with a CloudKey, Official UniFi Hosting, or UniFi Network Server
-
(1) GbE WAN port
-
(1) GbE LAN port
-
Compact footprint
-

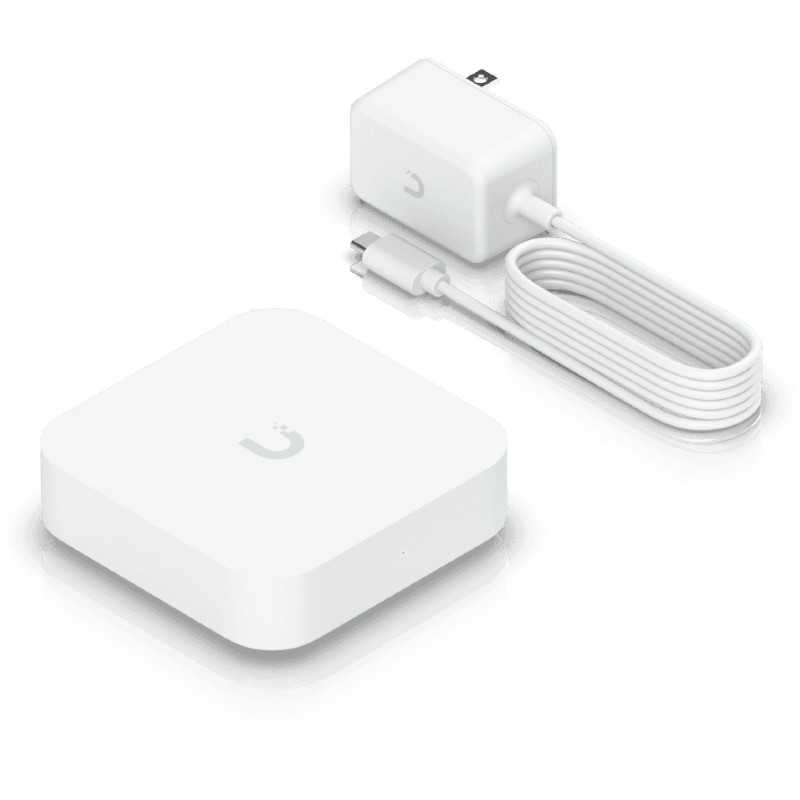

USB-C powered (adapter included 3Α)
-
Managed with UniFi Network 8.0.7 and later
|

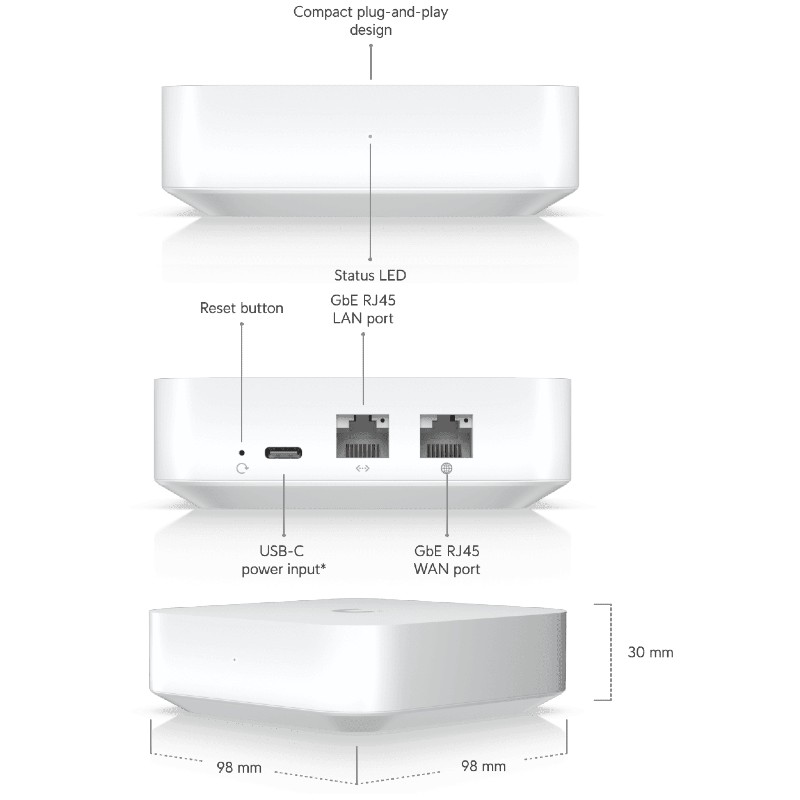

Mechanical |
|
Dimensions |
98 x 98 x 30 mm |
|
Weight |
320 g |
|
Enclosure materials |
Polycarbonate |
|
Hardware |
|
Processor |
Dual-core ARM® Cortex®-A53 at 1 GHz |
|
Memory information |
1 GB DDR3L |
|
Management interface |
Ethernet
Bluetooth 5.1 |
|
Networking interface |

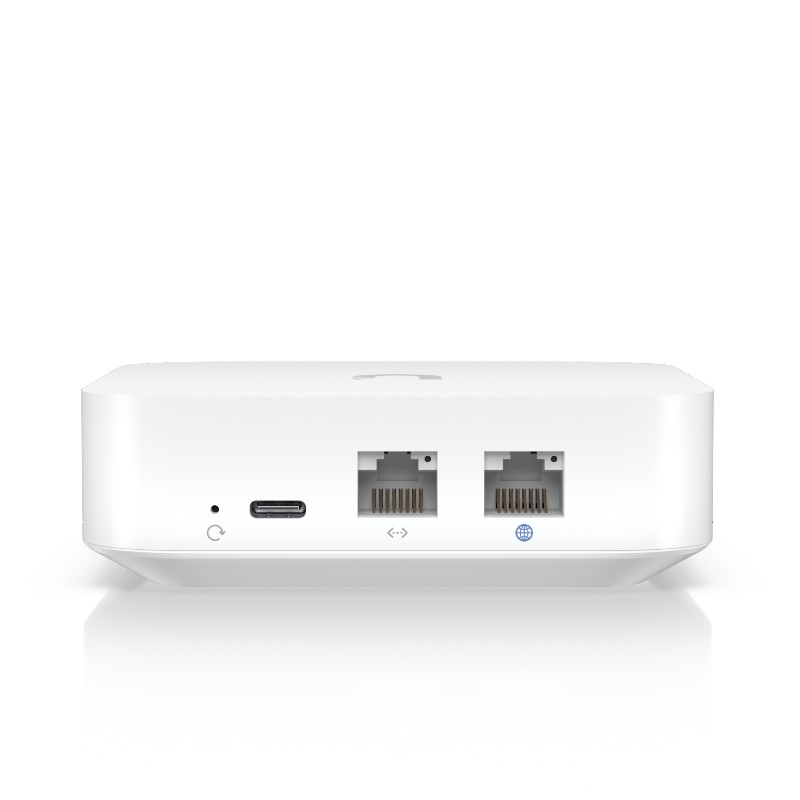

(1) GbE RJ45 WAN port
(1) GbE RJ45 LAN port |
|
Power method |
USB type C (5V/3A) |
|
Supported voltage range |
100–240V |
|
Max. power consumption |
3.83W |
|
Operating temperature |
-10°C to 40°C |
|
Operating humidity |
5 to 95% noncondensing |
|
Certifications |
CE, FCC, IC |
|
Gateway Features |
|
Performance |
WiFi QoS with UniFi APs
Application, domain, and country-based QoS
Application and device type identification
Additional internet failover with LTE Backup
Internet quality and outage reporting |
|
Next-generation security |
Application-aware firewall rules
Signature-based IPS/IDS threat detection
Content, country, domain, and ad filtering
VLAN/subnet-based traffic segmentation
Full stateful firewall |
|
Advanced networking |
License-free SD-WAN*
WireGuard, L2TP and OpenVPN server
OpenVPN client
OpenVPN and IPsec site-to-site VPN
One-click Teleport* and Identity Enterprise VPN**
Policy-based WAN and VPN routing
DHCP relay
Customizable DHCP server
IPv6 ISP support
*When paired with a Cloud Key or Official UniFi Hosting.
**When paired with a Cloud Key. |
