U-PoE++ - Gigabit 802.3++ PoE Injector 48v/1.25A (60W) - Wihte
Ubiquiti PoE Adapters provide a variety of features to help protect your PoE devices:
Electrostatic discharge (ESD) is the leading cause for outdoor device failures. You can effectively protect against ESD damage
-
Surge protection
-
Clamping protection
-
Maximum surge discharge
-
Peak pulse current
-
AC cable with earth ground
|
Powering |
Mode |
(+)Pins |
(-)Pins |
|
4-Pair |
A + B |
1,2,4,5 |
3,6,7,8 |
|
Specifications: |
|
Model |
U-PoE++ |
|
Dimensions |
106 x 63 x 34 mm |
|
Weight |
210 g |
|
Output voltage |
48V DC @ 1.25A |
|
LAN activity indicator |
No |
|
Gigabit LAN port |
Yes |
|
Remote reset capability |
No |
|
Reset button |
No |
|
Rated voltage |
100—240V AC @ 50/60Hz |
|
Input current |
1.3A @ 120V AC
0.75A @ 230V AC |
|
Inrush current |
<100A peak @ 120V AC
<200A peak @ 230V AC |
|
Efficiency |
85+% |
|
Output ripple |
1% max. |
|
Switching frequency |
65 kHz |
|
Line regulation |
≤ 1% |
|
Load regulation |
≤ 3% |
|
AC connector |
IEC-320 C6 |
|
Data In / PoE |
RJ45 shielded socket |
|
Surge protection |
Difference and common mode |
|
Clamping protection |
11V data, 60V power |
|
Max. surge discharge |
1500A (8/20 μs) power |
|
Peak pulse current |
36A (10/1000 μs) data |
|
Shunt capacitance |
<5 pF data |
|
Response time |
<1 ns |
|
Power method |
Universal AC input, 100—240V AC, 50/60Hz, (48V@ 1.25A) |
|
Power supply |
AC/DC |
|
Supported voltage range |
100—240V AC |
|
Max. PoE+ wattage per port by PSE |
60W |
|
Operating temperature |
0°C to 40°C |
|
Storage temperature |
-30°C to 70°C |
|
Operating humidity |
10 to 95% noncondensing |
|
Certifications |
CE, FCC, IC, UL, UKCA, KC, CCC, KC, RoHS |

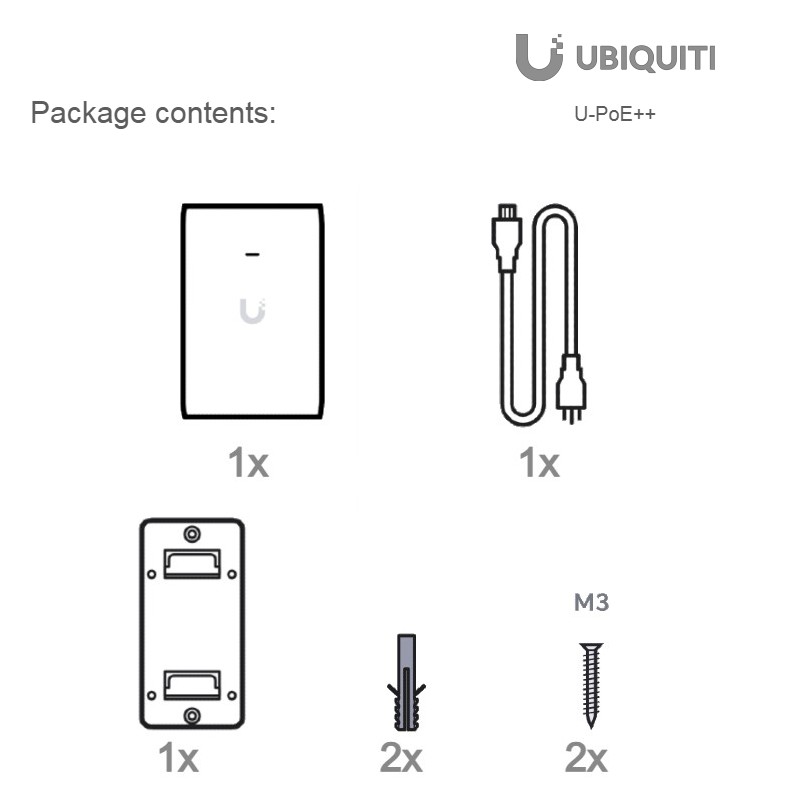

| Package Contents: |
|---|
| 1 x U-PoE++
|
| 1 x AC Cable EU, White
|
| 1 x Wall mount bracket |
|
