GNT-69P51G6 - 4 PoE out + 1 PoE in Port Gigabit Switch, 802.3af/at/bt
Gigabit PoE switch in a plastic chassis powered only via PoE, without management with 5x Gigabit ports.

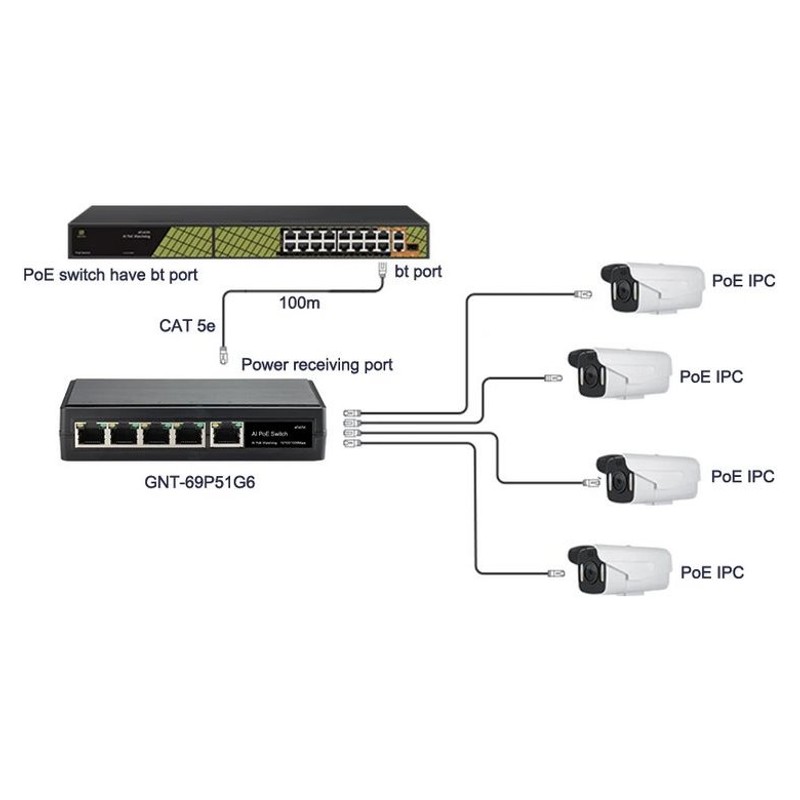

The device is intended for places without power supply and is suitable for power up to 4 devices (camera/Wi-Fi AP).

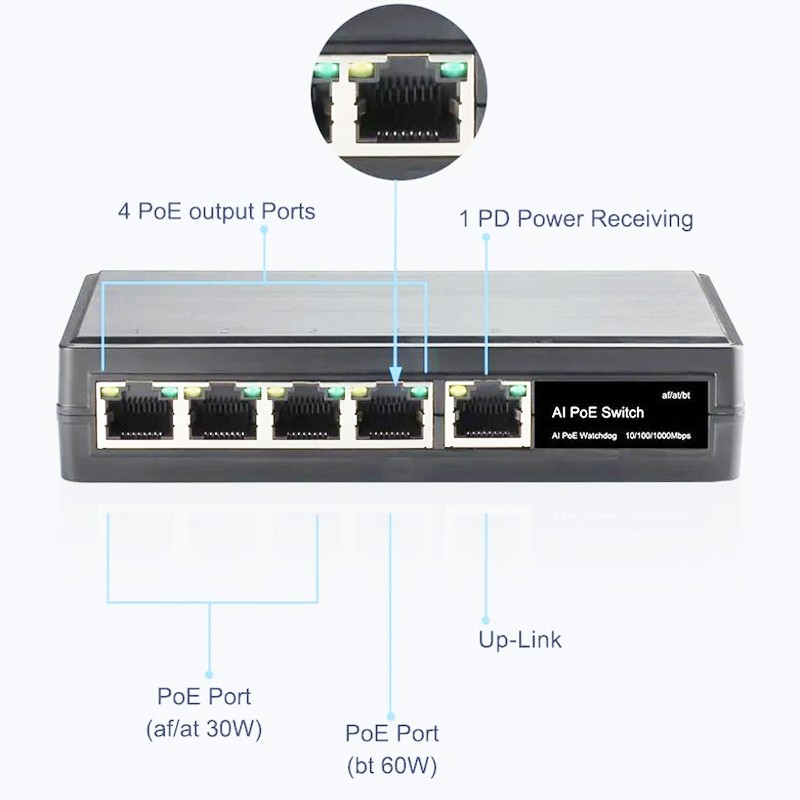

The Switch offers silent fanless operation, 5x 10/100/1000 Mbps of which 4 LAN ports support PoE function (802.3af/at, 30W/port, port No. 4 supports even 802.3af/at/bt - 60W/port)
Total PoE budget of 60W (depends on input power), low internal consumption and power only via PoE (802.3at/bt).
-
(5) 10/100/1000 Mbps LAN
-
Input power only via 802.3at/bt PoE
-

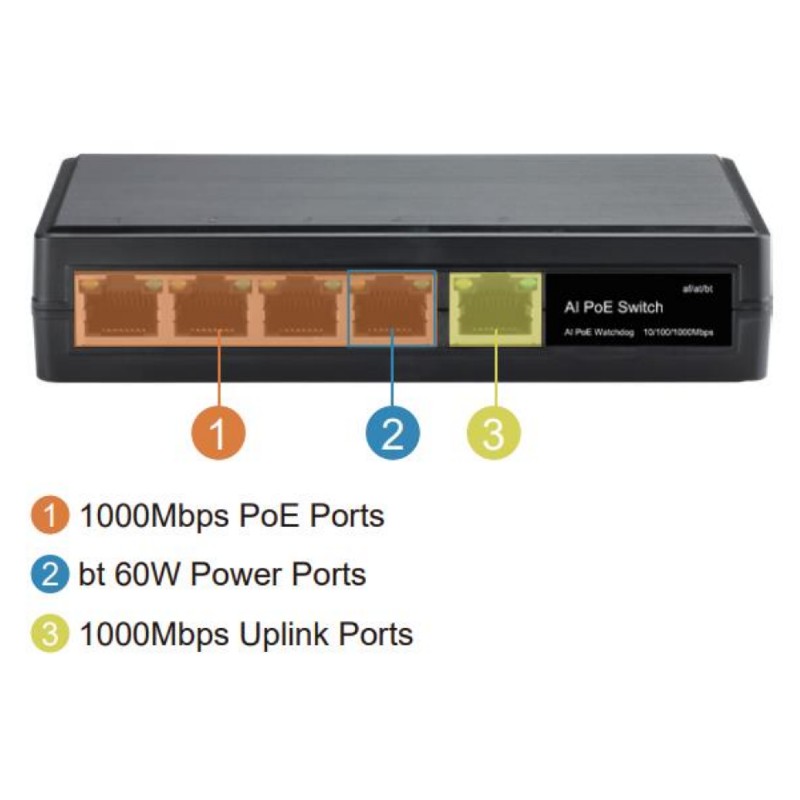

(3) 802.3af/at PoE (30W/port) + (1) 802.3af/at/bt PoE (60W/port)
-
PoE budget 60W
-
Decent plastic chassis
-
Silent operation without fans
-
PoE watchdog
-

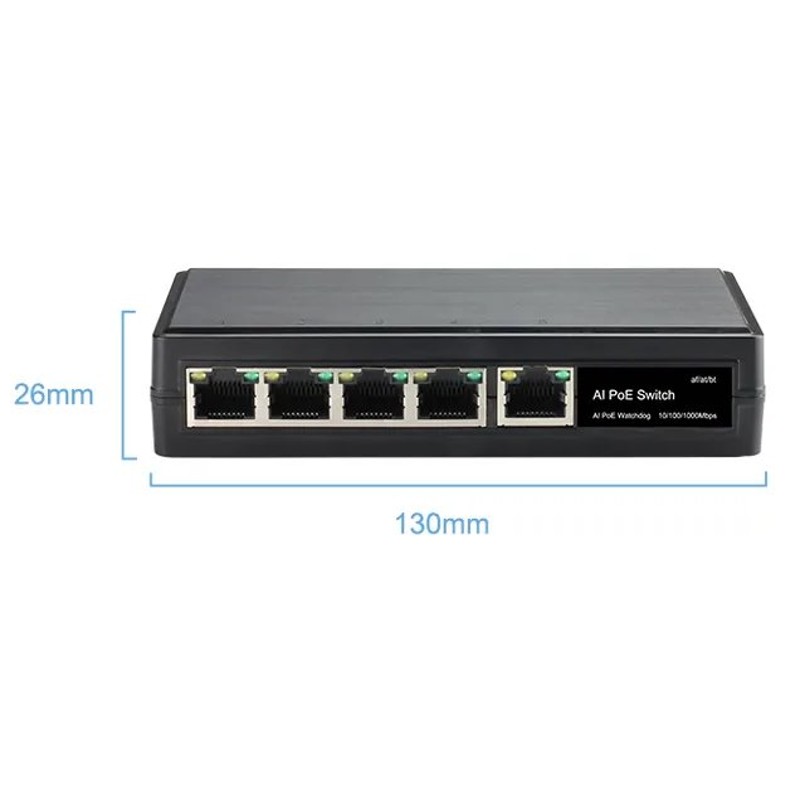

Dimensions 130 x 67 x 26mm
|
Specifications: |
|
LAN speed |
(5) 10/100/1000Mbps |
|
Power over Ethernet |
802.3at, 802.3bt |
|
Power type |
PoE |
|
PoE type |
PoE-Out + PoE-In |
|
PoE-Out standards |
802.3af, 802.3at, 802.3bt |
|
PoE Out ports |
4 |
|
PoE budget |
60W |
|
Max. power consumption |
60W |
|
Design |
Desktop |
|
Fans |
Without fan |
|
Chassis design |
Plastic |
|
Operating temperature |
-10°C up to 55°C |
|
Dimensions |
130 x 67 x 26mm |
|
MAC address table |
8000 |
|
Switchning capacity |
10Gbps |
