GNT-P9206EA - 6port (4 PoE+2 UpLink) 10/100M PoE switch 802.3af/at
Fast ethernet metal PoE switch without management with two uplink ports is the ideal PoE switch for households and family houses to power up to 4 devices (camera/Wi-Fi AP) with low consumption.
Switch offers quiet fanless operation, 6x 10/100 Mbps LAN of which 4 Ethernet ports support PoE function (802.3af/at, 30W/port, port no. 4 also supports 802.3af/at/bt - 60W/port)
Total PoE budget of 60W, low internal consumption and power supply via a 230V AC connector thanks to the built-in power supply.

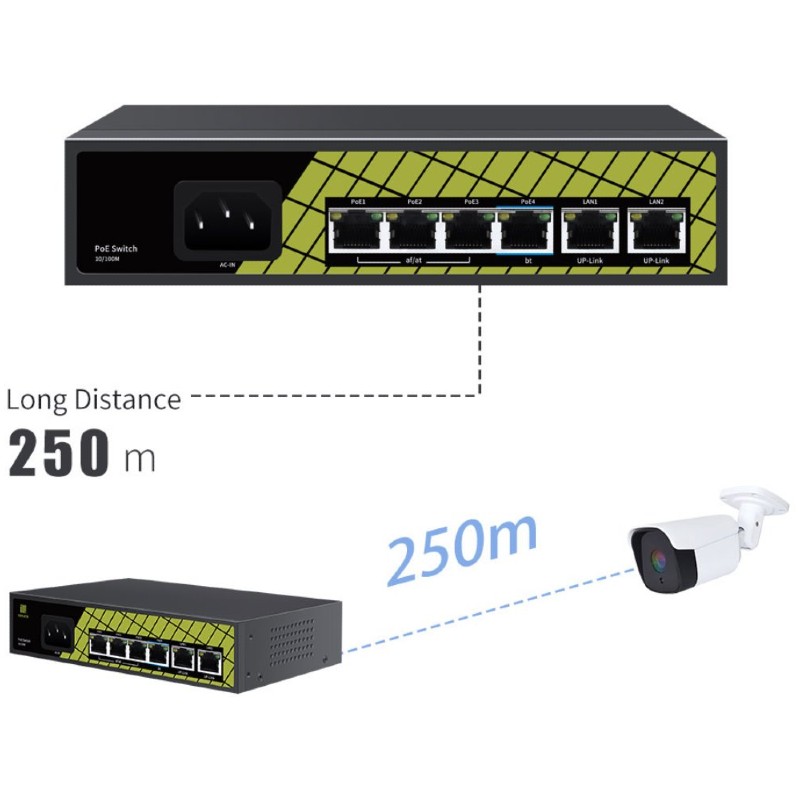

The Switch can power devices up to a distance of 250m while reducing the line speed to 10 Mbps.
-
(6) 10/100 Mbps LAN
-
230V AC power supply
-
(3) 802.3af/at PoE (30W/port) + (1) 802.3af/at/bt PoE (60W/port)
-
PoE budget 60W
-
Long range support - reach up to 250m
-

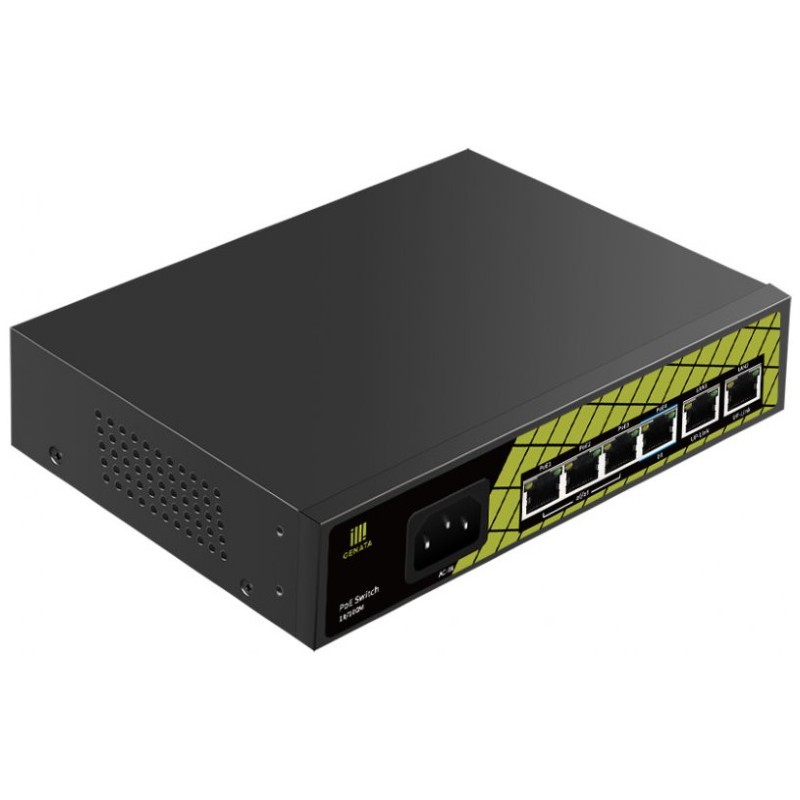

Robust metal chassis
-
Silent operation without fans
-
PoE watchdog
-
Dimensions 187 x 139 x 43mm
|
Specifications: |
|

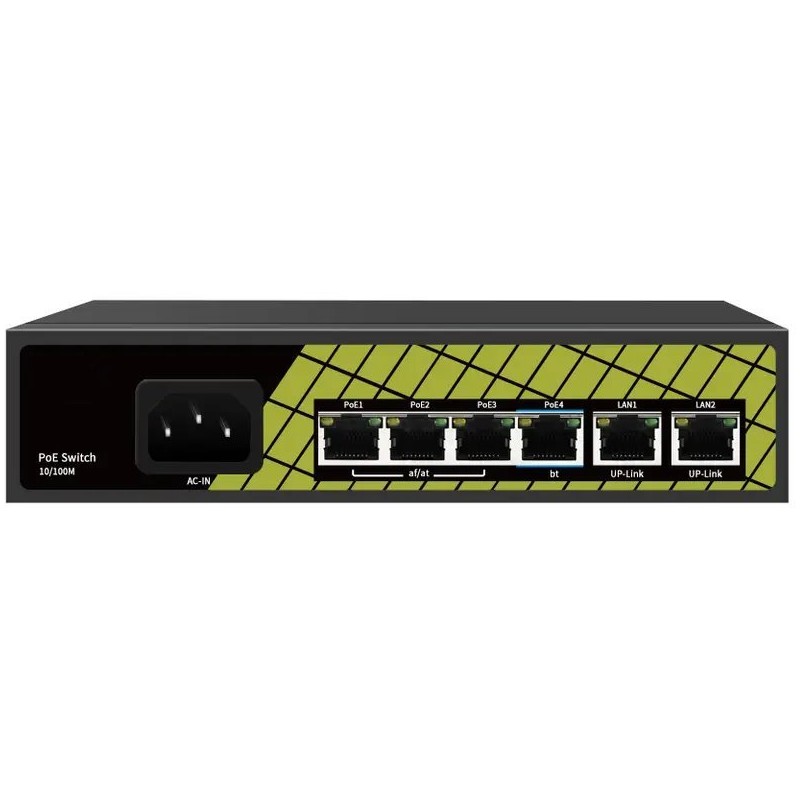

Ports |
PoE (1~3): 10/100Mbps PoE ports (RJ45)
PoE (4): 10/100Mbps PoE port (RJ45), Support bt 60W High Power
LAN (1~2): 10/100Mbps uplink ports (RJ45) |
|
Transmission Rate |
200Mbps Full Duplex; 10 or 100Mbps Half Duplex |
|
Transmission Distance |
100Mbps /10Mbps, Auto-Adaption 250m |
|
Performance Specification |
|
Bandwidth |
1.2Gbps |
|
Network Latency (10 to 100Mbps) |
<= 16μs (use the 64byte package size) |
|
MAC address table |
2K |
|
The Frame Filter & Transmission Rate |
14800pps the most for 10M port,
148800pps the most for 100M port |
|
Networking Standard |
IEEE 802.3i 10BASE-T
IEEE 802.3u 100BASE-TX
IEEE 802.3x Flow Control
IEEE 802.3af/at/bt Power over Ethernet |
|
Power Support |
|
Power Input |
AC 90~240V Total≤65W |
|
AI Watchdog |
Port 1~4 |
|
Power Output |
PoE1~3 Port: 1/2(+52V),3/6(GND)≤30W
PoE 4 Port: 1245(+53V),3678(GND) Compatible1/2(+52V),3/6(GND)≤60W |
|
Protection Level |
|
Lightning Protection |
6KV, Per: IEC61000-4-5 |
|
ESD Protection |
8KV, Per: IEC61000-4-2 |
|
Physical Specifications |
|

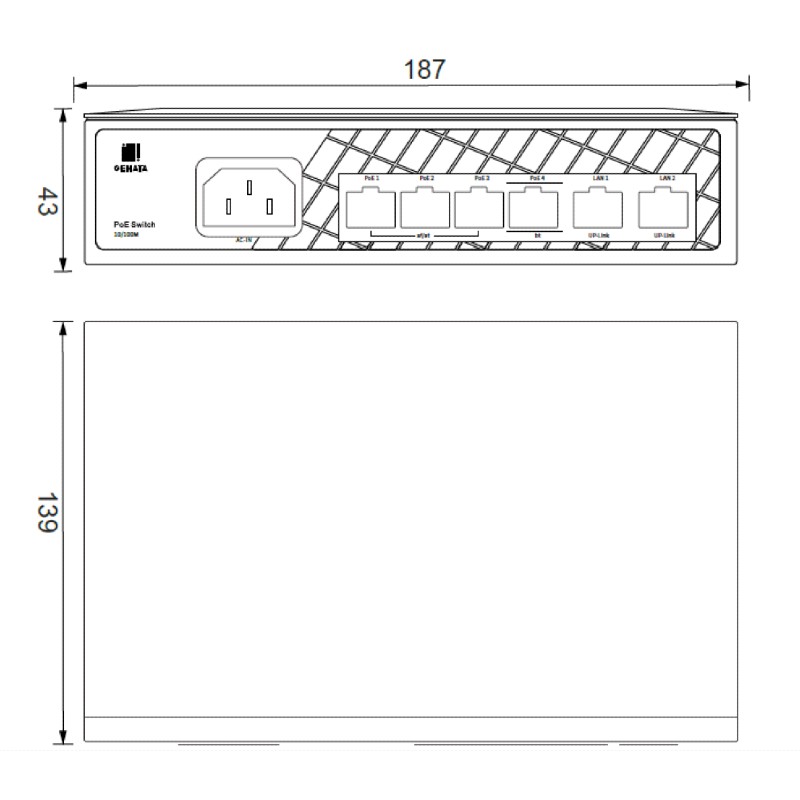

Size(L*W*H) |
187mm*139mm*43mm |
|
Weight |
1.0KG |
|
Working Environment |
|
Operating Temperature |
-30℃~60℃ |
|
Storage Temperature |
-40℃~70℃ |
|
Operating Humidity |
10%~90% Non-condensing |
|
Storage Humidity |
5%~90% Non-condensing |
|
Certification |
|
CE Mark |
|
|
FCC Part15, Class B |
|
|
RoHS 2.0 |
|
|
Package Content |
|
AC Power Cable |
|
|
User Manual |
|
| Package Contents: |
|---|
| 1 x GNT-P9206EA
|
| 1 x AC Cable - EU |
|
