GNT-P9109EA - 9port (8 PoE +1 UpLink) 10/100M PoE switch 802.3af/at
Fast ethernet metal PoE switch without management with one uplink port is the ideal PoE switch for households and family houses to power up to 8 devices (camera/Wi-Fi AP) with low consumption.
Switch offers quiet fanless operation, 9x 10/100 Mbps LAN of which 8 Ethernet ports support PoE function (802.3af/at, 30W/port, port no. 8 also supports 802.3af/at/bt - 60W/port)
Total PoE budget of 120W, low internal consumption and power supply via a 230V AC connector thanks to the built-in power supply.

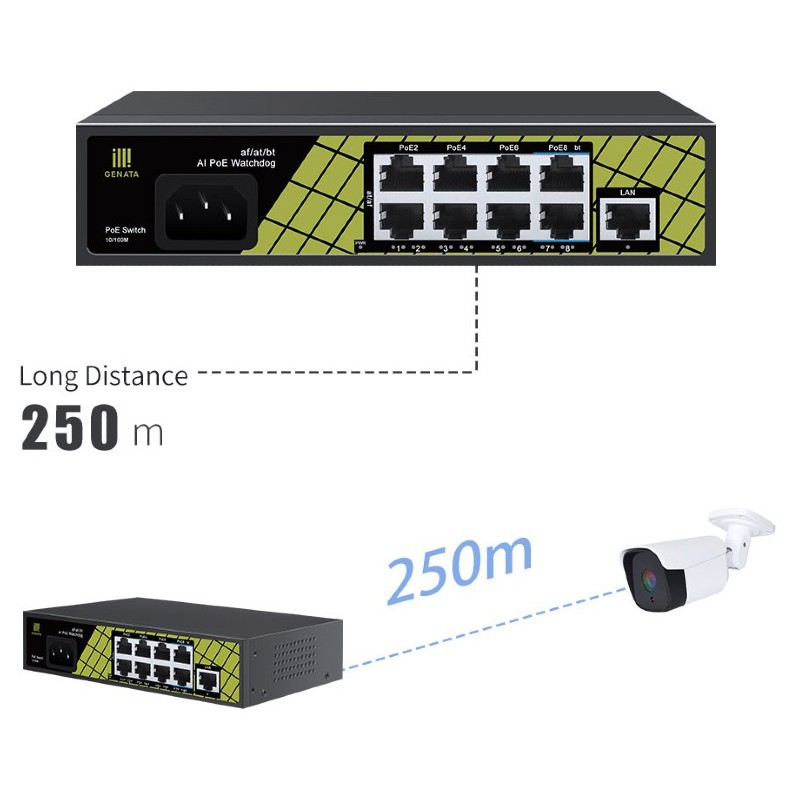

The Switch can power devices up to a distance of 250m while reducing the line speed to 10 Mbps.
-
(9) 10/100 Mbps LAN
-
230V AC power supply
-
(7) 802.3af/at PoE (30W/port) + (1) 802.3af/at/bt PoE (60W/port)
-
PoE budget 120W
-
Long range support - reach up to 250m
-
Robust metal chassis
-
Silent operation without fans
-
PoE watchdog
-

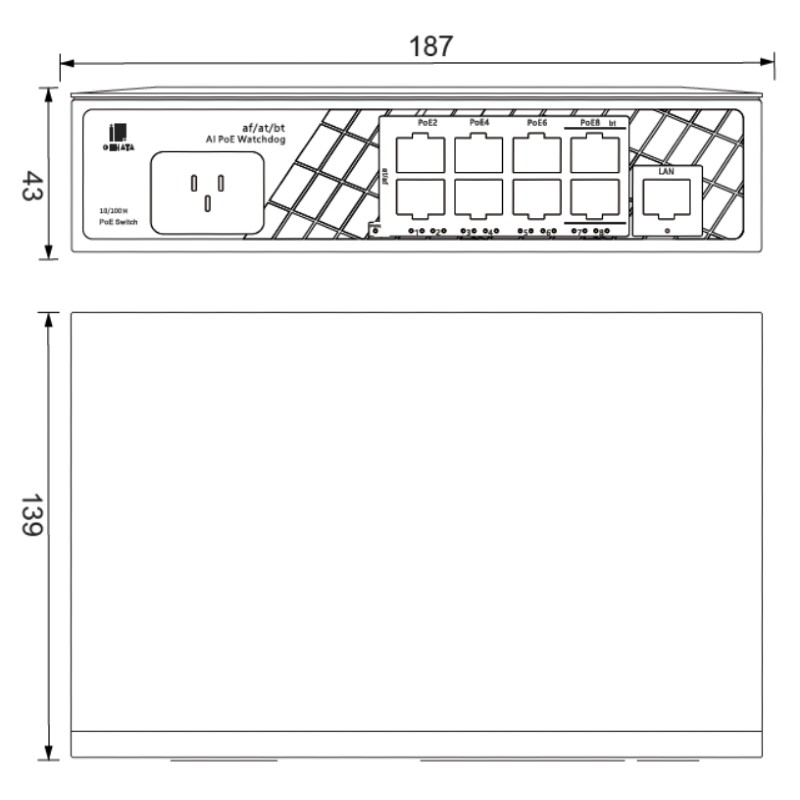

Dimensions 187 x 139 x 43mm
|
Specifications: |
|
LAN speed |
(9) 10/100Mbps |
|
Power type |
Mains power (230V) |
|
PoE type |
PoE-Out (only) |
|
PoE-Out standards |
802.3af, 802.3at, 802.3bt |
|
PoE Out ports |
8 |
|
PoE budget |
120W |
|
Long range PoE |
up to 250m |
|
Max. power consumption |
65W |
|
Power via connector/terminal |
230V AC |
|
Design |
On the wall, Desktop |
|
Fans |
Without fan |
|
Chassis design |
Metal |
|
Operating temperature |
-30°C up to 60°C |
|
Depth |
139x43x187mm |
|
MAC address table |
2000 |
|
Switchning capacity |
1.8Gbps |
