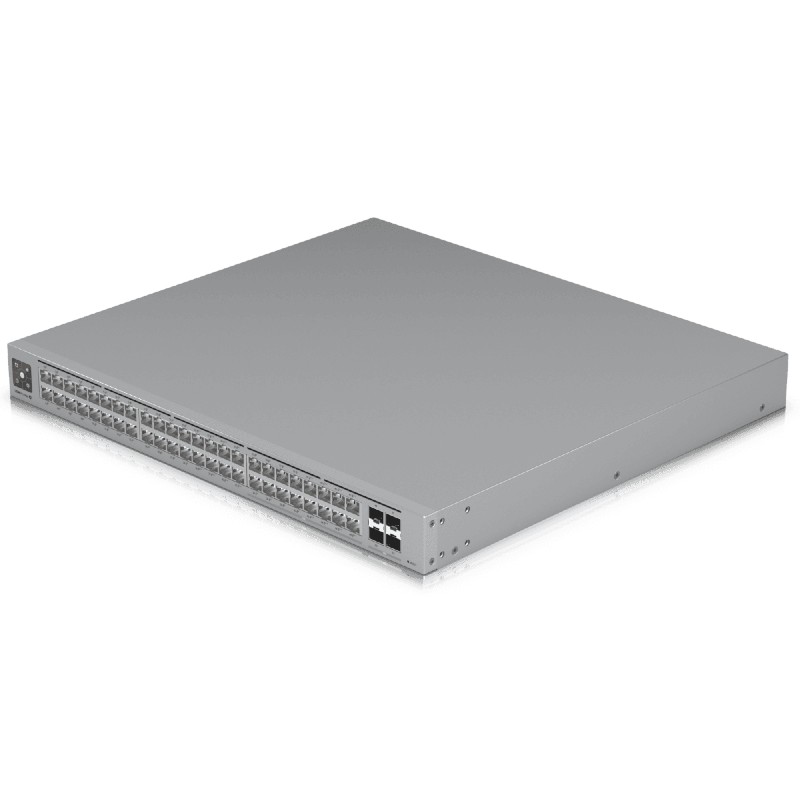

USW-Pro-Max-48-PoE - A 48-port, Layer 3 Etherlighting™ switch with 2.5 GbE and PoE++ output.
Etherlighting™ ports that illuminate to indicate port location, speed/link, and native VLAN/network*
-
(16) 2.5 GbE ports including (8) PoE+ and (8) PoE++
-
(32) GbE ports including (24) PoE+ and (8) PoE++
-
(4) 10G SFP+ ports
-
DC power backup ready
-
720W total PoE availability
-
Managed with UniFi Network 8.0.24 and later
*Pair with UniFi Etherlighting Patch Cables for optimal brightness.
|
Overview |
|
Dimensions |
442.4 x 400 x 44 mm |
|

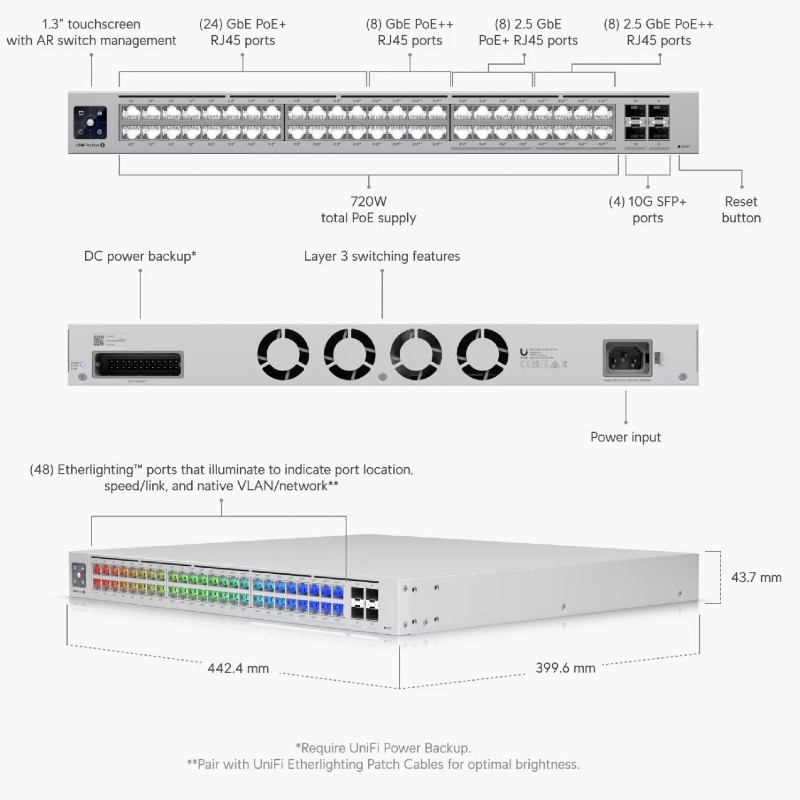

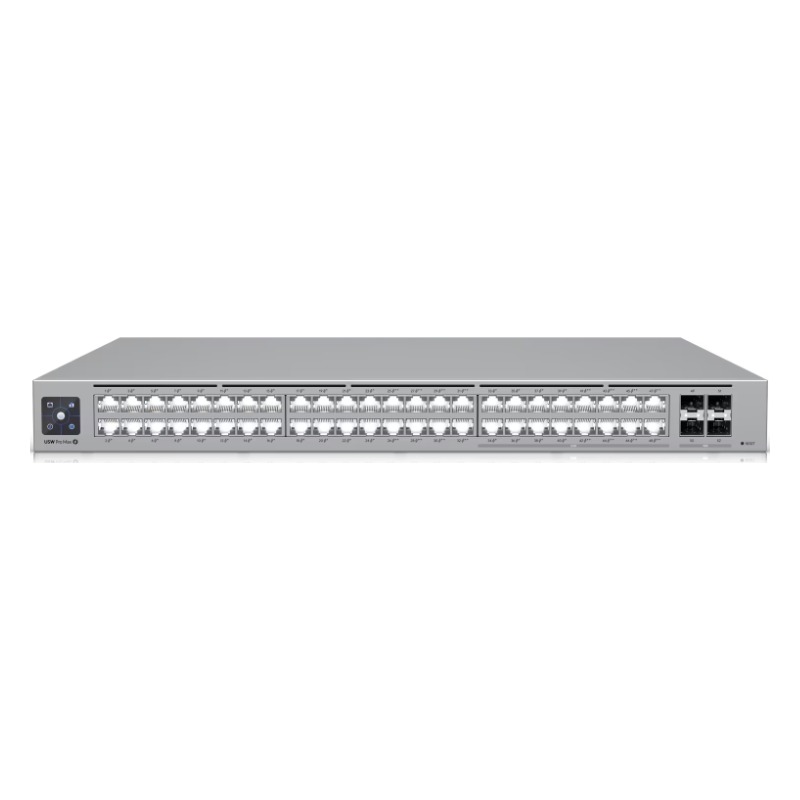

Port Layout |
-
1 GbE RJ45: 32 (24 PoE+; 8 PoE++)
-
2.5 GbE RJ45: 16 (8 PoE+; 8 PoE++)
-
10G SFP+: 4
|
|
Max. PoE Output |
Up to PoE++ |
|
Total PoE Availability |
720W |
|
Redundancy |
DC Power Backup |
|
Layer 3 |
✓ |
|
Form Factor |
Rack mount (1U) |
|
Etherlighting™ |
✓ |
|
Performance |
|
Switching Capacity |
224 Gbps |
|
Total Non-Blocking Throughput |
112 Gbps |
|
Forwarding Rate |
167 Mpps |
|
Supported VLANs |
1,000 |
|
MAC Address Table Size |
32,000 |
|
L3 Table Size |
-
ARP Entries: 12,000
-
IPv4 Routes: 12,000
|
|
Packet Buffer Size |
2 MB |
|
Access Lists |
|
|
Layer 3 Features |
|
DHCP Server (Local Networks) |
✓ |
|
DHCP Relay |
✓ |
|
Inter-VLAN Routing (Local Networks) |
✓ |
|
Static Routing (Local Networks) |
✓ |
|
Layer 2 Features |
|
LACP Port Aggregation |
✓ |
|
STP & RSTP |
✓ |
|
QoS (DSCP) |
✓ |
|
Pro AV Profiles |
✓ |
|
Advanced IGMP Configuration |
✓ |
|
IGMP Snooping |
✓ |
|
802.1X Control |
✓ |
|
MAC-Based ACLs & Device Isolation |
✓ |
|
DHCP Snooping & Guarding |
✓ |
|
Egress Rate Limit |
✓ |
|
Flow Control |
✓ |
|
Storm Control |
✓ |
|
Multicast & Broadcast Rate Limiting |
✓ |
|
MAC Address Blocking |
✓ |
|
IP-Based ACLs & Network Isolation |
✓ |
|
MAC-Based Port Restriction |
✓ |
|
Port Isolation |
✓ |
|
Port Mirroring |
✓ |
|
Jumbo Frames |
✓ |
|
LLDP-MED |
✓ |
|
Voice VLAN |
✓ |
|
Loop Protection |
✓ |
|
Hardware |
|
PoE Ports |
|
|
Max. PoE Wattage per Port by PSE |
-
PoE: 15.4W
-
PoE+: 32W
-
PoE++: 64W
|
|
Max. Power Consumption |
-
Excluding PoE Output: 100W
-
Including PoE Output: 820W
|
|

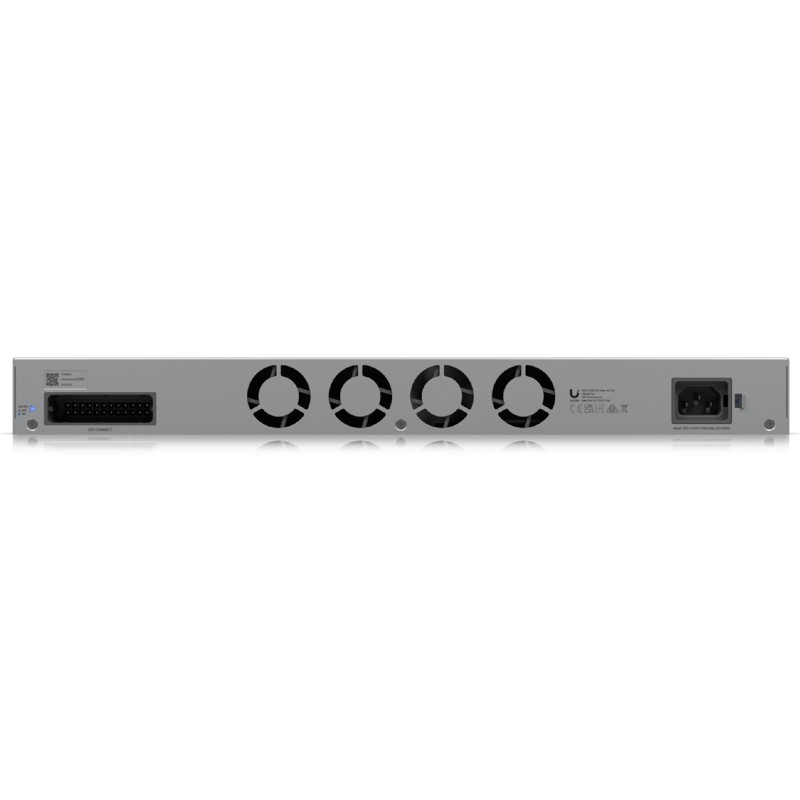

Power Method |
-
Universal input, 100—240V AC, 50/60 Hz
-
USP RPS DC input
|
|
Power Input Method |
AC input |
|
Power Supply |
AC/DC, internal, 870W |
|
Supported Voltage Range |
100—240V AC |
|
Management |
Ethernet, AR |
|
Heat Dissipation |
341.2 BTU/hr |
|
Weight |
-
Without mounting brackets: 6.2 kg
-
With mounting brackets: 6.3 kg
|
|
Enclosure Material |
SGCC steel |
|
Mount Material |
SGCC steel |
|
Supported Rack Depth |
400~1200 mm |
|
LCM Display |
1.3" touchscreen |
|
ESD Protection |
Air: ± 16kV, contact: ± 12kV |
|
Ambient Operating Temperature |
-5 to 40° C |
|
Ambient Operating Humidity |
10 to 90% noncondensing |
|
Etherlighting™ |
|
|
NDAA Compliant |
✓ |
|
Certifications |
CE, FCC, IC, Anatel |
|
Software |
|
Application Requirements |
UniFi Network, Version 8.0.24 and later |

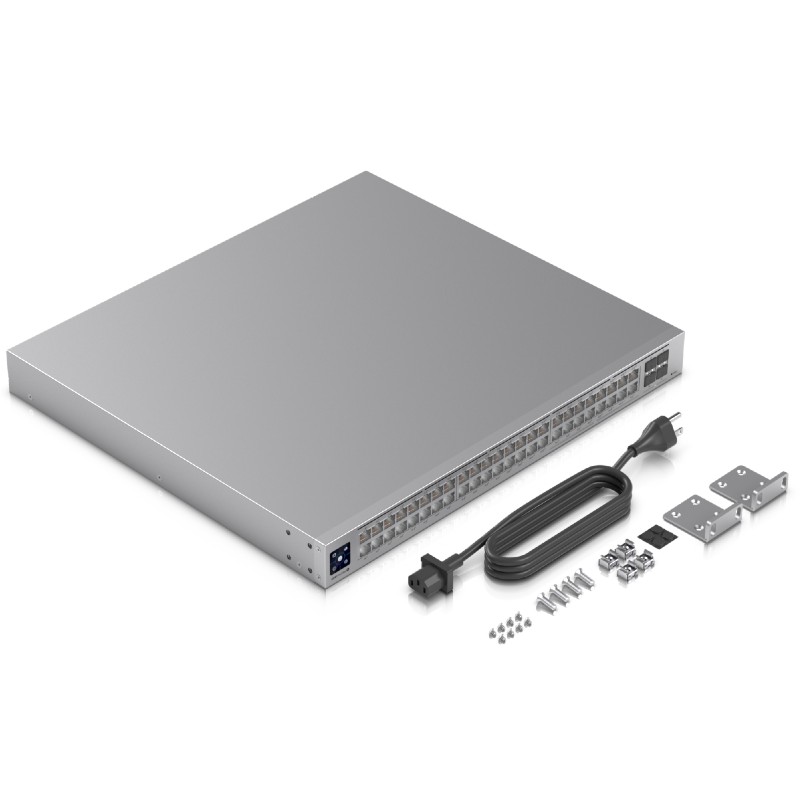

| Package Contents: |
|---|
| 1 x USW-Pro-Max-48-PoE
|
| 1 x Power cord
|
| 1 x Rackmount ears (ΚΙΤ) |
|
