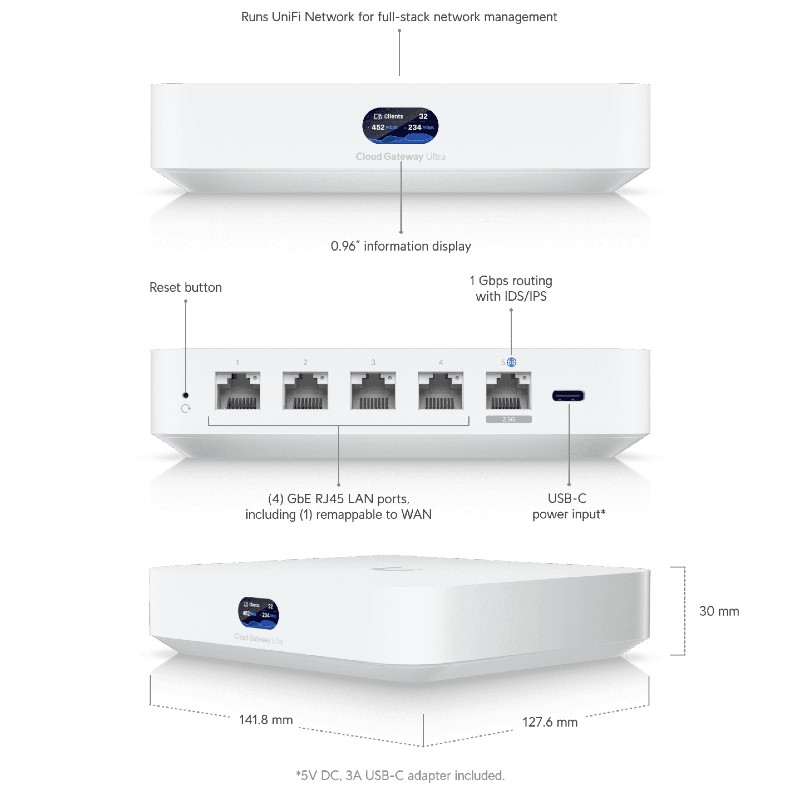

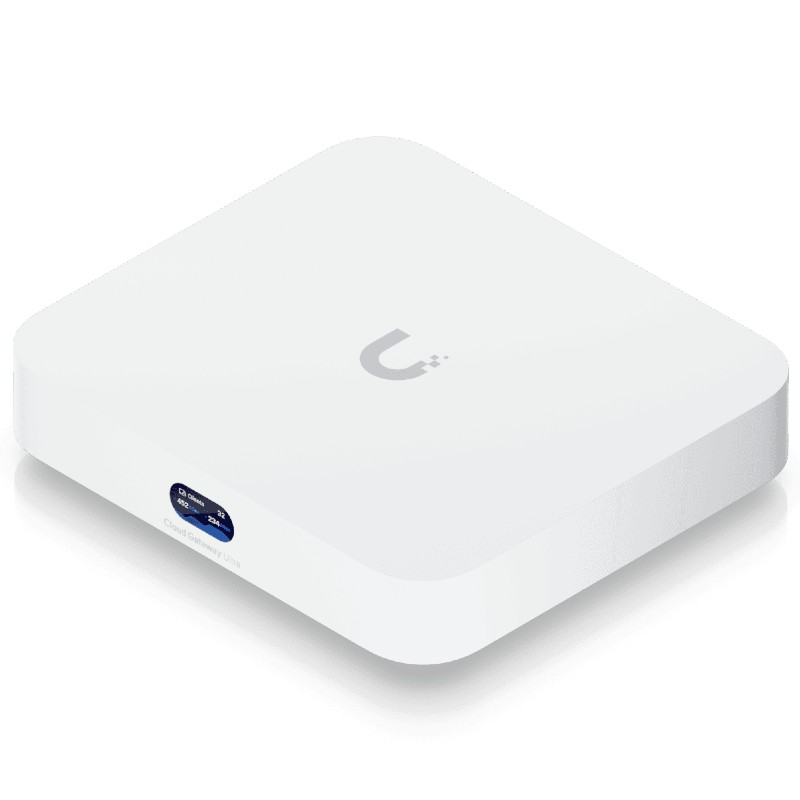

UCG-Ultra - Powerful and compact multi-WAN UniFi Cloud Gateway with a full suite of advanced routing and security features.
-
Runs UniFi Network for full-stack network management
-
Manages 30+ UniFi Network devices and 300+ clients
-
1 Gbps routing with IDS/IPS
-
Multi-WAN load balancing
-

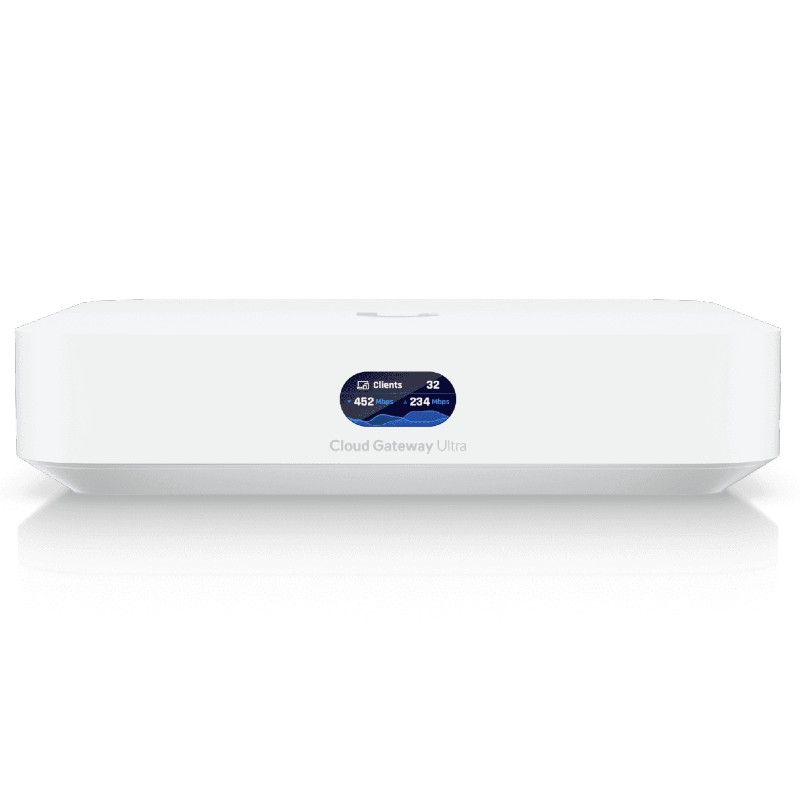

0.96" LCM status display
-
USB-C powered (adapter included)
|
Mechanical |
|
Dimensions |
141.8 x 127.6 x 30 mm |
|
Weight |
520 g |
|
Enclosure material |
Polycarbonate |
|
Hardware |
|
Processor |
Quad-core ARM® Cortex®-A53 at 1.5 GHz |
|
System memory |
3 GB DDR4 |
|
On-board storage |
16 GB eMMC |
|
Management interface |
Ethernet
Bluetooth |
|
Networking interface |

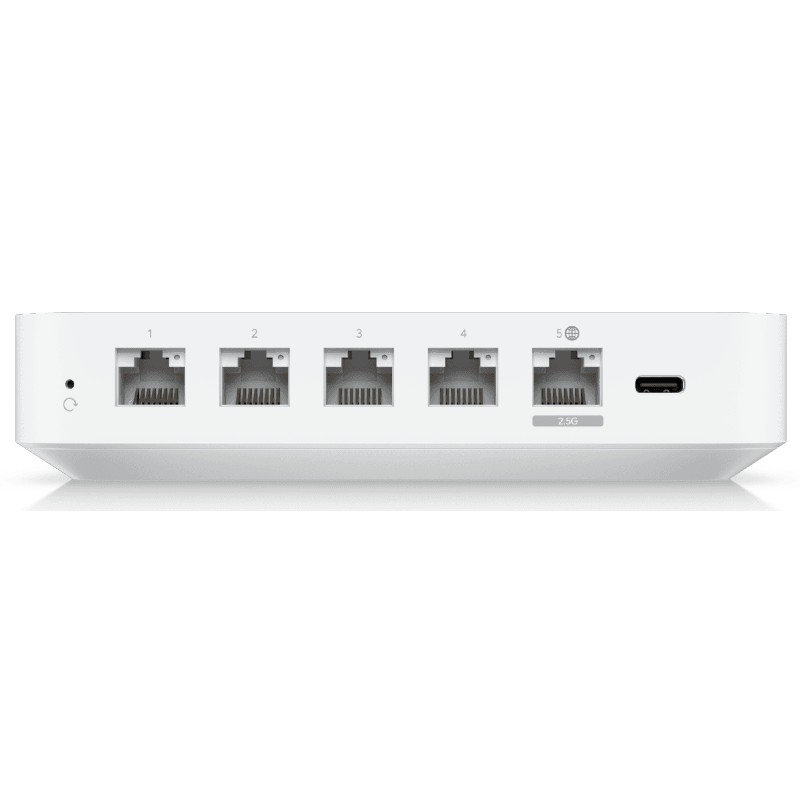

LAN:(4) GbE RJ45 ports
WAN:(1) 1/2.5 GbE RJ45 port |
|
IDS/IPS throughput |
1 Gbps |
|
Power method |
USB type C (5V DC/3A) |
|
Supported voltage range |
100–240V AC |
|
Max. power consumption |
6.2W |
|
LCM display |
0.96" status display |
|
Button |
Factory reset |
|
Ambient operating temperature |
-10°C to +40°C |
|
Ambient operating humidity |
5 to 95% noncondensing |
|
Certifications |
CE, FCC, IC |
|
Gateway Features |
|
Performance |
Redundant WAN with failover and load balancing
WiFi QoS with UniFi APs
Application, domain, and country-based QoS
Application and device type identification
Additional internet failover with LTE Backup
Internet quality and outage reporting |
|
Next-generation security |
Application-aware firewall rules
Signature-based IPS/IDS threat detection
Content, country, domain, and ad filtering
VLAN/subnet-based traffic segmentation
Full stateful firewall |
|
Advanced networking |
License-free SD-WAN
WireGuard, L2TP and OpenVPN server
OpenVPN client
OpenVPN and IPsec site-to-site VPN
One-click Teleport and Identity VPN
Policy-based WAN and VPN routing
DHCP relay
Customizable DHCP server
IGMP proxy
IPv6 ISP support |
|
LEDs |
|
Ethernet |
White: link/activity |
|
Application Requirements |
|
Mobile app |
UniFi iOS™: Version 10.12.0 and later
UniFi Android™: Version 10.11.2 and later |
