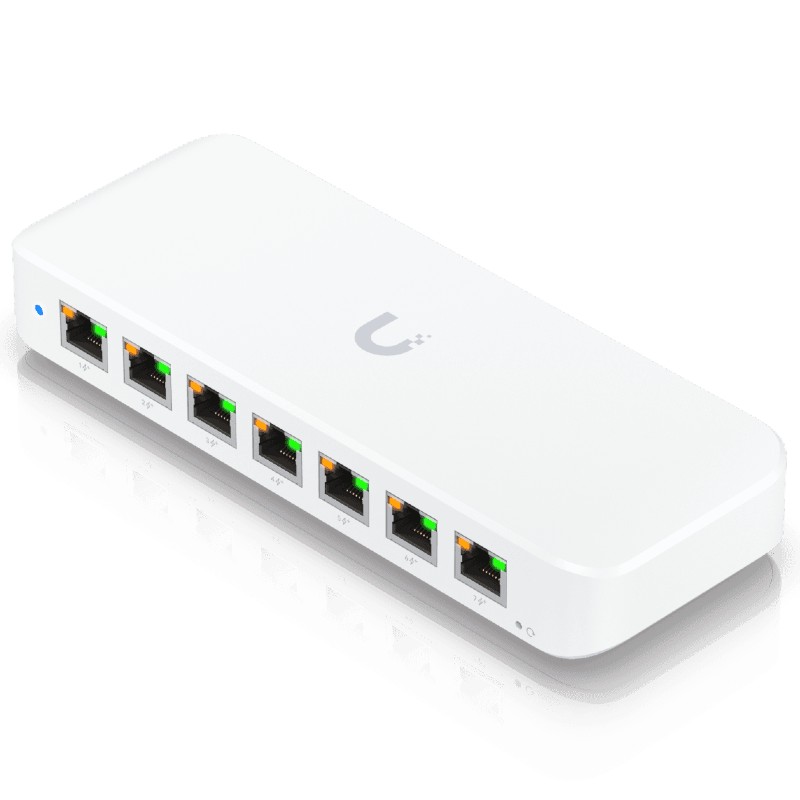

USW-Ultra-60W - A compact, Layer 2, 8-port GbE PoE switch with versatile mounting options.
-

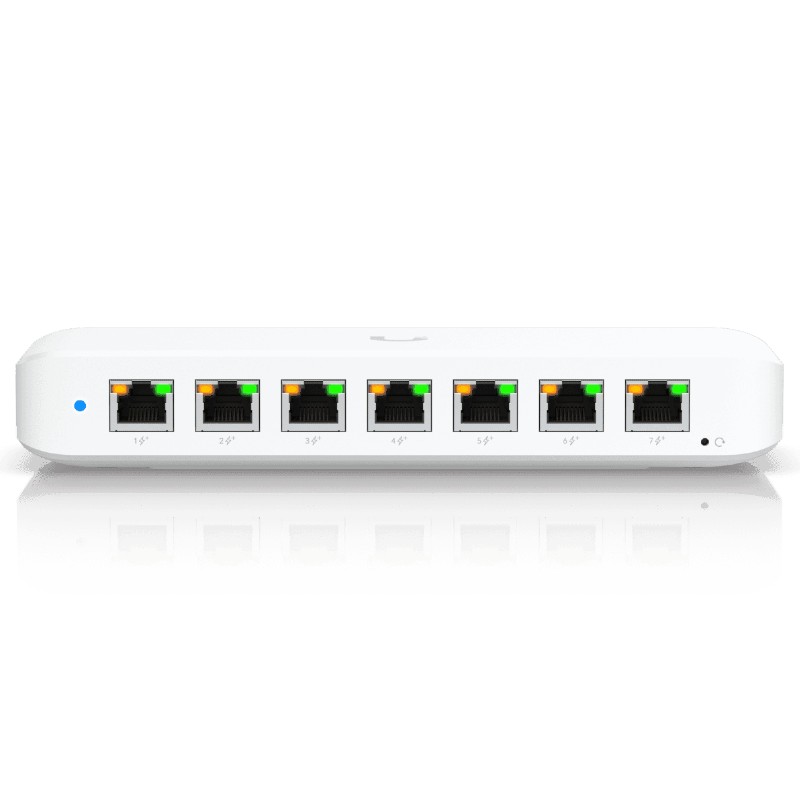

(7) GbE PoE+ output ports
-

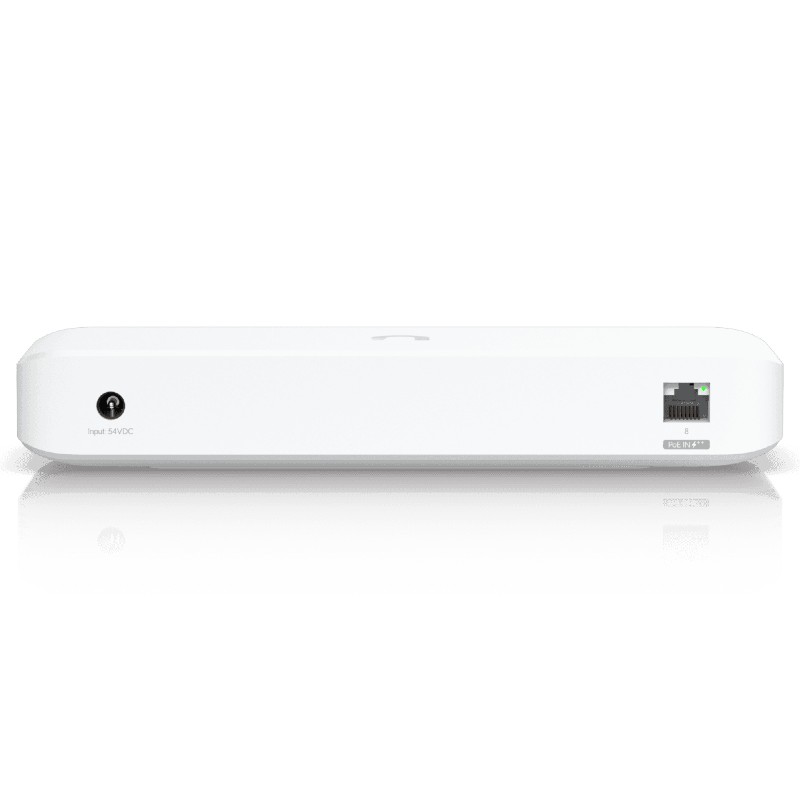

(1) GbE PoE++ input port*
-
202W PoE availability with the included AC power adapter
*PoE input is supported for switch operation, with PoE+/PoE++ input or AC power required for PoE output.
|
Overview |
|

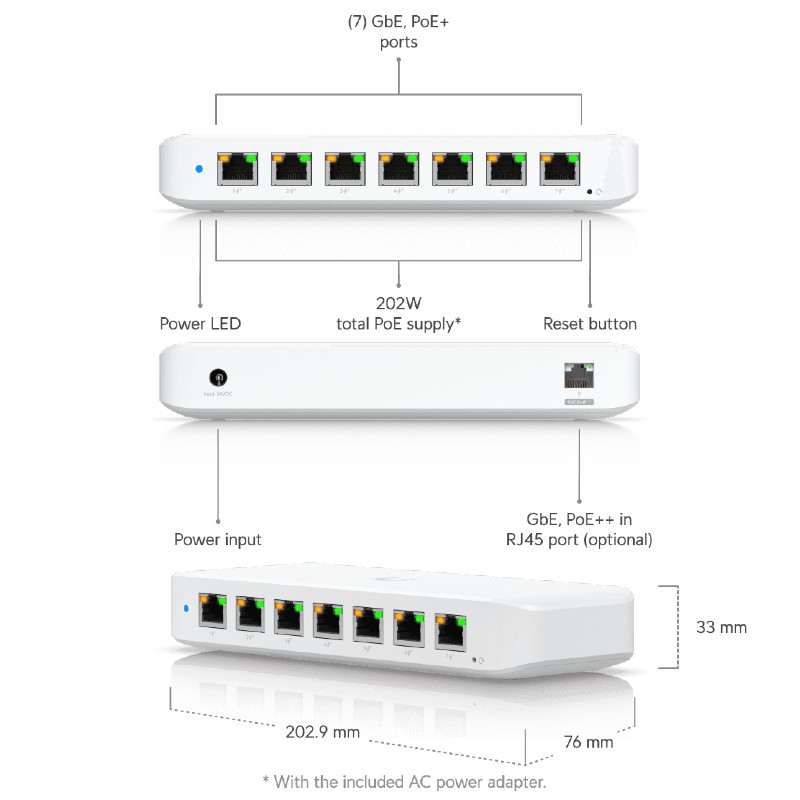

Dimensions |
203 x 76 x 33 mm |
|
Port Layout |
-
1 GbE RJ45: 8 (7 PoE+; 1 PoE++ input)
|
|
Max. PoE Output |
Up to PoE+ |
|
Total PoE Availability |
-
PoE++ input: 42W
-
PoE+ input: 16W
-
60W PoE adapter input: 42W
-
60W AC adapter input: 52W
-
210W AC adapter input: 202W
|
|
Form Factor |

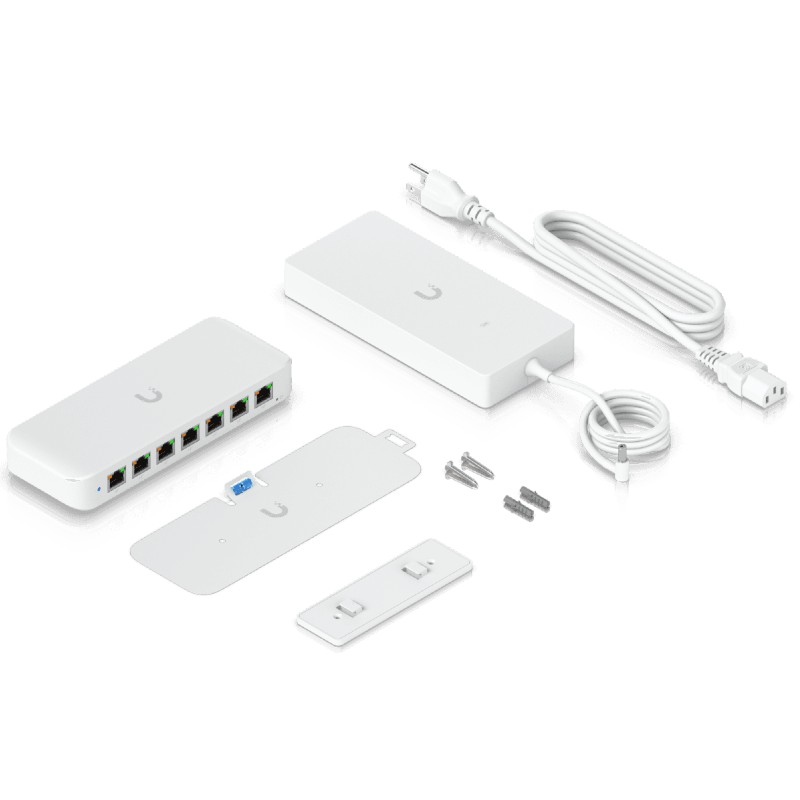

Compact desktop, wall, magnetic |
|
Performance |
|
Switching Capacity |
16 Gbps |
|
Total Non-Blocking Throughput |
8 Gbps |
|
Forwarding Rate |
12 Mpps |
|
Supported VLANs |
256 |
|
MAC Address Table Size |
4,000 |
|
Layer 2 Features |
|
STP & RSTP |
✓ |
|
Egress Rate Limit |
✓ |
|
Flow Control |
✓ |
|
Storm Control |
✓ |
|
Multicast & Broadcast Rate Limiting |
✓ |
|
Port Isolation |
✓ |
|
Port Mirroring |
✓ |
|
Jumbo Frames |
✓ |
|
Loop Protection |
✓ |
|
Hardware |
|
PoE Ports |
|
|
Max. PoE Wattage per Port by PSE |
|
|
Max. Power Consumption |
-
with PoE input: 9W (Excluding PoE Output)
-
with adapter input: 8W (Excluding PoE Output)
-
with 210W AC adapter input: 210W (Including PoE Output)
|
|
Power Method |
-
(1) AC/DC adapter (Included)
-
(1) PoE++
|
|
Power Input Method |
|
|
Power Supply |
AC/DC, external, 60W |
|
Supported Voltage Range |
50—57V DC/PoE |
|
Management |
Ethernet |
|
Heat Dissipation |
-
30.708 BTU/hr
-
27.296 BTU/hr
|
|
Weight |
-
Device: 320 g
-
Wall mount: 45 g
-
Adapter: 330 g
|
|
Enclosure Material |
Polycarbonate |
|
Ambient Operating Temperature |
-
PoE++ input: -30 to 60° C
-
60W AC adapter input: -20 to 45° C
|
|
Ambient Operating Humidity |
10 to 90% noncondensing |
|
NDAA Compliant |
✓ |
|
Certifications |
CE, FCC, IC, Anatel |
|
Software |
|
Application Requirements |
UniFi Network, Version 8.0.7 and later |
