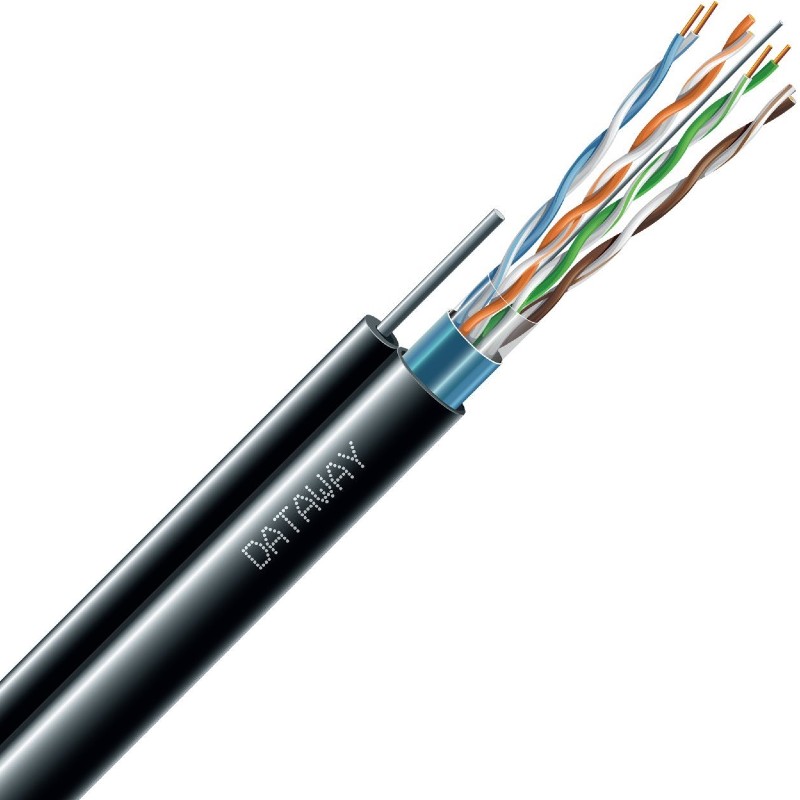

DW-5-F-PE-S-100 - Special outdoor CAT5E category network cable, which has shielding, a black jacket made of PE material and allows transmission data at speeds of up to 1 Gbps (1000 Base-T).
This cable is equipped with a steel support wire which is insulated and allows the cable to be used as self-supporting, meaning it can be run without additional support for up to 70 meters.

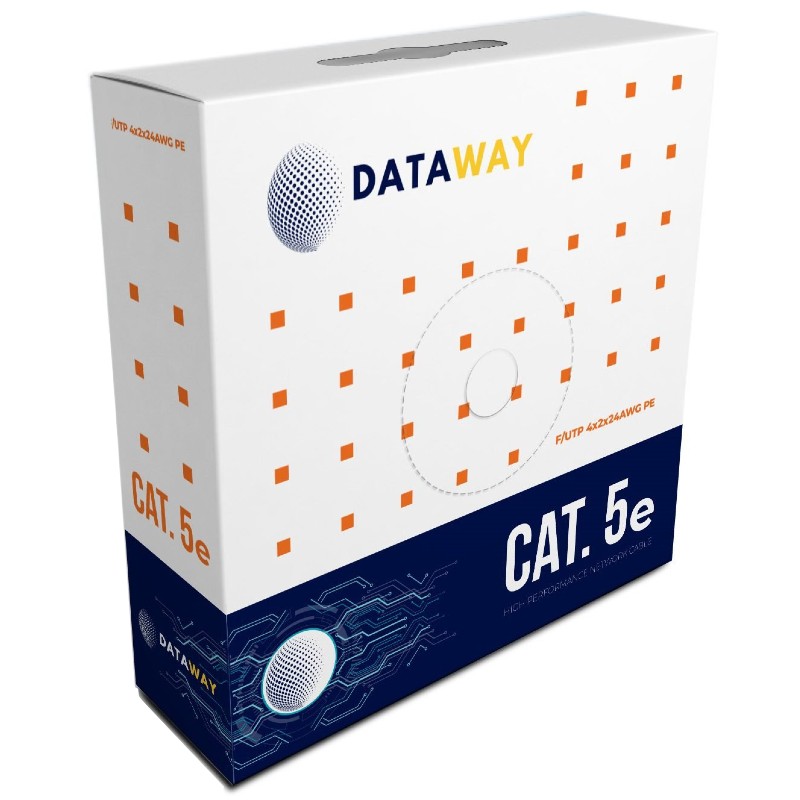

The cable is wound on a quality wooden spool and is marked after every meter from 0 to 100 m.
|
Physical characteristics |
|
Cable type |
Solid |
|
Conductor wire gauge |
24 AWG |
|
Drain wire |
Yes |
|
Installation temperature |
0°C up to 50°C |
|
Self-supporting wire |
Yes |
|
Shielding type |
FTP (F/UTP) |
|
Weight |
53 kg/km |
|
Conductor and insulation diameter |
0.9mm |
|
Purpose |
Outdoor |
|
Conductor material |
Copper |
|
Sheath material |
PE |
|
Length |
100 m |
|
Outer diameter |
10.6 x 6 |
|
Storage temperature |
-20°C up to 80°C |
|
Color |
Black |
|
General |
|
Category |
CAT5E |
|
CPR class |
Fca |
|
Ethernet support |
1000 Base-T, 2.5G Base-T, 5G Base-T |
|
Bandwidth |
100 MHz |
