TSBW101G - Tuya WiFi 10A, 1 Channel, With Neutral

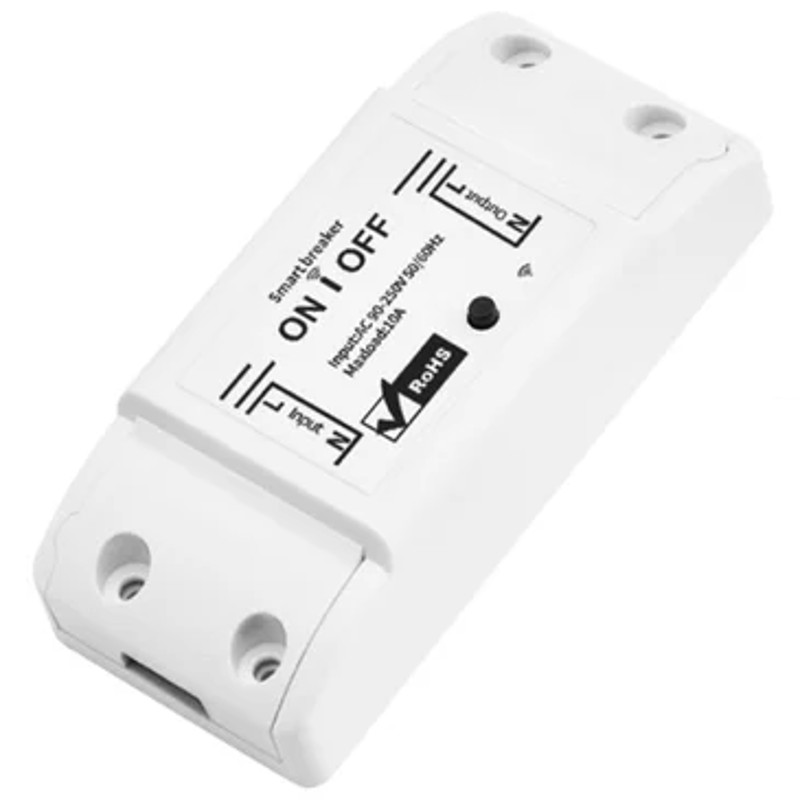

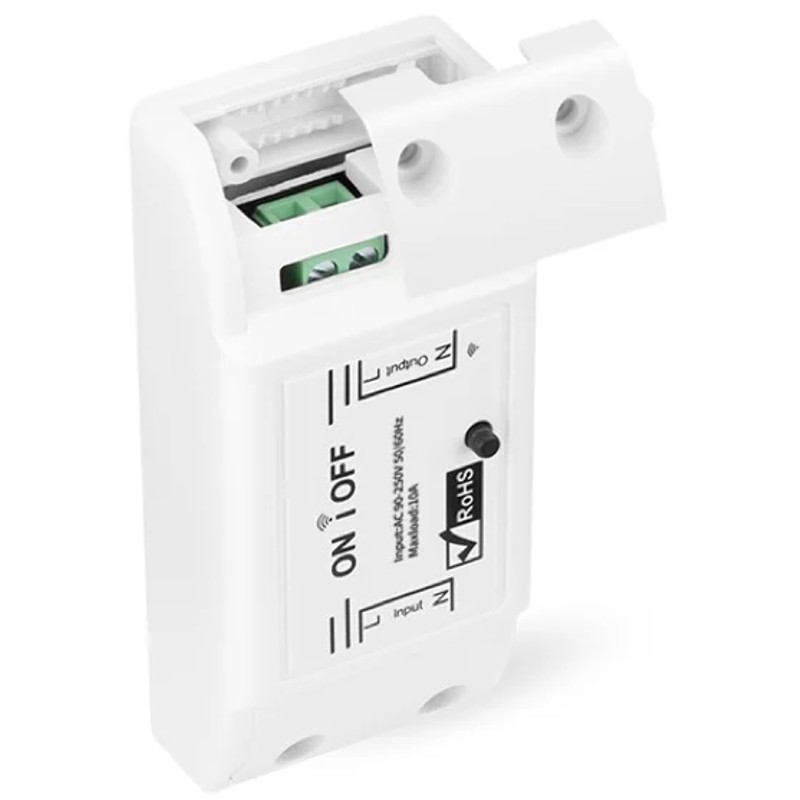

The WiFi TSBW101G Module is a small 1-circuit relay that will transform your switch traditional in a smart device that you can control with your smartphone.

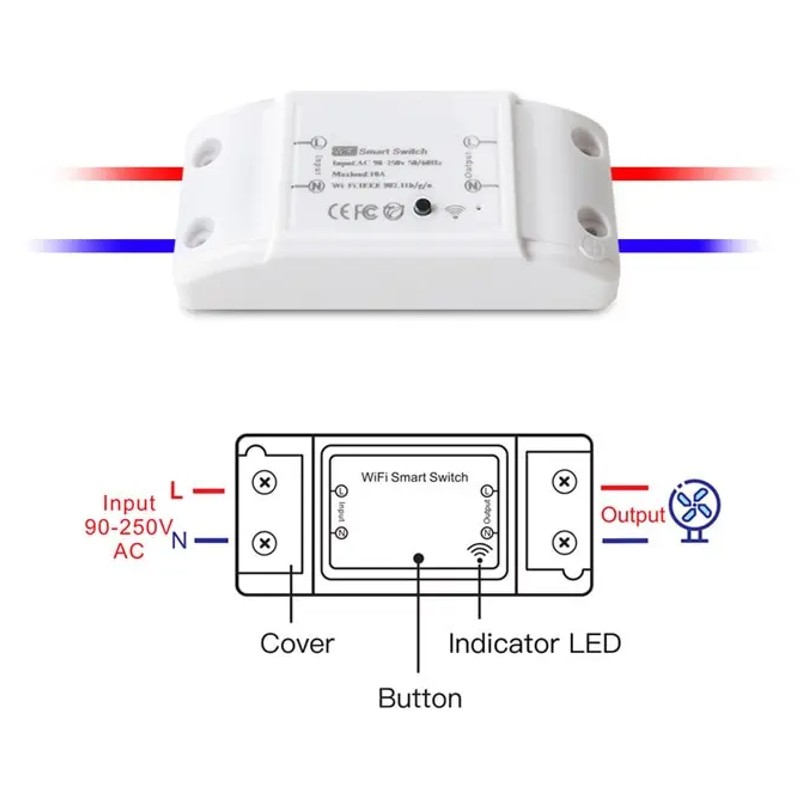

The device works with traditional switches, and allows you to use both the smart function and that traditional , it also works with toggle switches.
This smart DIY switch module can be used at home, office, hotel and other places.
The application allows you to monitor the operation of the relay, even when using the traditional method. In the application, we can set a weekly work schedule for the device.
The switch works with Google Home and Amazon Alexa voice assistants.
|
Specifications: |
|
Description |
Tuya WiFi Breaker With Neutral Switch |
|
Number of Channels |
1 |
|
Input voltage |
220-240V AC 50 / 60Hz |
|
Maximum current |
2300W |
|
Type of load |
10A |
|
Communication Protocol |
WiFi |
|
Material |
ABS V0 Fire resistant |
|
Voice control support |
Amazon Alexa / Google Assistant |
|
Protection level |
IP20 |
|
Operating temperature |
From –10ºC ~ + 40ºC |
|
Working humidity |
5% - 95% non-condensing |
|
Dimensions |
88x44x24 mm |
