LTE 4G/5G Router » LT500 Outdoor

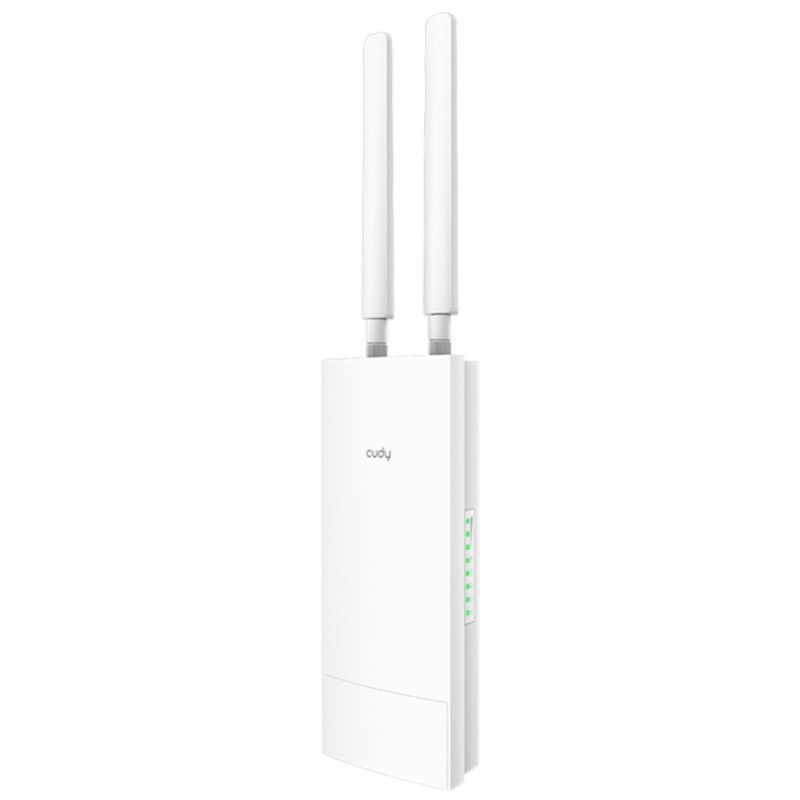

Cudy LT500 Outdoor, 4G LTE CAT4 + AC1200 dual band Wi-Fi Router
[3203][LT500 Outdoor]
Price: 56,35€
 Order or Qty  Price
 > 500€  5+   55,79€
 > 1000€  10+   55,22€
 > 2000€  20+   54,66€
 > 5000€  40+   54,10€
 > 10000€  100+   53,53€
Prices exclude VAT

Cudy LT500 Outdoor, 4G LTE CAT4 + AC1200 dual band Wi-Fi Router

In Stock: 3
Order Qty:
EAN:6971690792848

LT500 Outdoor - Outdoor/Indoor 4G LTE CAT4 + 4G LTE CAT4 + AC1200 dual band Wi-Fi Router

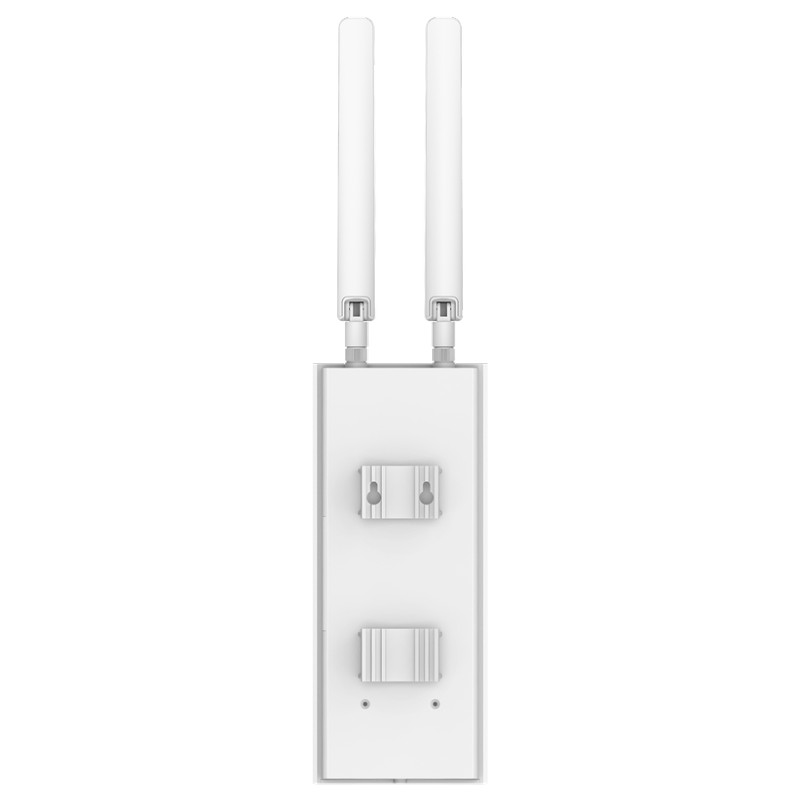

A pole/wall-mounted outdoor 4G CPE with IP65 casing, one SIM slot, and accepting PoE, featuring Cudy Mesh main node and VPN features.

  • IP65, -40~65°C (-40~149°F), 4kV Surge
  • 4G Cat. 4 with Max 150 Mbps DL
  • 4-Stream Dual-Band Wi-Fi 5
  • 867 Mbps + 300 Mbps Wi-Fi
  • 1 × Nano SIM Slot
  • 2 × FE on the PoE Adapter
  • 24V Passive PoE
  • 50 Connected Devices
  • Cudy Mesh, VPN Server and Client
  • Cudy App

Specifications:
Part # LT500 Outdoor
Chipset MT7628AN
CPU Details 580 MHZ Single-Core, MIPS24KEC
Flash/ROM 16 MB (64 Mbit ) NOR
DDR/RAM 128 MB (512 Mbit) DDR2
Celluar Standards 4G Cat. 4
Cellular Antennas 2 × Fixed
SIM Options 1× Nano SIM Slot
EU Max DL Speed 150 Mbps (LTE-FDD), 130 Mbps (LTE-TDD)
EU Max UL Speed 50 Mbps (LTE-FDD), 30 Mbps (LTE-TDD)
Advanced DL 2×2 MIMO
Celluar Bands LTE-FDD: B1/3/5/7/8/20/28
LTE-TDD: B38/40/41
WCDMA: B1/5/8
2.4 GHz Wi-Fi Speed 300 Mbps
2.4 GHz Wi-Fi Streams 2T2R (2×2 MIMO)
Wi-Fi Antennas 2× Internal
Detachable Wi-Fi Antennas Connector RP-SMA Female
Wi-Fi Transmission Power <20 dBm (2.4 GHz)
Range Performance Max: 170 m in open space
10/100 Mbps RJ45 Ports 1
Ethernet Notes Accepts PoE powering
LED
  • System
  • Internet
  • LAN
  • Wi-Fi
  • Cellular Signal Strength
Power Input PoE via Ethernet Port
Power Methods Passive PoE
Passive PoE 24V
Power Adapter Input: 100 ~ 240 V, 50/60 Hz AC
Output: 24V 0.5A DC
Max Power Consumption (W) 8W
Idle Power Consumption (W) 4W
Lightning/Surge Protection DM 2kV, CM 4kV
ESD Contact Protection 4kV
ESD Air Protection 8kV
Operating Temperature: -20℃ ~ 60℃
Extend Operating Temperature
with Industrial Grade SIM Card:
-40℃ ~ 65℃
Storage Temperature -40℃ ~ 70℃
Operating Humidity 0% ~ 100% non-condensing
Storage Humidity 5% ~ 90% non-condensing
Body Dimension 240×100×53.7 mm
Antenna Dimension 197.5×21.6×15.5 mm
Product Weight 420 g
Retail Package Weight 794 g
Retail Package Dimension 324×107×86 mm


Additional Images:

Return for:
Refund: Store Credit: Repair:
20 day(s) 40 day(s) 24 month(s)
