PoE » Passive Splitter » EZ-POEPPB1

Price: 2,51€

Prices exclude VAT

Order or Qty		Price
> 500€	5+	2,46€
> 1000€	10+	2,41€
> 2000€	20+	2,36€
> 5000€	40+	2,31€
> 10000€	100+	2,26€

In Stock: 14 pcs

Order Qty:

Product Details
PID:	3245
SKU:	EZ-POEPPB1
UPC:	728615667738
Single unit:	17×4×2cm, 43 g
Return Policy
Refund:	20 days
Store Credit:	40 days
Warranty:	12 months
Package Contents:
1 x EZ-POEPA05 PoE Injector Black
1 x EZ-POEPS04 PoE Splitter Black

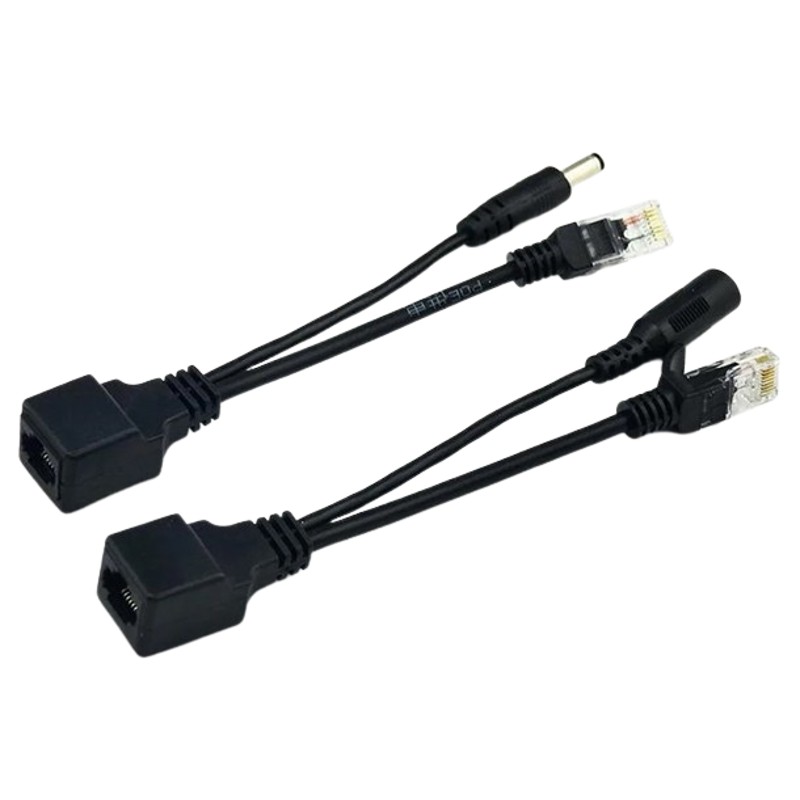

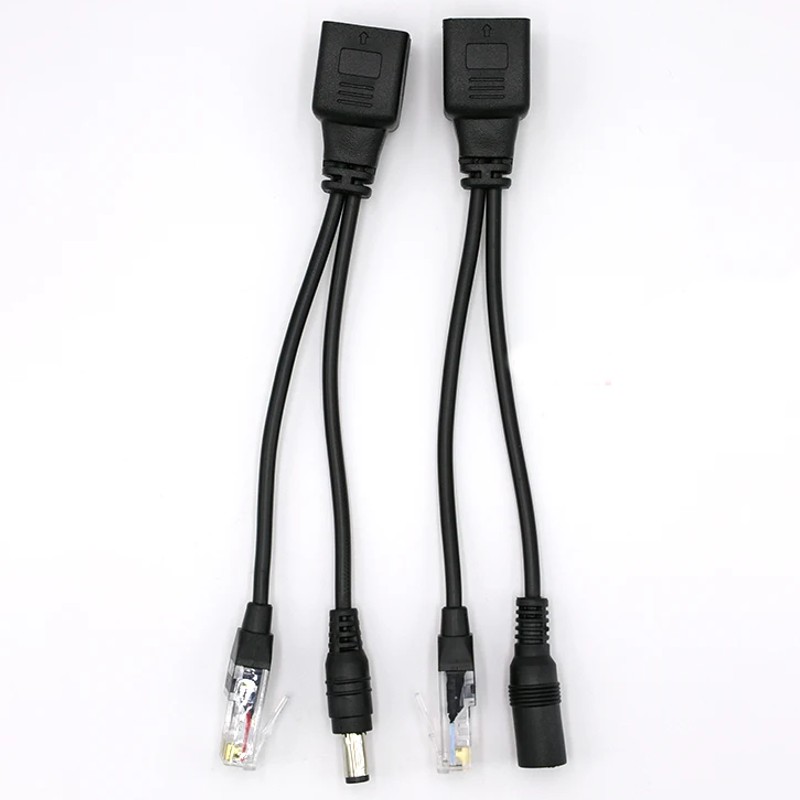

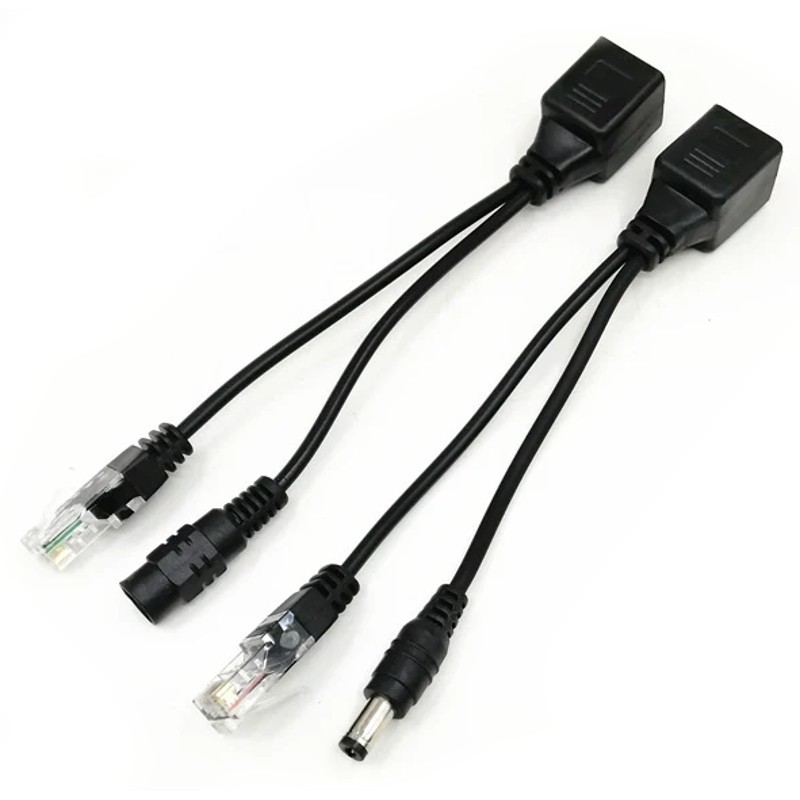

EZ-POEPPB1, 10/100M Passive PoE Injector + Splitter Pair, Cat5 - Black

EZ-POEPPB1 - 10/100M Passive PoE Injector + Splitter Pair, Cat5 - Black

Features:

Cat5 Cable
RJ45 Input / Output connector
Input / Output common ground>
Power / Data Injector

Input / Output Specifications :
DC Input Voltage	5V - 48V ± 5 %
DC Output Voltage	Sames as Input Voltage
Max Output Current	0.4A Max.
Over Current Protection	None
General Specifications:
Operating Temperature	0^oC ~ +50^oC
Storage Temperature	-20^oC ~ +70^oC
Humidity	Up to 90%
Weight	50gr
Dimensions	160x22x21mm

Input Pin RJ-45 Plug		Output Pin Jack RJ-45
1	Tx(+)	Tx(+)	1
2	Tx (-)	Tx (-)	2
3	Rx (+)	Rx (+)	3
4	N.C.	V+	4
5	N.C.	V+	5
6	Rx (-)	Rx (-)	6
7	N.C.	GND	7
8	N.C.	GND	8
