EZ-RDS4S05IRS

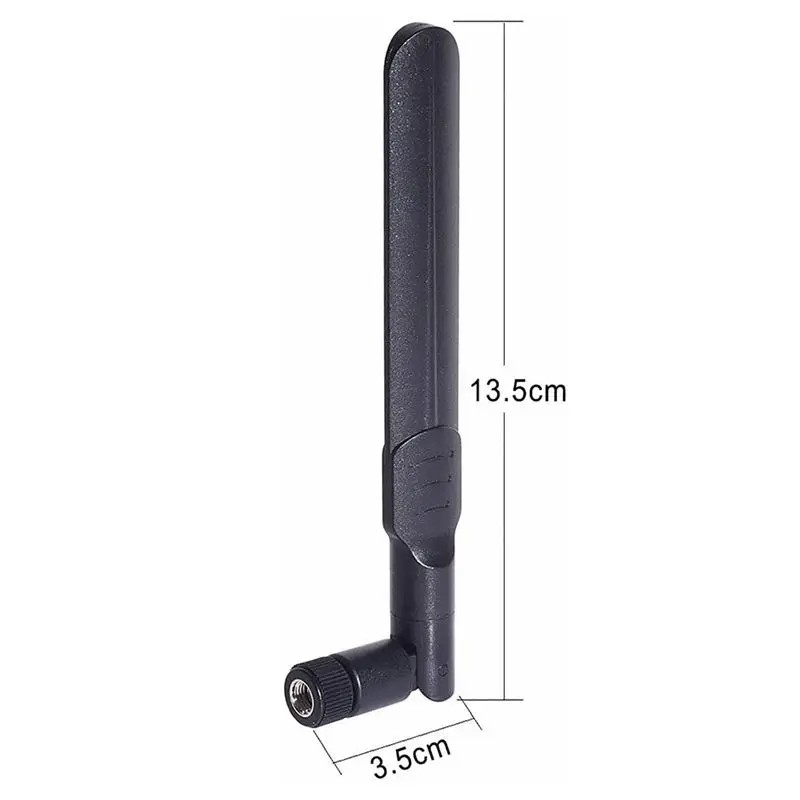

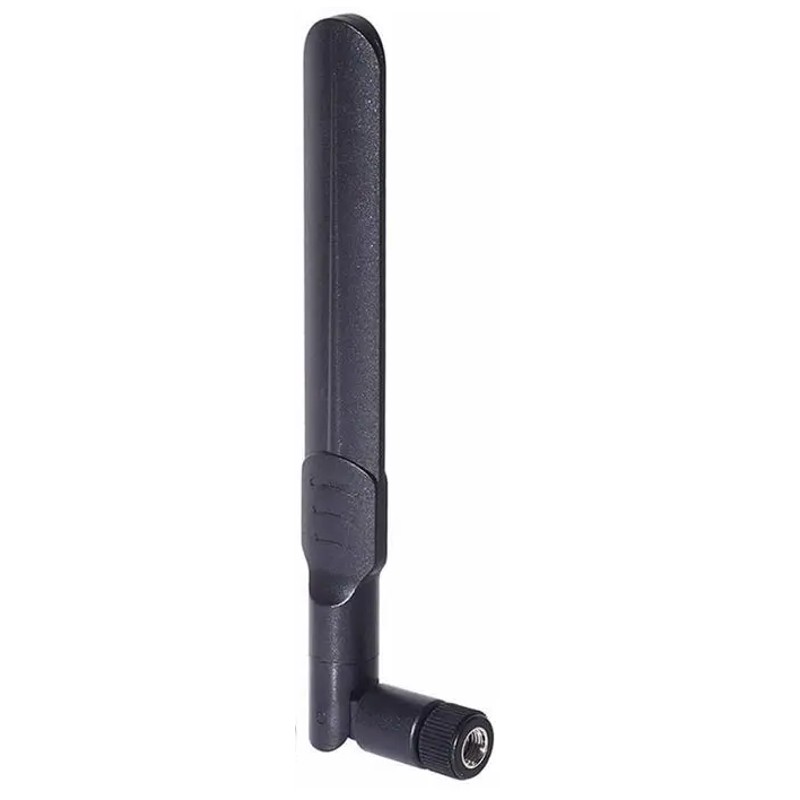

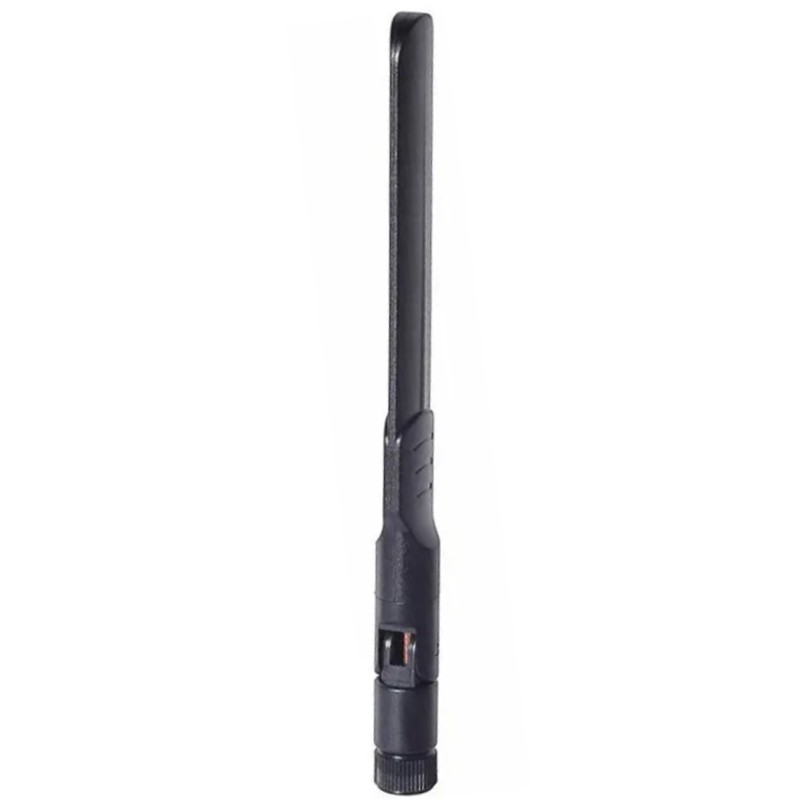

The new OMNI Directional Antenna is made of TPEE Material with steel base, provides broad coverage and 5 dBi gain, and is available with an integrated SMA MaleC onnector.
The gain of this antenna is 5dBi and comes with 50° of Vertical BeamWidth.
The antenna features high gain in an aesthetic package. Because of their high gain the user can expect extra signal strength.

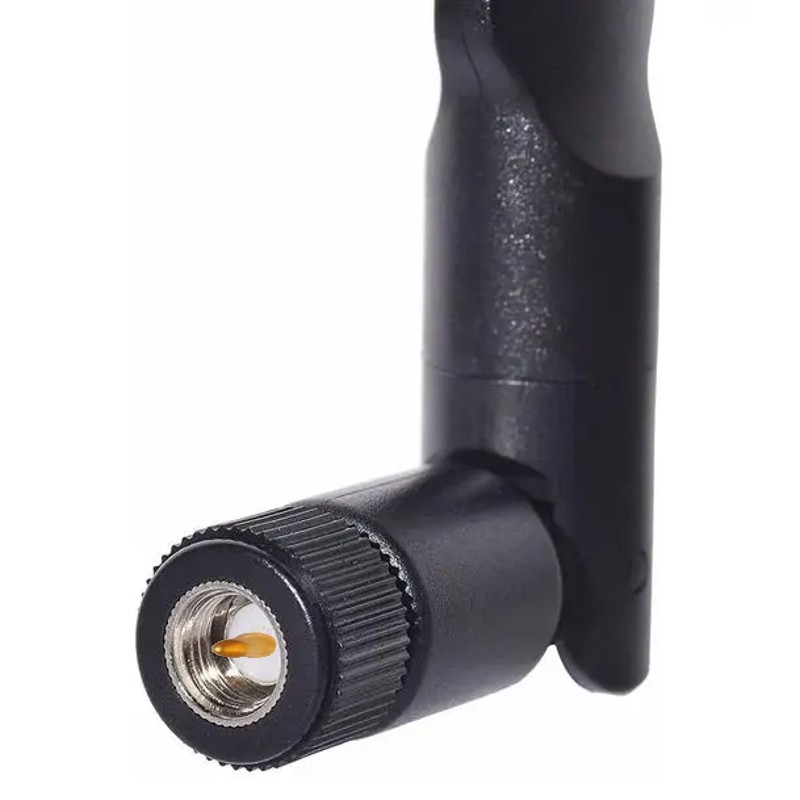

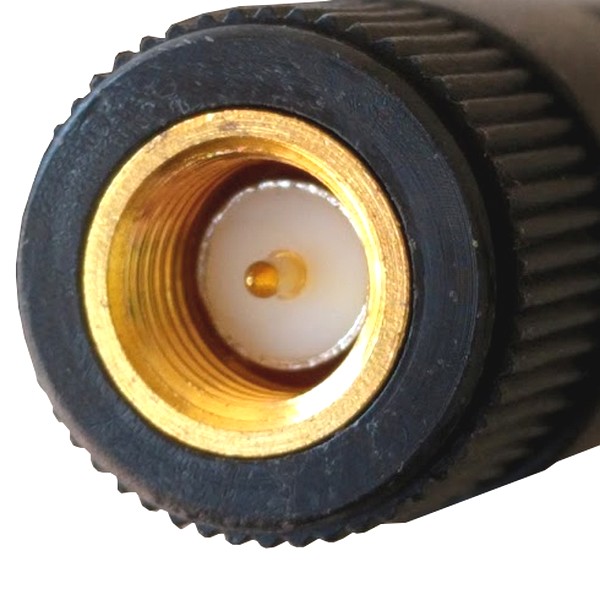

It is only 16cm in length and is available with SMA Male Connector (Female thread / Male center pin.)
|
Specifications: |
|
Frequency Range |
2400Mhz - 2483Mhz |
|
Gain |
5.5dBi |
|
Ver Beamwidth |
50° |
|
Hor Beamwidth |
360° |
|
VSWR |
1.5:1 |
|
Impedance |
50 Ohm |
|
Input power |
10 Watt |
|
Operating Temperature |
-10°C - +70°C |
|
Connector |
SMA Male |
|
Weight |
14gr |
|
Dimensions |
160mm x 17mm |
|
Connector |
SMA
Male |
 |
Female thread
Male center pin |
