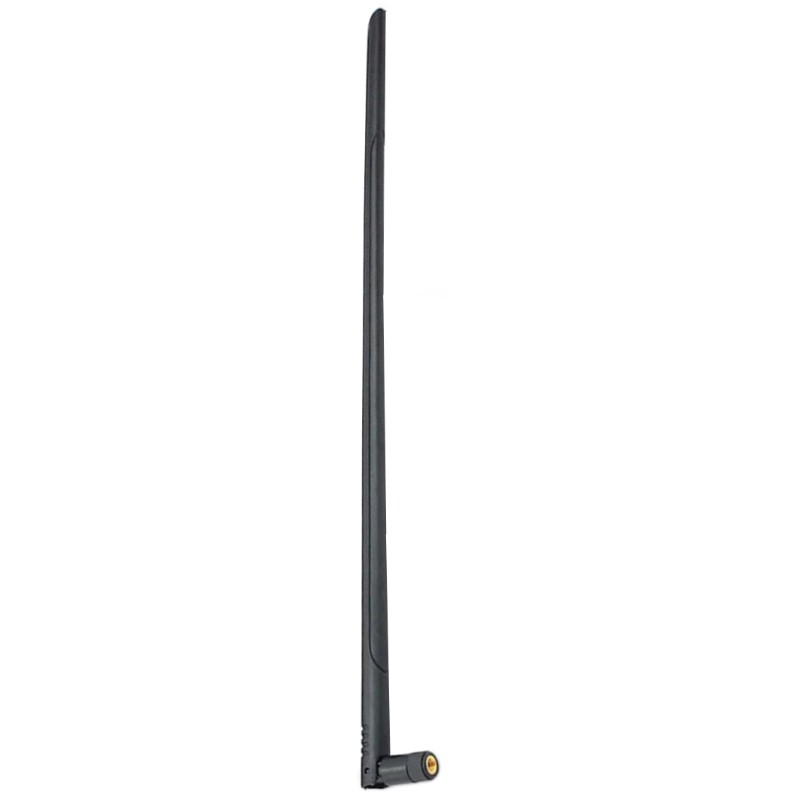

EZ-RDDBR11ISM
The new OMNI Directional Dual Band Antenna is made of TPEE Material with steel base, provides broad coverage and 12 dBi @ 5Ghz / 10dBi @ 2.4Ghz gain, and is available with an integrated SMA Male Connector.
The antenna features high gain in an aesthetic package. Because of their high gain the user can expect extra signal strength.

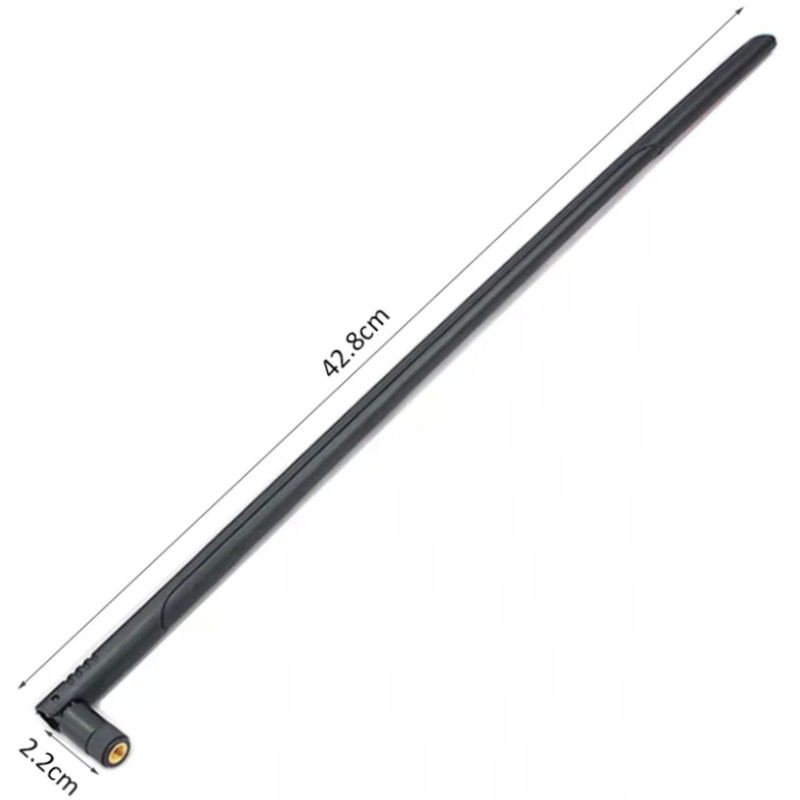

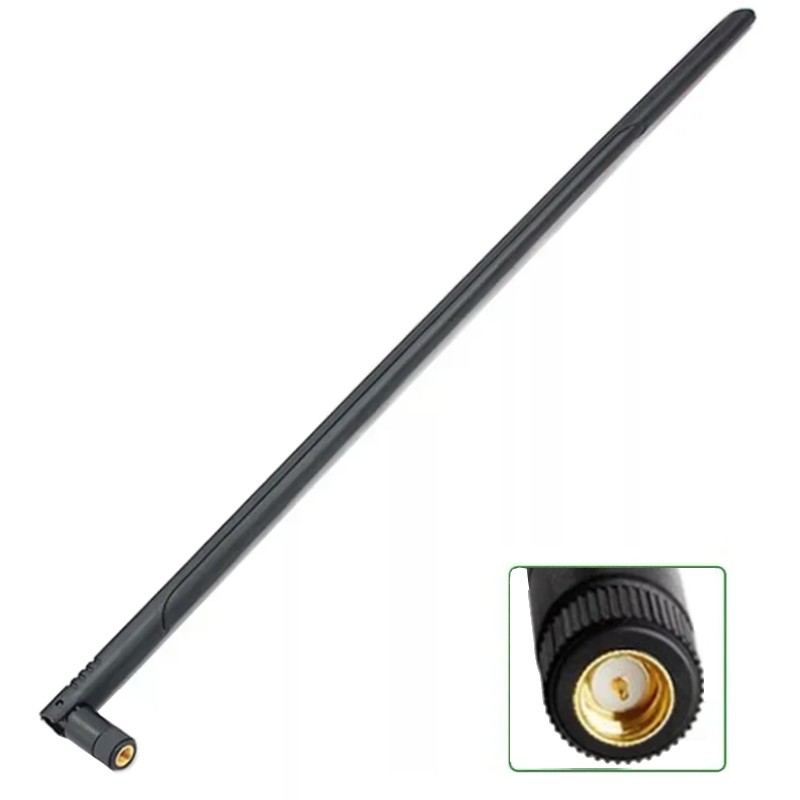

It is 450cm in length and is available with SMA Male Connector (Female thread / Male center pin.)
|
Specifications: |
|
Frequency Range |
2400Μhz - 2483Mhz
4900Mhz - 6100Mhz
|
|
Gain |
12dBi @ 5Ghz
10dBi @ 2.4Ghz
|
|
Ver Beamwidth |
50° |
|
Hor Beamwidth |
360° |
|
VSWR |
1.5:1 |
|
Impedance |
50 |
|
Input power |
10 Watt |
|
Operating Temperature |
-10°C - +70°C |
|
Connector |
RP-SMA Male |
|
Weight |
45gr |
|
Dimensions |
450 x ⌀14mm |
|
Connector |
RP-SMA
Male |
 |
Female thread
Male center pin |
