ENVR - Enterprise Network Video Recorder
3U NVR with (16) 2.5/3.5” drive bays, supporting up to (70) 4K cameras or (210) Full HD cameras.

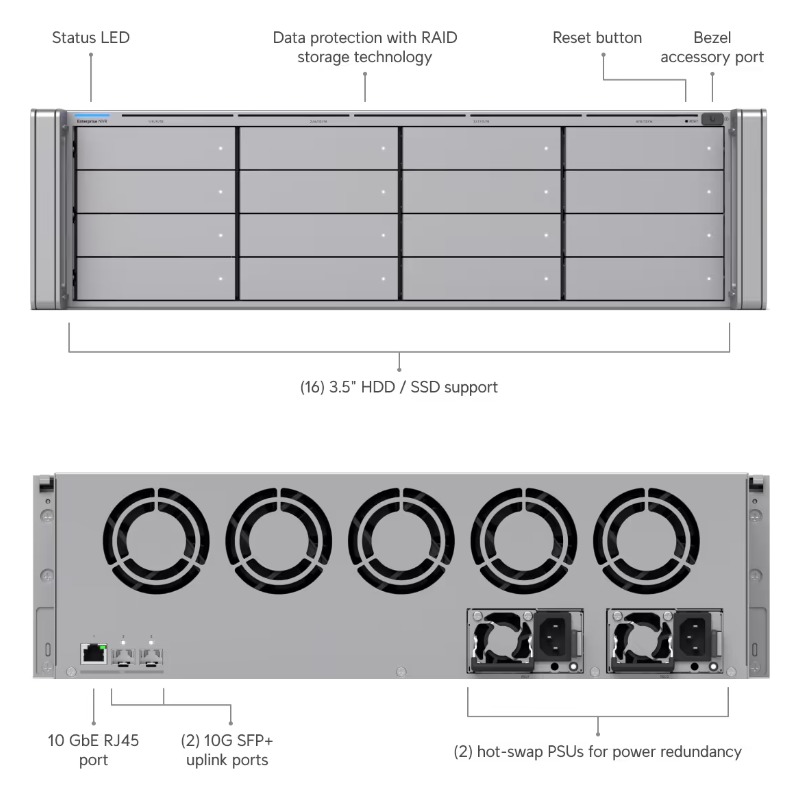

A rack-mounted 3U NVR designed for enterprise-grade surveillance. I
t features 16 bays supporting 2.5″ or 3.5″ HDD/SSD drives, capable of managing up to 70 4K cameras or 210 Full HD cameras.
It includes dual 10G SFP+ uplinks, a 10 GbE RJ45 port, RAID storage protection, and dual hot-swap power supplies for redundancy.
|
Overview |
|
Dimensions |
481.4 x 480 x 132 mm |
|
UniFi Application Suite |
Protect ✓ / Access ✓ |
|
Managed Cameras |
(210) HD / (140) 2K / (70) 4K |
|
Storage Capacity |
(16) 3.5" drive bays |
|
Data Protection |
✓ |
|
Vantage Point |
✓ |
|
Networking Interface |
(2) 10G SFP+ ports / (1) 10 GbE RJ45 port |
|
Power Redundancy |
✓ |
|
Form Factor |
Rack Mount (3U) |
|
Door Access Support |
✓ |
|
Hardware |
|
Hard Drive Capacity |
(16) 2.5/3.5" HDD / SSD support |
|
Max. Power Budget for Drives |
310W |
|
Max. Power Consumption |
410W |
|
Power Method |
(2) AC input, 100—240V, 7A Max., 50/60Hz (Redundant, hot-swappable) |
|
Power Supply |
Hot-swappable 550W CRPS |
|
Processor |
8-core ARM® at 2.5 GHz |
|
Memory |
32 GB |
|
Management |
Ethernet |
|
Display |
Bezel (Optional) |
|
Weight |
Without rails: 16.6 kg / With rails: 19.5 kg |
|
Enclosure Material |
SGCC steel |
|
Mount Material |
Aluminum |
|
Slide Rails |
482.6 mm four-post racks / Posts depths 650–1000 mm |
|
Ambient Operating Temperature |
-5 to 40° C |
|
Ambient Operating Humidity |
5 to 95% noncondensing |
|
NDAA Compliant |
✓ |
|
Certifications |
CE, FCC, IC |

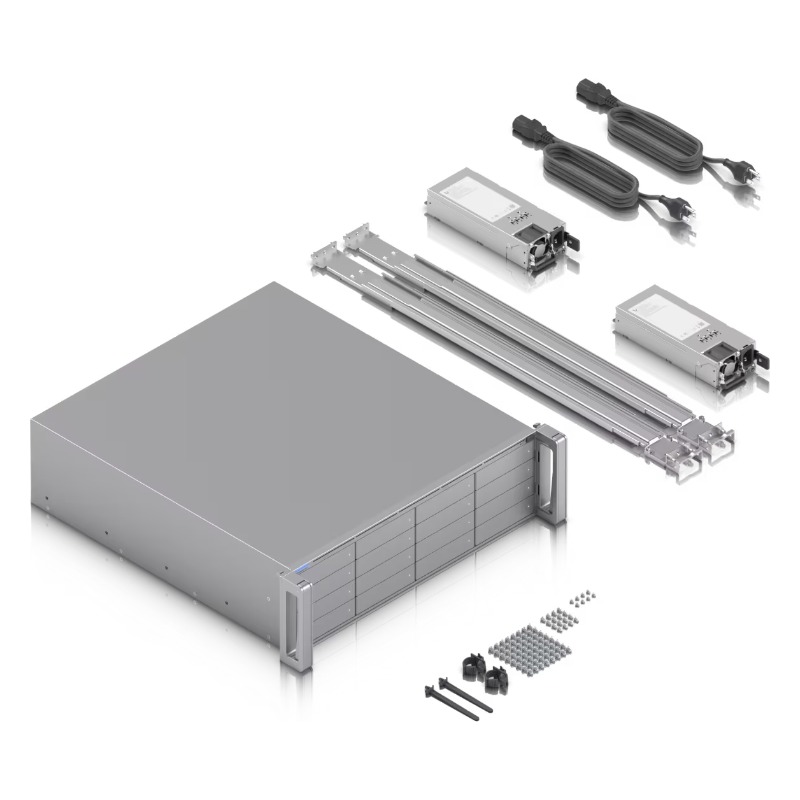

| Package Contents: |
|---|
| 1 x ENVR
|
| 2 x AC Power Supplies
|
| 2 x AC Cables
|
| 2 x Rack-Mount sliders
|
| 1 x Cable management kit |
|
