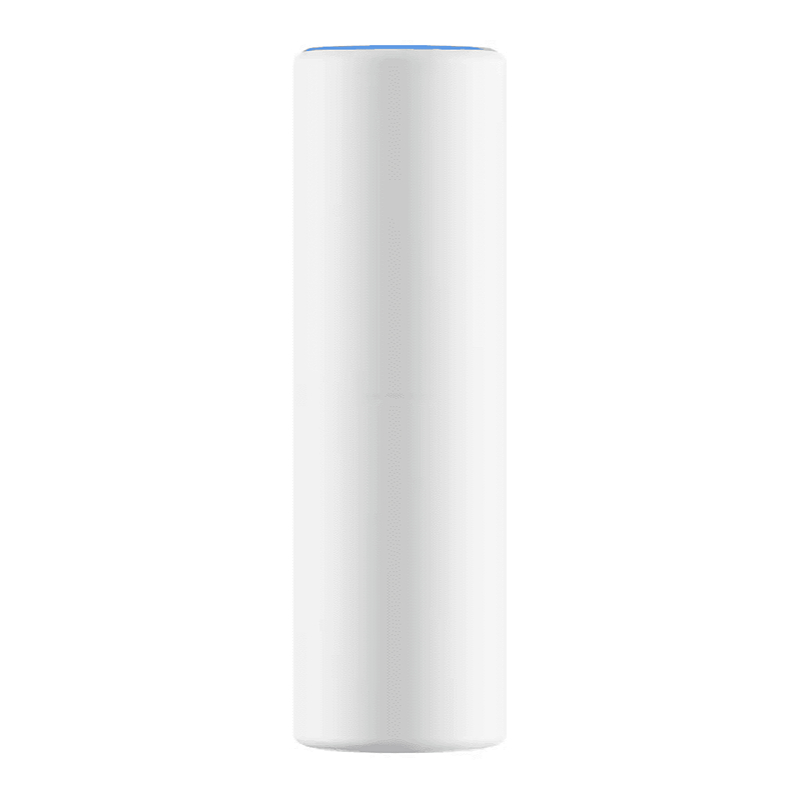

Ubiquiti U7-Mesh, UniFi U7 Mesh Access Point

Price: 175,23€

Order or Qty		Price
> 500€	5+	173,48€
> 1000€	10+	171,73€
> 2000€	20+	169,97€
> 5000€	40+	168,22€
> 10000€	100+	166,47€

Prices exclude VAT

Ubiquiti U7-Mesh, UniFi U7 Mesh Access Point

Available after:
15 Aug 2026

Order Qty:

Product Details
PID:	3754
SKU:	U7-Mesh
Weight:	1.02 Kgs
Return Policy
Refund:	20 days
Store Credit:	40 days
Repair / Warranty:	24 months

U7-Mesh - WiFi 7 Access Point

The U7-Mesh access point supports WiFi 7 standard and has 4 spatial streams.

It has a 2.5 GbE uplink and can support 200+ clients.

Product Links:
Datasheet	Quick Start Guide	Introduction

Specifications
Dimensions	⌀48.5 x 159.5 mm
WiFi Standard	WiFi 7
Spatial Streams	4
Coverage Area	140 m²
Max. Client Count	200+
Uplink	2.5 GbE
Mounting	Wall, Pole, Table stand
Weatherproofing	IPX6 (Installed with the outdoor mount)
Power Method	PoE
Performance
MIMO 5 GHz	2 x 2 (DL/UL MU-MIMO)
MIMO 2.4 GHz	2 x 2 (DL/UL MU-MIMO)
Max. Data Rate 5 GHz	4.3 Gbps (BW240)
Max. Data Rate 2.4 GHz	688 Mbps (BW40)
Antenna Gain 5 GHz	Omnidirectional: 6 dBi Directional: 10 dBi
Antenna Gain 2.4 GHz	3 dBi
Max. TX Power 5 GHz	24 dBm
Max. TX Power 2.4 GHz	23 dBm
Max. BSSIDs	8 per Radio
Features
Wireless Meshing	✓
Band Steering	✓
802.11v BSS Transition Management	✓
802.11r Fast Roaming	✓
802.11k Radio Resource Management (RRM)	✓
Advanced Radio Management	✓
Passpoint (Hotspot 2.0)	✓
Captive Hotspot Portal Custom Branding Landing Page	✓
Voucher Authentication	✓
Payment-Based Authentication	✓
External Portal Server Support	✓
Password Authentication	✓
Guest Network Isolation	✓
Private Pre-Shared Key (PPSK)	✓
WiFi Speed Limiting	✓
Client Device Isolation	✓
WiFi Schedules	✓
RADIUS over TLS (RadSec)	✓
Dynamic RADIUS-assigned VLAN	✓
Hardware
Max. Power Consumption	13W
Includes PoE Adapter	✓
Supported Voltage Range	42.5–57V DC
Networking Interface	(1) 2.5 GbE RJ45 port
Weight	313 g
Enclosure Material	UV-stabilized polycarbonate
Mount Material	UV-stabilized polycarbonate
NDAA Compliant	✓
Certifications	CE, FCC, IC
Ambient Operating Temperature	-30 to 60° C
Ambient Operating Humidity	5 to 95% noncondensing
Software
Application Requirements	UniFi Network Version 10.1.85 and later
Mobile App	UniFi iOS™: Version 10.32.1 and later Android™: Version 10.35.1 and later

Package Contents:
1 x U7-Mesh
1 x Wall Mounting Kit
1 x PoE adapter
1 x AC Cable
