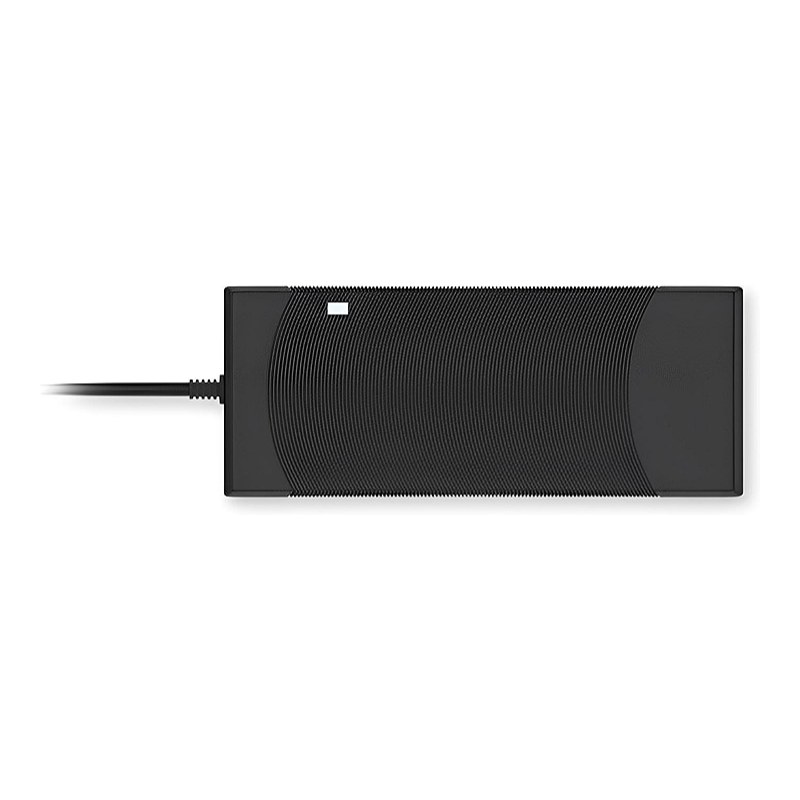

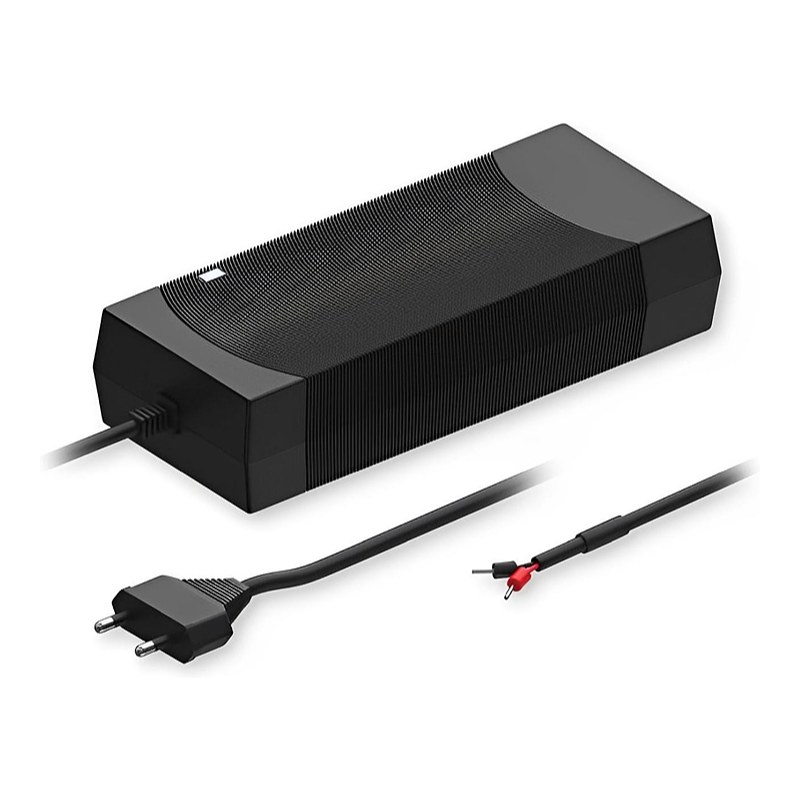

PR318EUA - Power Adapter, 50V, 2.6A, 130W
The Teltonika power adapter provides an output voltage of 50 V with a maximum current of 2.6 A and a power of up to 130 W.
It is equipped with a 2-pin output with sockets and is ideal for Teltonika products with PoE functionality.

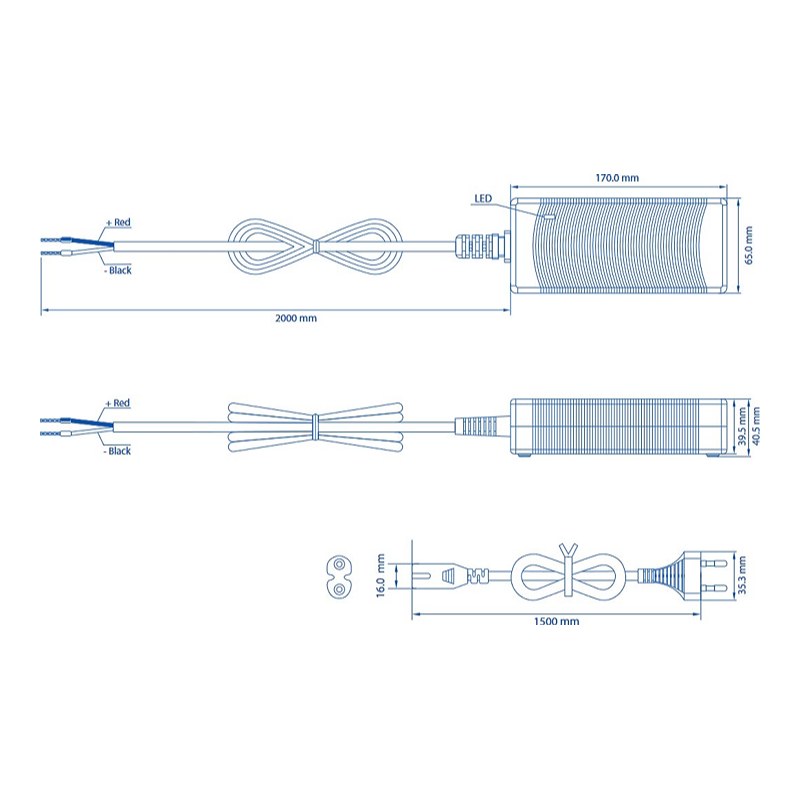

The AC power cable is 1.5 meters long, while the DC cable is 2 meters long, ensuring flexible installation.
|
Specifications |
|
Input voltage |
100 – 240 VAC |
|
Input frequency |
50 / 60 Hz |
|
Input current |
2.5 A |
|
Input connector |
EU (Type C) |
|
Output voltage |
50 VDC |
|
Output current |
2.6 A |
|
Output connector |
2-pin, with cord end terminals |
|
Weight |
500 g |
|
Input voltage range |
90 – 264 VAC |
|
Input frequency range |
47 – 63 Hz |
|
Maximum input inrush current |
50 A |
|
Output voltage maximum deviation |
47.5 – 52.5 VDC |
|
Short circuit protection |
Yes |
|
HIPOT (dielectric withstand test) |
Primary to Secondary: 4242 VDC |
|
MTBF |
50000 h |
|
PSU efficiency standard |
DoE Level VI |
|
Certification |
Safety: EN 60335-1:2012+A11:2014+A13:2017, EN 60335-2-29:2004+A2
2010+A11:2018:EN 62233:2008 EMC: EN 55014-1:2017, EN 61000-3-2:2014
EN 61000-3-3:2013, EN 55014-2:2015 (IEC 61000-4-2:2008, IEC 61000-4-4:2012,
IEC 61000-4-5:2014, IEC 61000-4-6:2013, IEC 61000-4-11:2004+A1:2017) |
