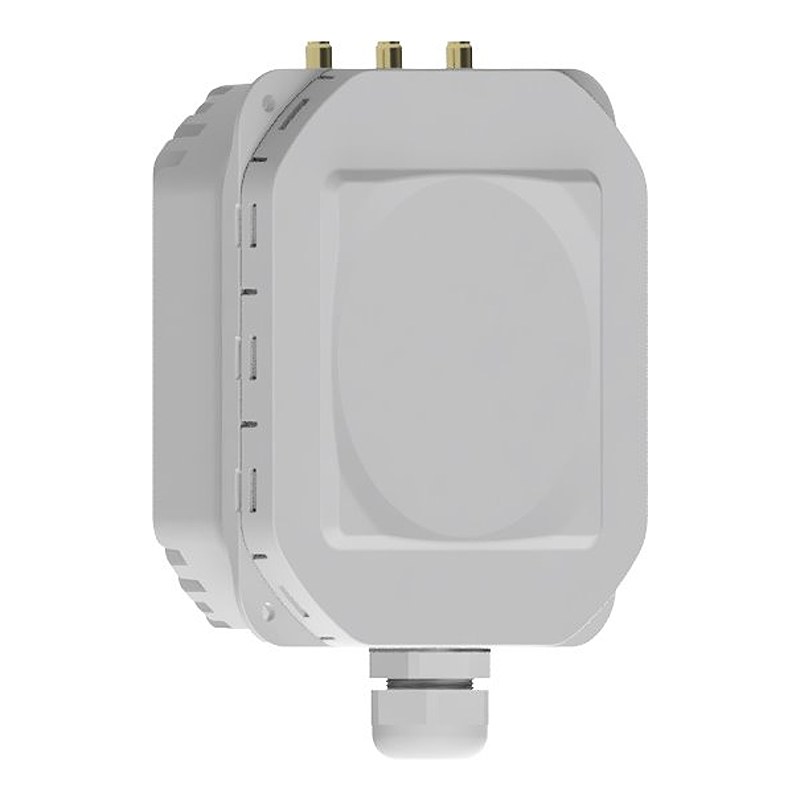

TNA-305X - Full-band 60 GHz Radio with 5-7 GHz Backup Link
The TNA-305X is Tachyon Networks' first full-band 60 GHz radio, featuring an integrated 5-7 GHz backup link (frequency range country-dependent). It is fully compatible with existing antenna kits and interoperable with the rest of the current radio lineup.
Key features include 57 to 71GHz full band support with AP/PTP/Client modes (software configurable), an integrated 5 to 7 GHz backup radio with internal or external antenna support (RP-SMA), and one 2.5Gbps Active PoE-in ethernet port. It also boasts a 2.4GHz management radio, GPS support, and a compact design.
|
Specifications |
|
Operating modes |
Station, Access Point, PTP (software configurable) |
|
Max STA count per AP |
Up to 32 stations |
|
Max EIRP (base) |
38dBm / higher when used with antenna kits |
|
Link encryption |
AES 128 + GCMP |
|
Frequency & supported channels |
Full band: 57-71 GHz: channels: 1-6; Half channels: 1-12 (see notes on support site about half channel support) |
|
Channel size options |
Full (2 GHz), half (1 GHz) (see notes on support site about half channel support) |
|
Station scheduling / Duplexing |
TDMA: dynamic scheduling mechanism / TDD |
|
TNA-305X Base Antenna |
16 dBi 3D beamforming phased array with +/- 45° azimuth (90° total) and +/- 25° elevation (50° total).
Beam size is: 30° azimuth x 30° elevation. Single linear polarization. |
|
5-7 GHz Specifications |
|
Operating modes |
Station, Access Point, PTP (software configurable) |
|
Link encryption |
AES 256 + GCMP |
|
RF |
WIFI-7 – Based / 5.1-7GHz (country dependent) |
|
TX Power |
+22dBm Combined (MCS0) / -93dBm @MCS0, -64dBm @MCS11 |
|
Channel size options |
20/40/80/160/240/320MHz |
|
Station scheduling / Duplexing |
OFDMA / TDD |
|
Antenna options |
Integrated 2x2 + 2x2 patch compatible with TNA-AK antenna kits
2x RP-SMA connectors (software selectable) for external antennas |
|
Software Specifications |
|
Max MTU size |
2024 b |
|
Networking mode |
Transparent bridge / IPv4 & IPv6 Supported |
|
VLAN capabilities |
Data VLAN (in station mode) & management VLAN |
|
Other features |
Traffic shaping (station mode), DHCP snooping, device discovery, speedtest, and more |
|
Management |
Web interface, SNMP v2 & v3, SNMP traps, & RESTful API (SSH available upon request) |
|
Hardware Specifications |
|
Wired Interfaces |
1 x 2.5G ethernet |
|
Management Interfaces |
2.4GHz WiFi7 w/ Internal Antennas |
|
GPS |
22 tracking / 66 acquisition-channel GPS receiver w/ DGPS |
|
Mount |
Pole or wall mountable via mounting backplate |
|
PoE input power |
Active PoE 38-57VDC (passive injector included) |
|
Certifications |
FCC/IC/CE/UK |
|
Operating temperature |
-30°C - 55°C |
|
Base Unit dimensions & weight |
Height: 13 cm, Width: 12 cm, Depth: 5.5 cm, 425 g |
|
LEDs |
Ethernet link status, wireless status, signal level, & power |
