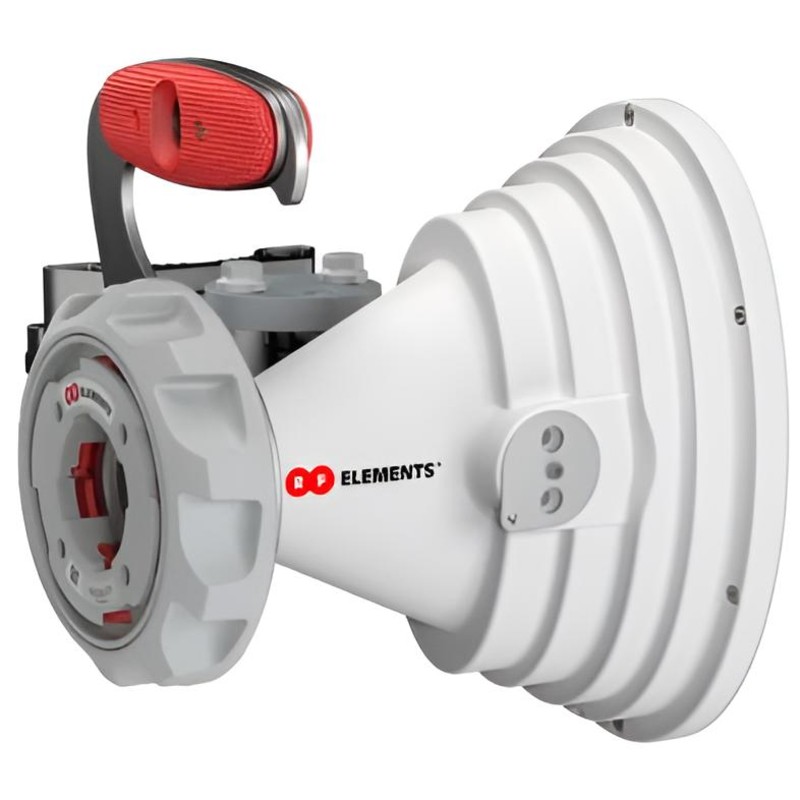

HG4-CC-A45 - Asymmetrical Horn Antenna, 17 dBi
The HG4-CC-A45 offers a unique set of features, combining a compact form factor with an asymmetrical beam pattern.
It provides increased gain, standard coaxial N Female connectors, and a new advanced, corrosion-resistant mounting system.
This antenna excels in environments where space is limited, such as dense cluster deployments or micro-PoPs.

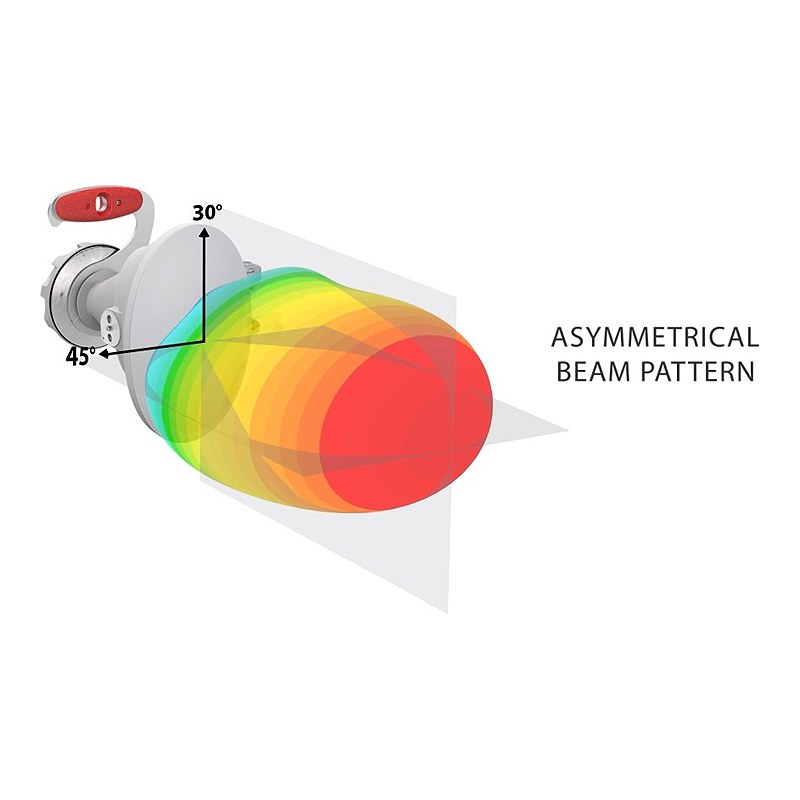

Its asymmetrical beam pattern delivers 17 dBi of gain along with excellent noise immunity.

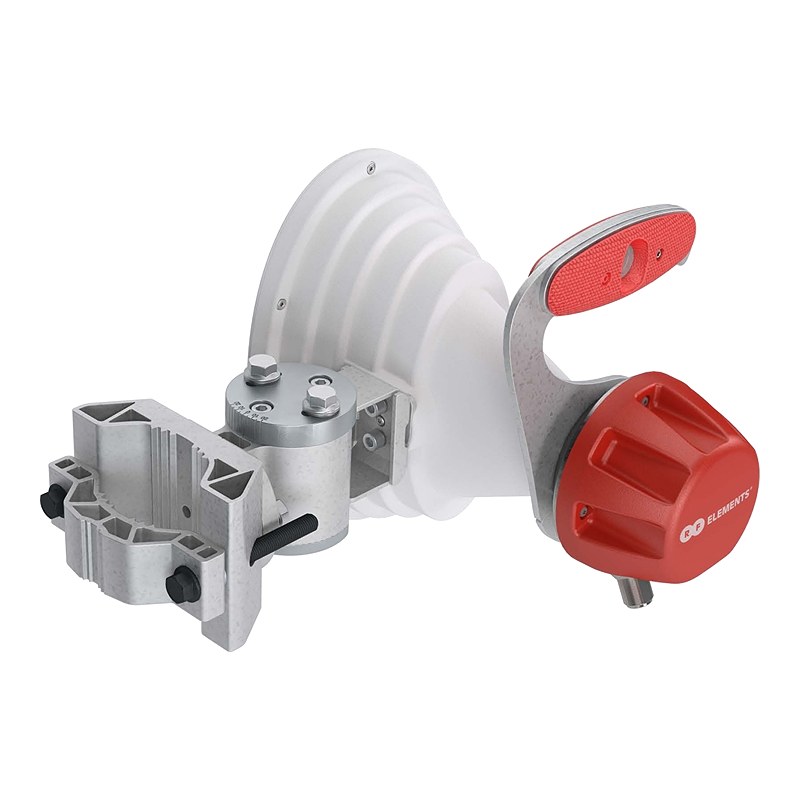

The HG4-CC-A45 is very compact, lightweight, and easy to install thanks to its UBR mount and integrated handle.
|
Specifications |
|
Antenna Connection |
2x N Female |
|
Antenna Type |
Asymmetrical Horn |
|

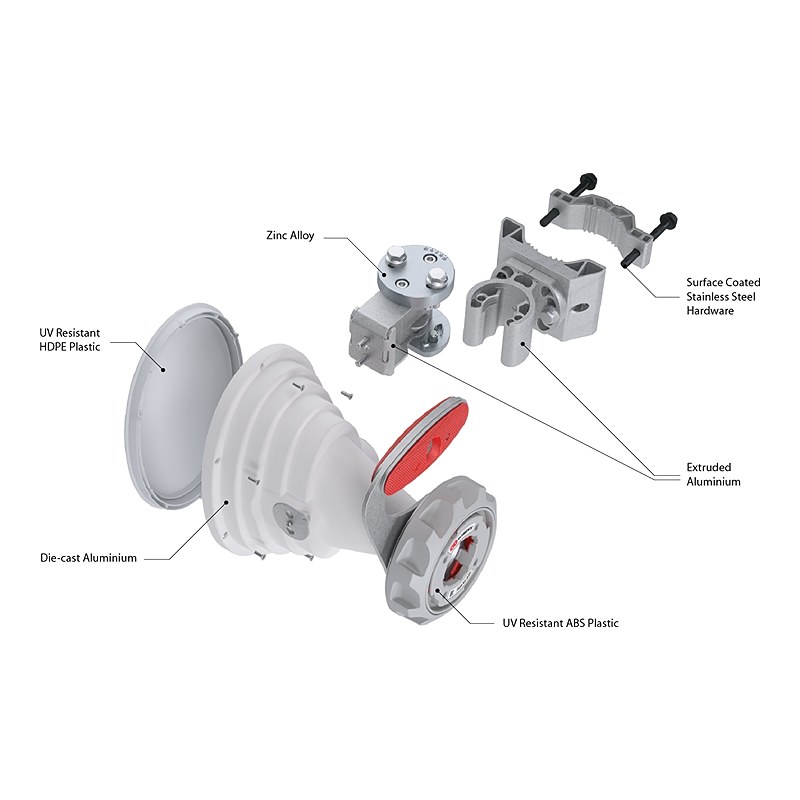

Materials |
UV Resistant ABS Plastic, Polyethylene
Aluminum, Stainless Steel |
|
Environmental |
IP55 |
|
Flame Rating |
UL 94 HB |
|
Pole Mounting Diameter |
30-80 mm |
|
Temperature |
-30°C to +55°C |
|
Wind Survival |
180 km/h |
|
Wind Load |
30/41 N - Front/Side at 160 km/h |
|
Mechanical Tilt |
± 25° |
|
PERFORMANCE |
|
Frequency Range |
5150 - 6400 MHz |
|
Gain |
17 dBi |
|
Azimuth Beam Width -3 dB |
H 31° / V 30° |
|
Elevation Beam Width -3 dB |
H 21° / V 20° |
|
Azimuth Beam Width -6 dB |
H 44° / V 45° |
|
Elevation Beam Width -6 dB |
H 30° / V 29° |
|
Front-to-Back Ratio |
30 dB |
