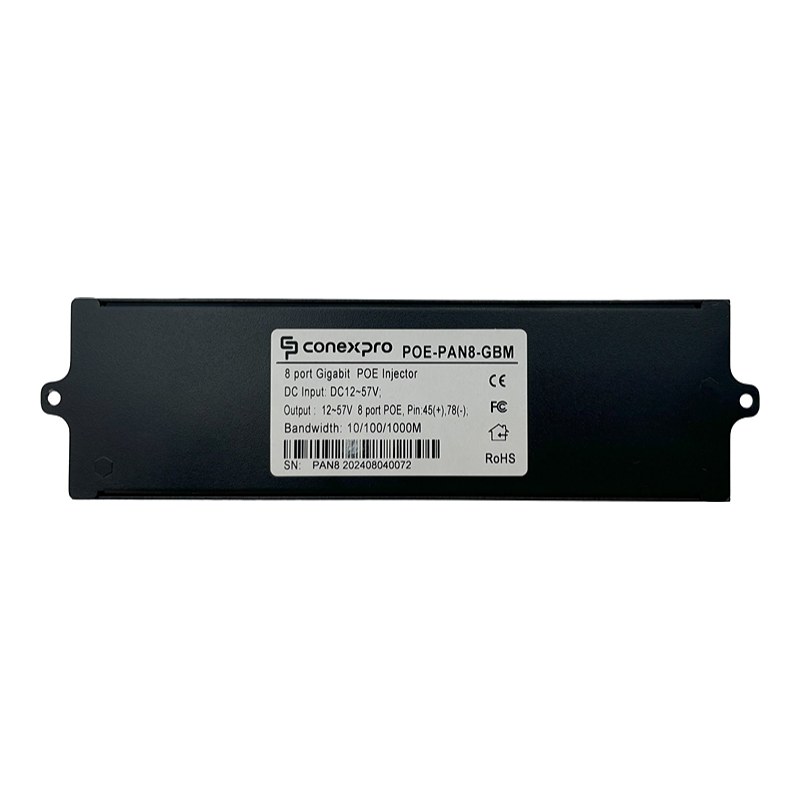

POE-PAN8-GBM - 8-Port Gigabit Passive PoE Injector Panel

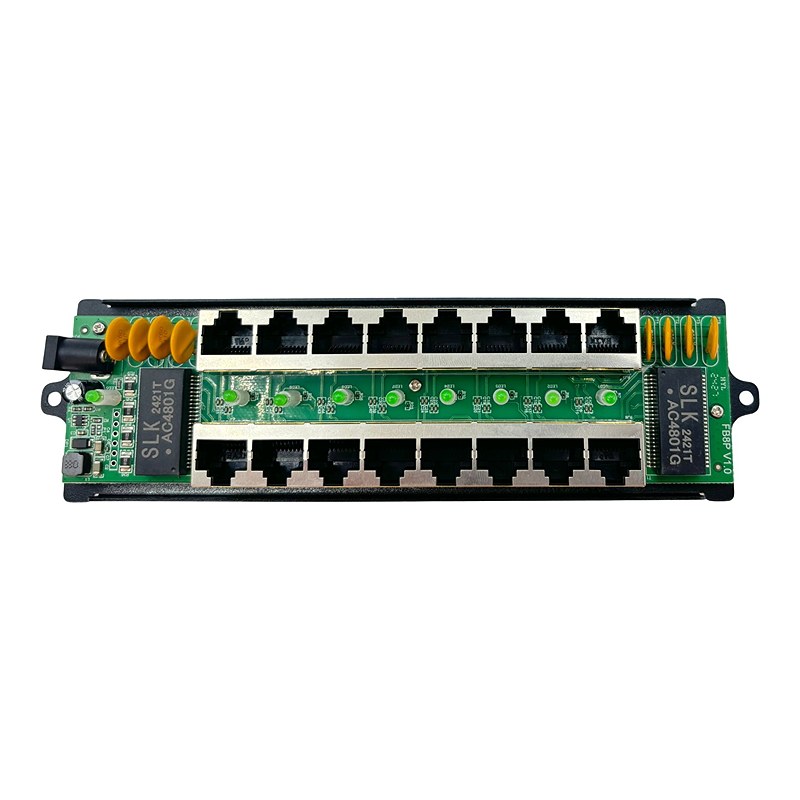

This passive Gigabit PoE injector, housed in a metal chassis, is designed to power up to eight devices that support passive PoE.
LAN ports connect to a switch or router, while PoE ports connect to passive PoE devices, supplying power through the Ethernet cable using pairs 4,5 (positive pole) and 7,8 (negative pole).

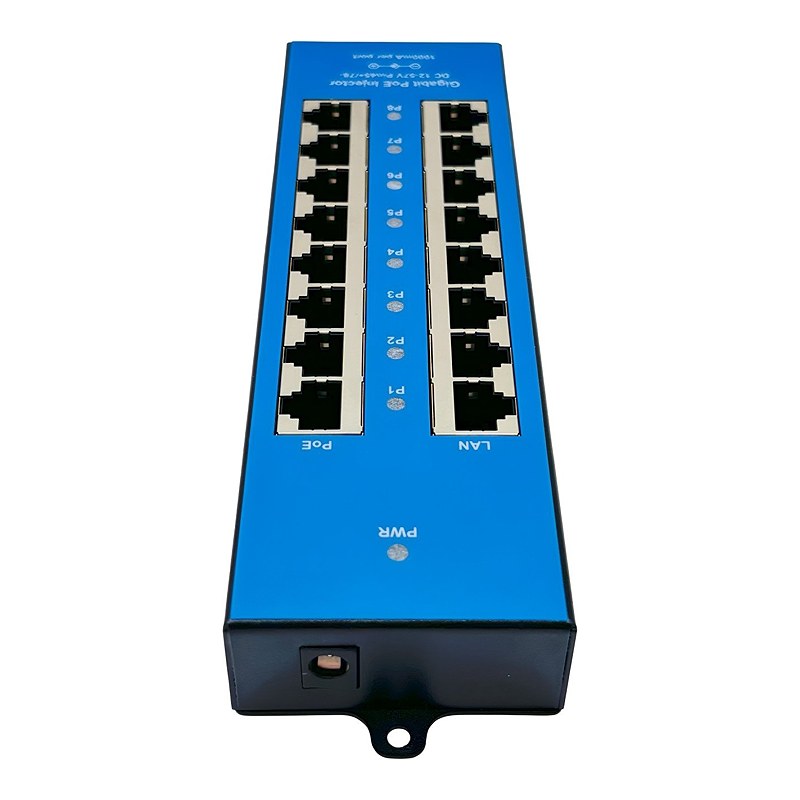

Power for the panel is provided via a standard 2.1/5.5 mm power connector.
It is compatible with voltages from 12 to 57 V DC, offering a maximum current of 1 A per port and a total maximum power of 200 W.
The power supply is not included; its parameters must be optimized according to the connected devices' power consumption.

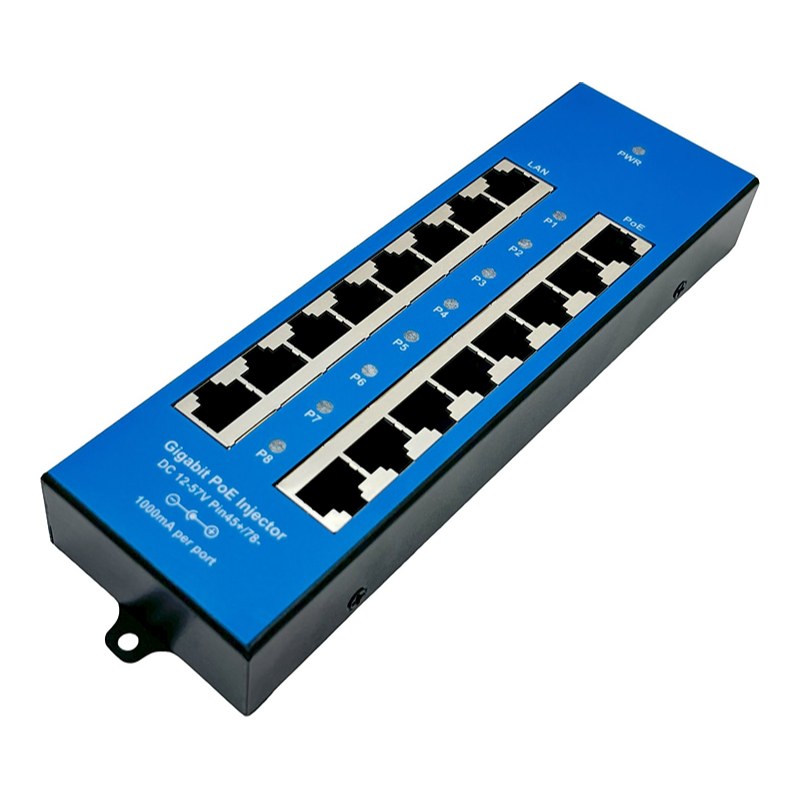

The panel features LED indicators for each port and for the connected input power adapter.
|
Specifications |
|
Product Name |
Conexpro passive Gigabit PoE panel, 8 ports |
|
Port Description |
8x copper cable RJ45 ports for Lan (Network) |
|
|
8x copper cable RJ45 ports for PoE (Power and Network) |
|
|
1x DC |
|
PoE Power Supply Mode |
B negotiation using pins 4,5+, 7,8- |
|
Network Medium |
1000BASE-TX: Cat5 and more UTP (≤100 meters) |
|
Thermal Protection |
>100°C |
|
Performance |
|
Working Rate |
10/100/1000 Mbps |
|
Network port protection |
meet with IEC61000-4-2 (ESD) |
|
MTBF |
100,000 hours |
|
PoE Standards |
|
PoE Standards |
Passive PoE (Mode B with power source voltage) |
|
Maximum Output Power |
200 W |
|
LEDs Indicator |
|
LEDs Indicator |
PoE working status |
|
Power |
|
DC input voltage |
12~57V, 2.1 mm standard DC inputs |
|
POE DC output voltage |
12V-57V; 1A Port Limit |
|
Working Environment |
|
Operating Temperature |
-20°～55°C |
|
Storage Temperature |
-20°～75°C |
|
Working Humidity |
10%～90%, non-condensing |
|
Storage Humidity |
10%～95%, non-condensing |
