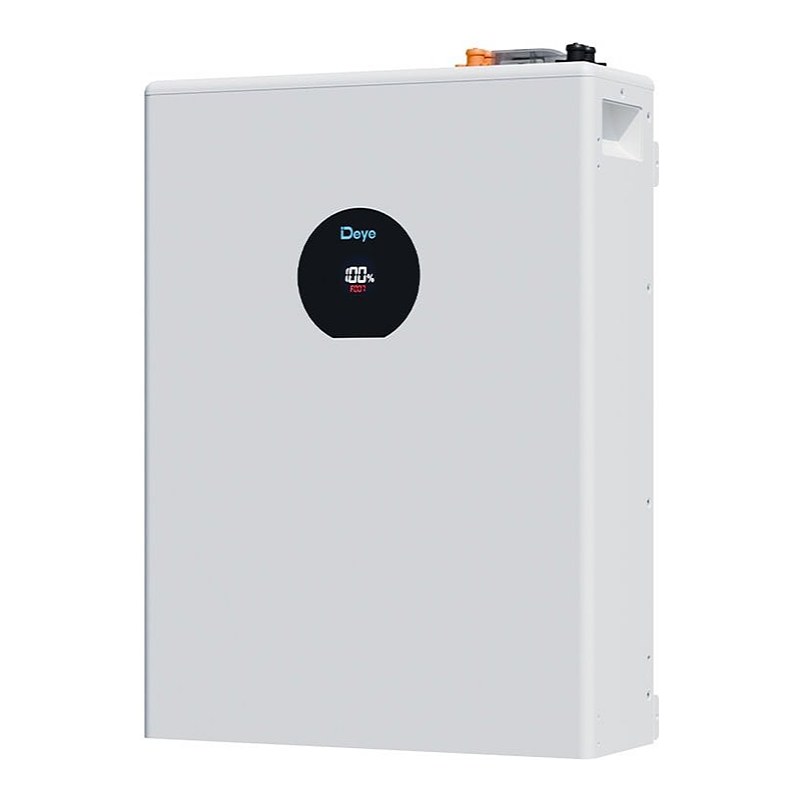

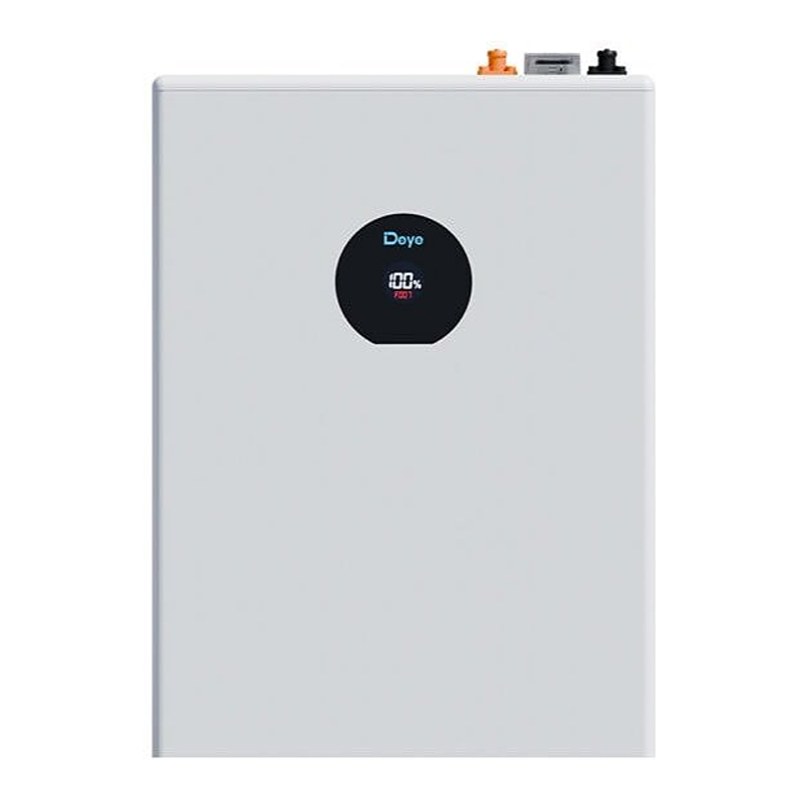

SE-F5 Pro - Home Energy Storage Battery
Deye SE-F5 Pro is a modern home energy storage battery based on lithium iron phosphate (LiFePO4) technology, designed for photovoltaic installations and off-grid and on-grid systems.
The unit features an integrated PACK design that reduces line loss and enhances energy density.
SE-F5 Pro is equipped with an advanced BMS with an active fuse and GaN MOSFETs that reduce losses by 50% and offer high-temperature resistance.
The battery supports parallel connection of up to 32 units (up to 64 with a CAN-Bridge module), allowing flexible system expansion.
It can be wall-mounted, floor-mounted or stack-mounted.
The built-in intelligent BMS protects against overcharging, over-discharging, short circuits, overheating and overcurrent.
The unit supports local monitoring (Bluetooth) and remote monitoring via the Deye app with an optional WiFi module.
|
Specifications |
|
Model |
SE-F5 Pro |
|
Nominal energy |
5.12 kWh |
|
Nominal capacity |
100 Ah |
|
Nominal voltage |
51.2 V |
|
Operating voltage range |
44.8 V – 57.6 V |
|
Cell type |
LiFePO4 (LFP) |
|
Recommended depth of discharge (DOD) |
90% |
|
Recommended charge current |
50 A |
|
Max. continuous charge current |
100 A |
|
Max. continuous discharge current |
100 A |
|
Peak current |
150 A (120 s) |
|
Cycle life |
≥6,000 cycles (25°C±2°C, 70% EOL) |
|
Energy throughput |
16 MWh |
|
Expandability |
max. 32 units in parallel (64 with CAN-Bridge) |
|

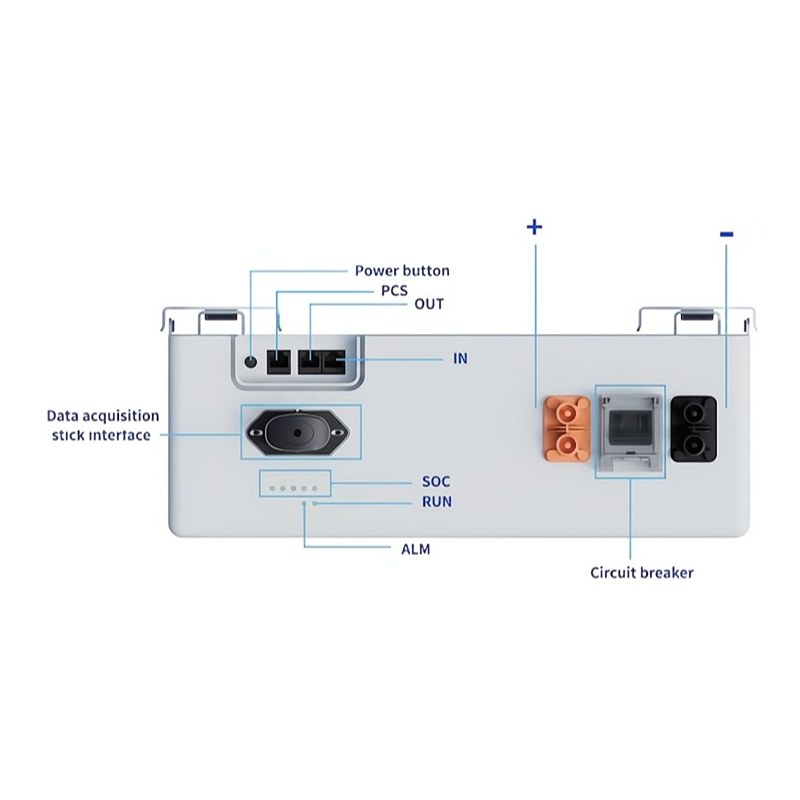

Communication interface |
CAN2.0 / RS485 / optional module (WiFi + Bluetooth + APP) |
|
Indicators |
LED (SOC, working, protecting) + buzzer |
|
IP rating |
IP21 |
|
Charging temperature range |
0°C to 55°C |
|
Discharging temperature range |
-20°C to 55°C |
|
Storage temperature range |
0°C to 35°C |
|
Relative humidity |
95% (non-condensing) |
|
Operating altitude |
≤3000 m |
|
Dimensions |
404 × 547 × 141 mm |
|
Installation method |
wall-mounted / floor-mounted / stack-mounted |
|
Certification |
UN38.3 / MSDS / CE / CB / VDE2510-50 / CEC |
