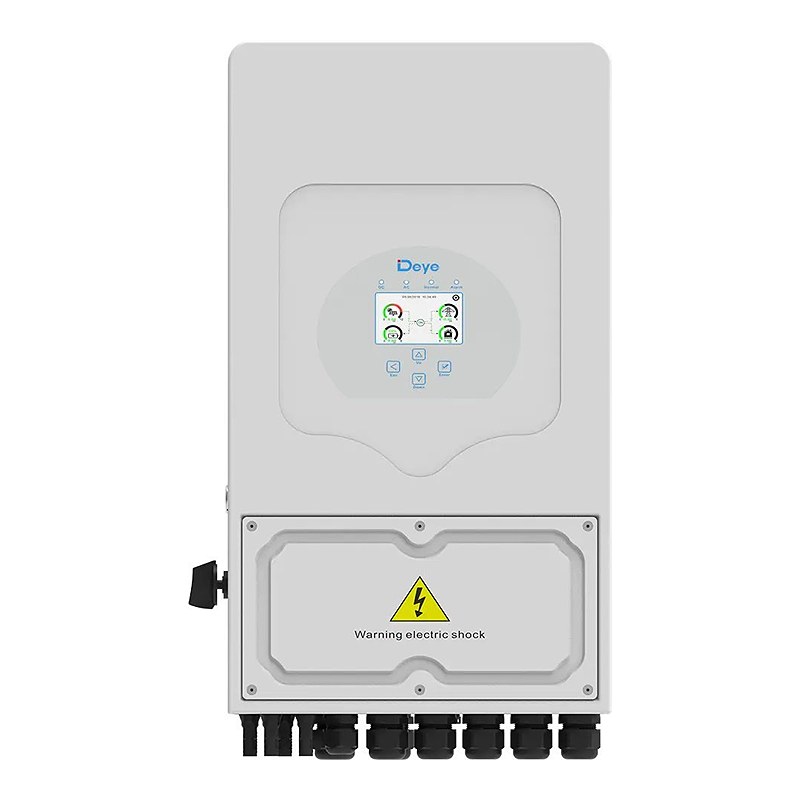

SUN-8K-SG05LP1-EU-AM2-P - 8 kW Hybrid 1-Phase Inverter
The 5th generation hybrid 1-phase inverter with a power of up to 8 kW is ideal for residential and light commercial use.
It maximizes self-consumption of solar energy, stores excess energy in batteries, and ensures power supply even during a grid outage.
It supports communication via RS485/CAN.
Thanks to the intelligent monitoring platform, Deye's full range of inverter products supports remote shutdown immediately in case of an accident.
Parameters setting and FW updates are done remotely, making the operation of the FVE easier.
A 10-Year Warranty is provided, covering all parts including labor for the first five years, and all parts except LCD, fan, and labor for the second five years.
|
Specifications |
|
Battery Type |
Lead-acid or Lithium-ion |
|
Battery Voltage Range(V) |
40-60 |
|
Max.Charging/Discharging Current(A) |
190 |
|
Charging Strategy for Li-ion Battery |
Self-adaption to BMS |
|
Number of Battery Input |
1 |
|
PV String Input Data |
|
Max. PV Access Power (W) |
16000 |
|
Max. PV Input Power（W） |
12800 |
|
Max. PV Input Voltage（V） |
500 |
|
Start-up Voltage（V） |
125 |
|
MPPT Voltage Range（V） |
150-425 |
|
Rated PV Input Voltage(V) |
370 |
|
AC Input/Output Data |
|
Rated AC Input/Output Active Power（W） |
8000 |
|
Max. AC Input/Output Apparent Power （VA） |
8800 |
|
Rated AC Input/Output Current（A） |
36.4/34.8 |
|
Max. AC Input/Output Current（A） |
40/38.3 |
|
Peak Power (off-grid)（W） |
2 times of rated power,10s |
|
Rated Input/Output Voltage |
220V/230V 0.85Un-1.1Un L+N+PE |
|
Rated Input/Output Grid Frequency/Range(Hz) |
50/45-55，60/55-65 |
|
Power Factor Adjustment Range |
0.8 leading-0.8lagging |
|
Total Current Harmonic Distortion THDi |
<3% (of nominal power) |
|
DC Injection Current |
<0.5%ln |
|
Efficiency |
|
Max. Efficiency |
97.6% |
|
Euro Efficiency |
96.5% |
|
MPPT Efficiency |
＞99% |
|
Equipment Protection |
|
Integrated |
DC Reverse Polarity Protection, AC Output Overcurrent Protection, Thermal Protection, AC Output Overvoltage Protection,
AC Output Short Circuit Protection, DC Component Monitoring, Arc Fault Circuit Interrupter (optional)
Anti-islanding Protection, DC Switch, Insulation Impedance Detection, Residual Current Detection |
|
Surge Protection Level |
TYPE II(DC),TYPE II(AC) |
|
Interface |
|
LCD/LED Display |
LCD |
|

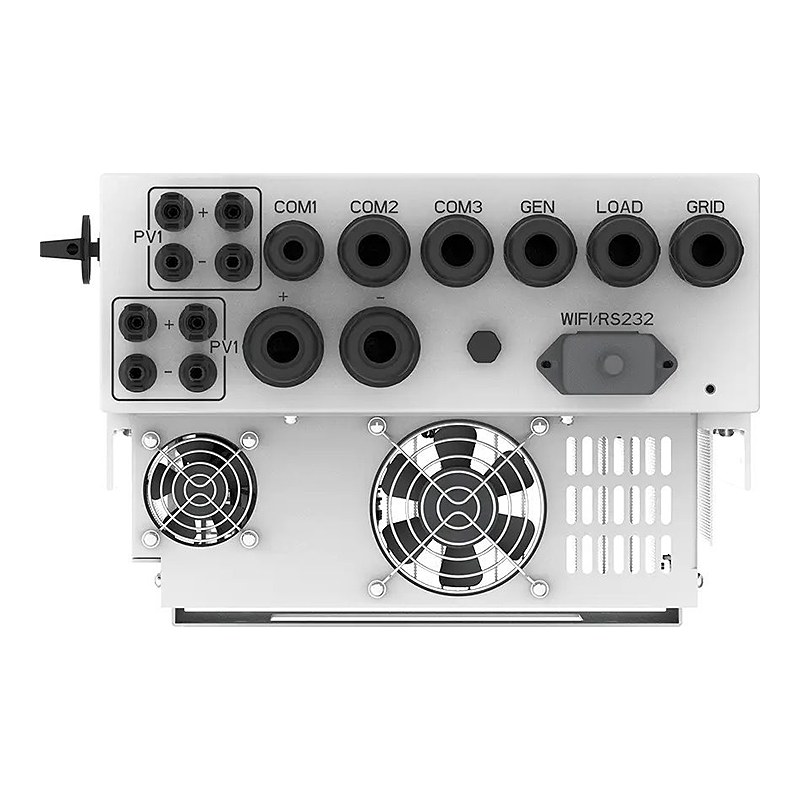

Communication Interface |
WIFI, RS485, CAN |
|
General Data |
|
Operating Temperature Range |
-40 to +60℃, >45℃ Derating |
|
Permissible Ambient Humidity |
0~100% |
|
Permissible Altitude |
2000m |
|
Noise(dB) |
＜45 |
|
Ingress Protection(IP) Rating |
IP 65 |
|
Inverter Topology |
Non-Isolated (solar), Isolated (battery) |
|
Over Voltage Category |
OVC II(DC),OVC III(AC) |
|

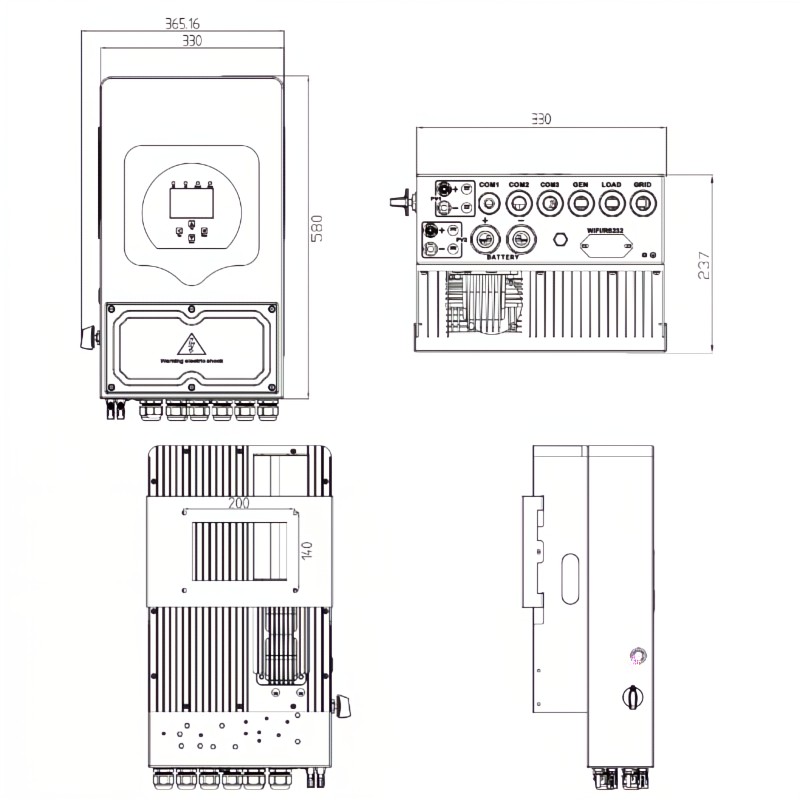

Cabinet size（W*H*D）[mm] |
330×580×232 (Excluding Connectors and Brackets) |
|
Weight[kg] |
24.9 |
|
Warranty |
5 Years/10 Years |
|
Type Of Cooling |
Intelligent air cooling |
|
Grid Regulation |
IEC 61727,IEC 62116,CEI 0-21,EN 50549，NRS 097,RD 140,UNE 217002,OVE-Richtlinie R25,G99,VDE-AR-N 4105 |
|
Safety EMC/Standard |
IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2 |
