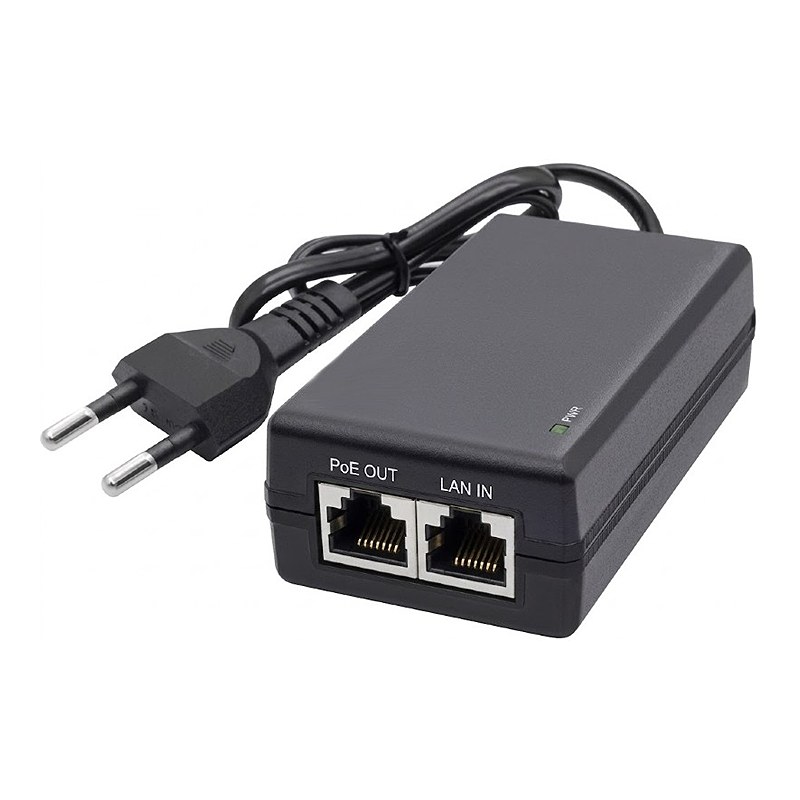

HX-PA4805G - 48v 24W Gigabit Power Supply + PoE Injector - WallplugOutput: 48V DC / 500mA
Input: 100 - 240VAC, 47 - 63 Hz, CE / UL / GS.
Origin: China
|
Specifications: |
|
Part # |
HX-P4805GD |
|
Port Rate
|
10/100/1000 Mbps |
|
Data pairs |
All four (1/2, 3/6, 4/5, 7/8) |
|
Power pairs |
4/5 (+), 7/8 (−) |
|
Cable length |
40cm |
|
Input Condition |
AC100~240V 50/60Hz 0.6A max |
|
Input Rated Voltage |
100Vac~200Vac |
|
Input Voltage Rate |
90Vac~264Vac |
|
Input Rated Frequency |
50/60Hz |
|
Input Frequency Range |
47Hz~63Hz |
|
Input Current |
0.6A Max |
|
Input Inrush Current |
30A Max |
|
Input No Load Power Consumption |
0.5 Watt Max @ 115Vac/230Vac |
|
Efficiency |
80% Min |
|
Rated Output Voltage & Current |
48v/0.5A |
|
Output Line Regulation |
+-1% |
|
Output Load Regulation |
+-5% |
|
Output Over Shoot |
10% Max |
|
Output Ripple and Noise |
1% Max |
|
Output Rising Time |
20ms Max @ 115Vac |
|
Output Hold-Up Time |
8ms Min @ 230Vac |
|
Protection |
OCP OVP SCP OPP |
|
Dielectric Withstand Voltage |
3KV 5mA 60s |
|
Leakage Current |
0.25mA @ 230Vac |
|
Dimension |
90x50x30mm |
|
Weight |
96g |
|
Operating Temperature Range |
0oC ~ +40oC |
|
Storage Temperature Range |
-20oC ~ +85oC |
