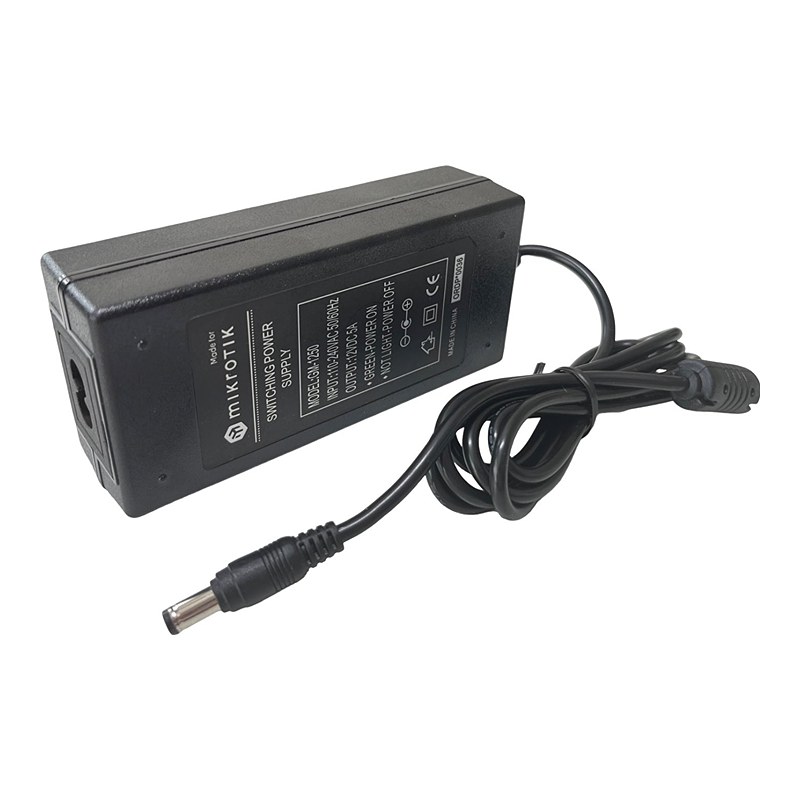

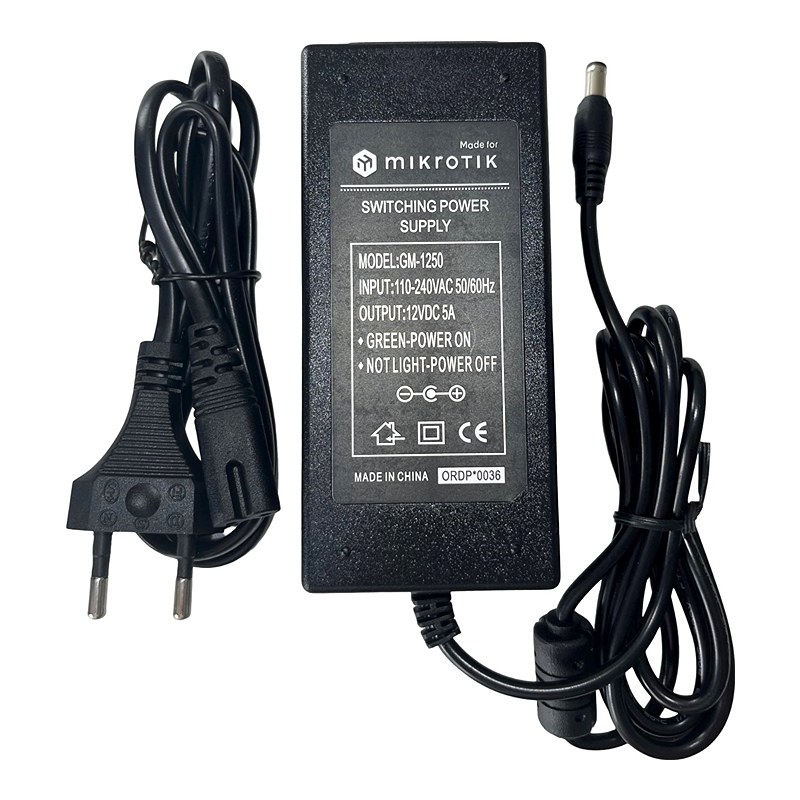

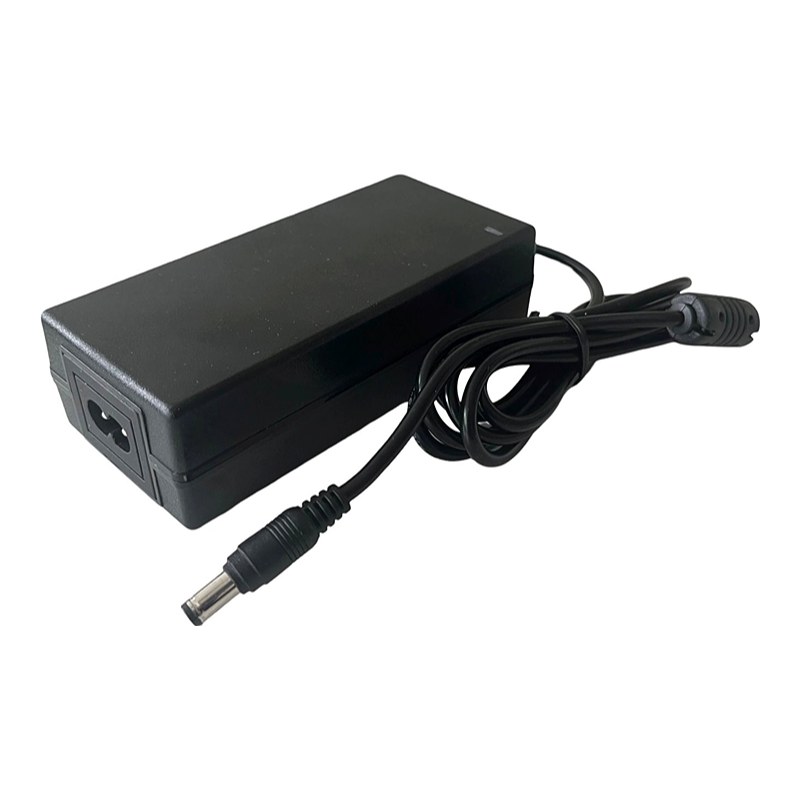

GM-1250 - Conexpro Made for MikroTik Power adapter 12V, 5A
Power adapter with output voltage 12 V DC, maximum current 5 A is equipped with standard connector 5.5/ 2.1 mm.
Is ideal and practical for powering devices such as MikroTik, selected Wi-Fi routers, shorter LED strips and others.
This versatile adapter provides a maximum output power of 60W and has a direct installation in a 230V AC outlet.
|
Specifications: |
|
Input Rated Voltage |
100Vac~240Vac |
|
Input Voltage Rate |
90Vac~264Vac |
|
Input Rated Frequency |
50/60Hz |
|
Input Frequency Range |
47Hz~63Hz |
|
Input Current |
0.6A Max |
|
Input Inrush Current |
30A Max |
|
Input No Load Power Consumption |
0.5 Watt Max |
|
Efficiency |
80% Min |
|
Rated Output Voltage & Current |
12v/5.0A |
|
Output Line Regulation |
+-1% |
|
Output Load Regulation |
+-5% |
|
Output Over Shoot |
10% Max |
|
Output Ripple and Noise |
1% Max |
|
Output Rising Time |
20ms Max @ 115Vac |
|
Output Hold-Up Time |
8ms Min @ 230Vac |
|
Protection |
OCP OVP SCP OPP |
|
Dielectric Withstand Voltage |
3KV 5mA 60s |
|
Leakage Current |
0.25mA @ 230Vac |
|
DC Plug Προδιαγραφές |
5.5x2.1x11mm |
|
Dimension |
50x120x35mm |
|
Operating Temperature Range |
0oC~40oC |
|
Storage Temperature Range |
-20oC~+85oC |
