NS2(EU)
NS2 Nano Station 2, 802.11b/g AP-CPE
[NS2(EU)]
The product is
no longer available
Prices exclude VAT

NS2 Nano Station 2, 802.11b/g AP-CPE

The device designed to advance the Global Wireless ISP industry to the next level. Featuring a compact indoor/outdoor design and an interface so intuitive even the most technically challenged can instantly become experts.

But, don't be fooled; it is as powerful as it is simple. Nanostation packs some phenomenal performance with a revolutionary design combining a hi-gain 4 antenna system, advanced radio architecture, and highly researched and developed firmware technology allowing throughput, stability, and capacity performance rivaling even the highest-end WiMax networks.

System Information :
Processor Specs Atheros AR2316 SOC, MIPS 4KC, 180MHz
Memory Information 16MB SDRAM, 4MB Flash
Networking Interface 10/100 BASE-TX (Cat. 5, RJ-45) Ethernet Interface
Physical - Electrical - Environmental :

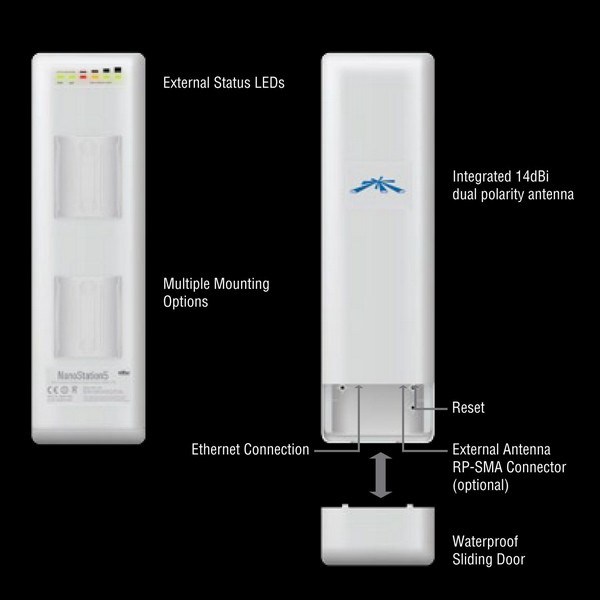

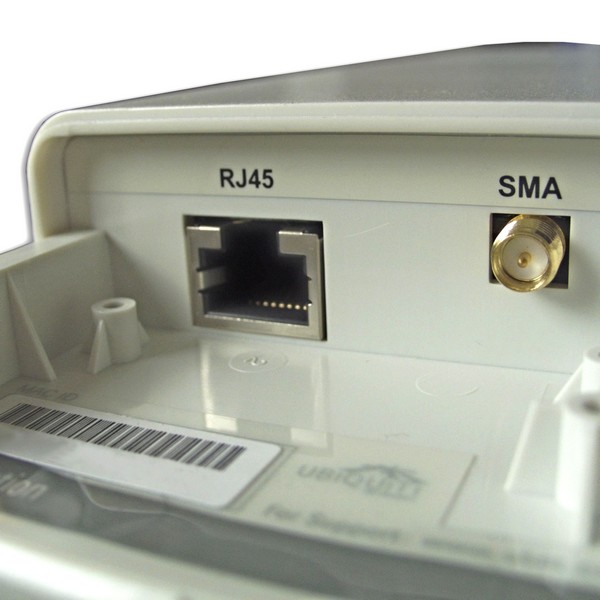

Antenna Integrated 10dBi Dual Pol + External RP-SMA
TX Power 26dBm, +/-2dB
RX Sensitivity -97dBm +/-2dB
Outdoor Range Over 15Km
TCP/IP Throughput 25Mbps+
Enclosure Size 26.4 x 8 x 3cm
Weight 0.4Kgr
Enclosure Characteristics Outdoor UV Stabalized Plastic
Mounting Kit Pole Mounting Kit included
Max Power Consumption 6 Watts
Power Supply 15V, 0.8A (12 Watts). Supply with POE injector included
Power Method Passive Power over Ethernet (pairs 4,5+; 7,8 return)
Operating Temperature -20C to 70C
Operating Humidity 5 to 95% Condensing
Shock and Vibration ETSI300-019-1.4


Additional Images:
