The product is
no longer available |
| Prices exclude VAT |
|
|

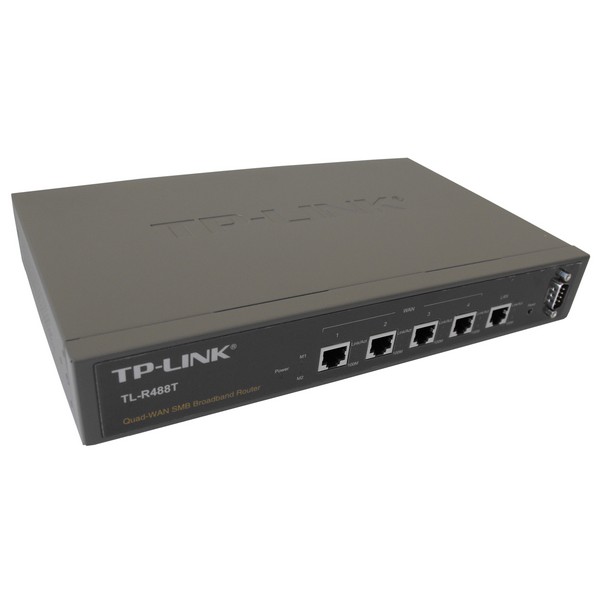

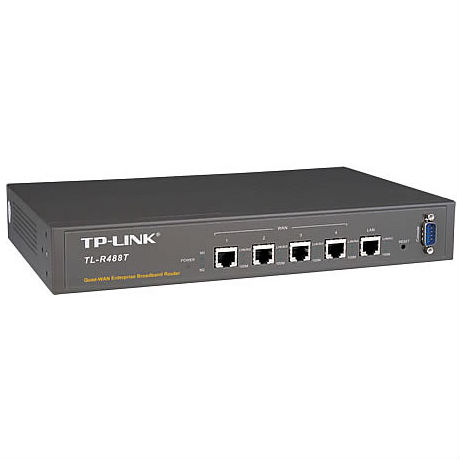

The TL-R488T adopts Intel IXP network processors, main frequency up to 533MHz, multi-CPU distributed architecture, to ensure high performance and high availability. Additionally, the 6-layer PCB, the built-in high-redundancy power module feature a new architecture that dramatically stretches the performance of the router by enabling stable connections.
The TL-R488T features four WAN ports, which allows four connections to the Internet at the same time, provides you with quad-bandwidth access, and gives you the ability to enjoy more Internet sources from different ISPs. With fail-over and automatic load balancing, no manual work should ever be required.
The TL-R488T provides all normal settings of broadband router, it features much more advanced functions, such as Port Mirror, Port VLAN, UPnP, VPN Pass-through, Firewall and System Log.
The TL-R488T provides friendly configuration interface for easy using. With multiple functions, high-reliability, and high-security, it widely meets enterprise, organ, Internet cafe, broadband community, and school networks new and changing requirements.
| Software Specification |
|
Standards and Protocols
|
IEEE 802.3, 802.3u, 802.3z, 802.3ab, 802.3x, 802.1x,
TCP/IP, DHCP, ICMP, NAT, PPPoE, SNTP, HTTP, DNS
|
|
Basic Function
|
DHCP Server
|
|
DHCP Client
|
|
MAC Address Modify/Clone
|
|
VPN Pass-through
|
|
Static Routing
|
|
Dynamic DNS
|
|
QoS
|
IP-Based QoS
|
|
Port Bandwidth Control
|
|
IP Connection Session Control
|
|
IP Bandwidth Control
|
|
Connection Session List
|
|
Port Settings
|
Port-based VLAN
|
|
Port Mirrorring
|
|
Flow Statistics
|
|
LAN and WAN Port Setting
|
|
Forwarding Rules
|
Virtual Server
|
|
Special Application
|
|
Static Routing
|
|
DMZ Host
|
|
UPnP
|
|
Firewall Function
|
Firewall Rules Setting
|
|
MAC Address Filtering
|
|
Domain Name Filtering
|
|
IP/MAC Address Binding
|
|
Ignore Ping Packet From WAN Port
|
|
DoS Protection
|
|
Scan Protection
|
|
IP Packets Containing Options
|
|
Suspicious Package Detection
|
|
System Function
|
Remote Management
|
|
System Log
|
|
Configuration File Uploading and Downloading
|
|
Web Upgrade
|
|
HTTPS Configuration
|
|
New Quad-WAN Function
|
Flow Statistics
|
|
WAN Load Balancing
|
Bandwidth Occupancy
|
|
WAN IP Tracing
|
|
WAN Bandwidth Percentage Display
|
|
LAN IP Statistics
|
|
Detecting Online
|
ICMP Detecting
|
|
DNS Detecting
|
| Hardware Specification |
| Solution |
Intel IXP Network Processor, Multi-CPU distributed processing,
main frequency up to 533MHz
|
|

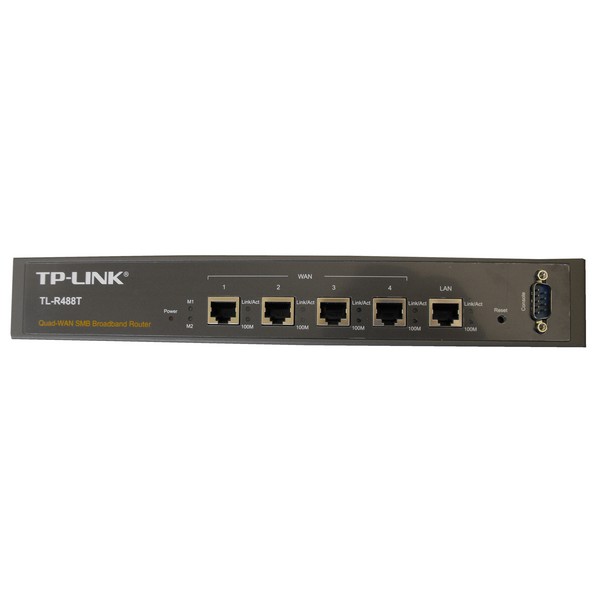

Ports
|
LAN
|
1 10/100M Auto-Negotiation RJ45 ports (Auto MDI/MDIX)
|
|
WAN
|
4 10/100M Auto-Negotiation RJ45 ports (Auto MDI/MDIX)
|
|
1 Console (RS232 DB9 Male)
|
|
Network Media
|
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100O STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100O STP (maximum 100m)
|
|
LED Indicators
|
LAN/WAN
|
Link/Act, 100Mbps
|
|
Else
|
Power, M1, M2
|
|
Dimensions(W*D*H)
|
11.6*7.1*1.7 in.(294*180*44 mm)
|
|
Environment
|
Operating Temperature: 0?~40? (32?~104?)
Storage Temperature: -40?~70? (-40?~158?)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
|
|
Power and Consumption
|
Input: 100-240VAC; 50/60Hz
Consumption: 4.1W (Max)
|
|
