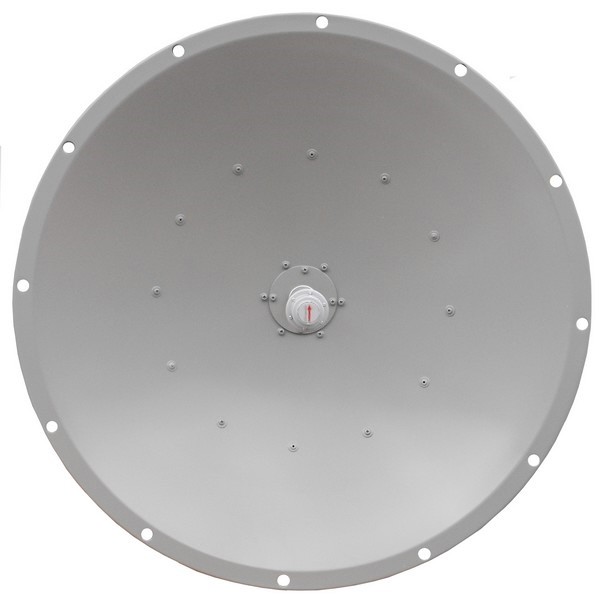

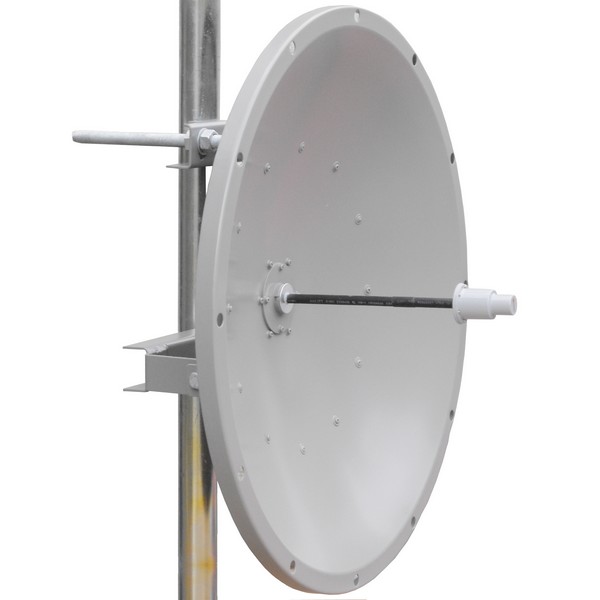

The new SD5WR29INF Solid Dish antenna by e-zy.net offer the system engineer the best performance available on the market. The antennas meet the most stringent specifications for point to point BackHaul antennas.
The antenna frequency range is from 5150 to 5850 MHz and comes with 29dBi gain.
The antenna can be used in Horizontal or Vertical Polarization with a tight beam-width of 6o

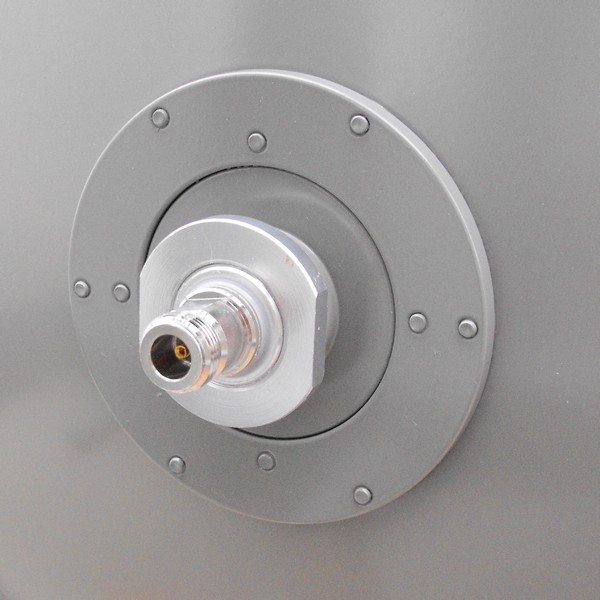

The unique N-Type female FeedHorn system is available in a single polarization version which can be mounted for either vertical or horizontal polarization.

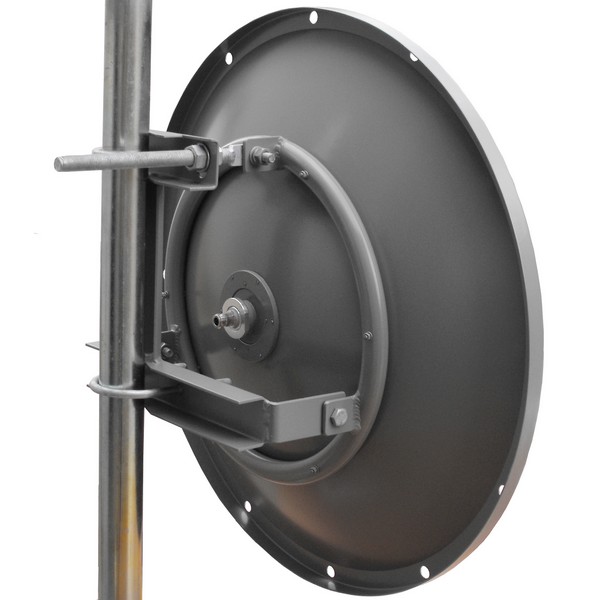

The SD5WR29INF Solid Dish Antenna comes equipped with heavy duty Mounting Bracket which provides ± 35o degrees of up/down while assures the antenna's longevity.
An optional fiberglass radome is available for added environmental protection.
|
Specifications |
|
Freq. Range |
5150-5850 MHz |
|
Bandwidth |
700MHz |
|
Gain |
29dBi |
|
V.S.W.R |
<1.5 |
|
Horizontal BeamWidth |
6º |
|
Vertical BeamWidth |
6º |
|
Front to Back Ratio |
>35dB |
|
Max Power |
100 W |
|
Polarization |
Rotatable (Ver or Hor) |
|
Impedance |
50 ohm |
|
Connector |
N-Type Female (embedded) |
|
Antenna Dimensions |
Diameter 600 mm |
|
Weight |
5 Kg |
|
Material |
Powder Coated Steel |
|
Color |
Grey |
|
Mounting mast diameter |
Ø50 to 150mm |
