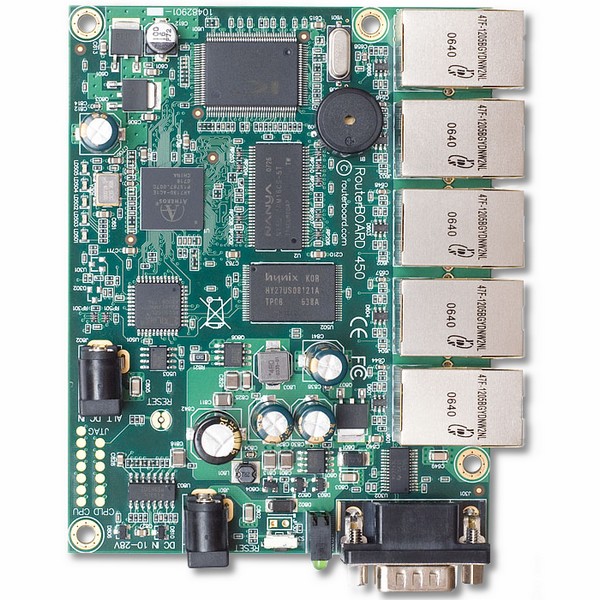

Introducing the RouterBOARD 450 MiniRouter.
Description:
The RB450 is a five port ethernet router. The RB450 is replacing rb150, but introduces at least three times better thoughput.
The heart of this device is the new Atheros CPU which makes this tiny device a quick one. Tests show that the RB400 series is faster than any other low cost product by mikrotik, making the RB400 series fit right behind RB600 and RB1000.
RB450 includes RouterOS - the operating system, which turns this powerful system into a highly sophisticated router / firewall or bandwidth manager.
One small device - with all the power of RouterOS. At a very special price.
|
RB450 Specifications : |
|
Memory |
32MB SDRAM onboard memory chip |
|
Processor |
Atheros AR7130 300MHz embedded processor |
|
Boot loader |
RouterBOOT, 1Mbit Flash chip |
|
Data storage |
64MB onboard NAND memory chip |
|
Ethernet ports |
Five 10/100 Mbit/s Fast Ethernet port supporting Auto-MDI/X |
|
MiniPCI slot |
None |
|
Extras |
Reset switch, Beeper |
|
Serial ports |
One DB9 RS232C asynchronous serial port |
|
LEDs |
Power, NAND activity, 5 user LEDs |
|
Power options |
Power over Ethernet: 10..28V DC (except power over datalines).
Power jack: 10..28V DC |
|
Power Consumption |
~3W without extension cards, maximum – 12 W |
|
Dimensions |
90 mm x 115 mm |
|
Weight |
105 grams |
|
Currently supported OS |
RouterOS 3.0.x |
|
RouterOS License |
Level 5 |
