The product is
no longer available |
| Prices exclude VAT |
|
|

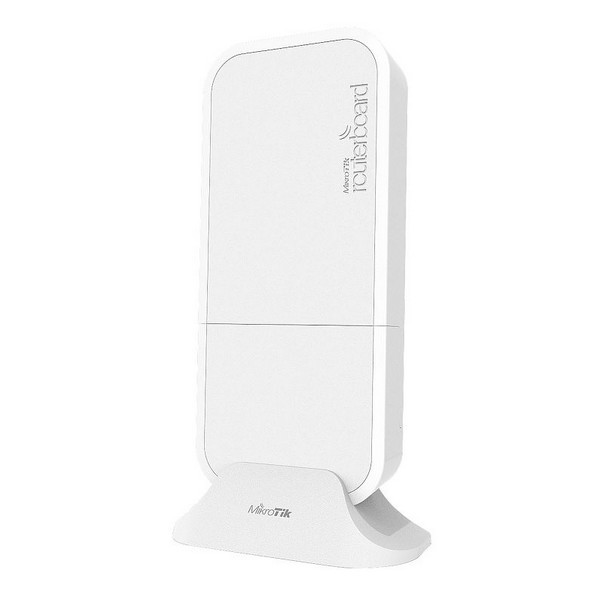

wAP ac 4G kit
A small package with a huge ambition – the wAP ac 4G is an extremely cost-effective dual-band (2.4 / 5 GHz) home access point based on our popular weatherproof wAP form factor.

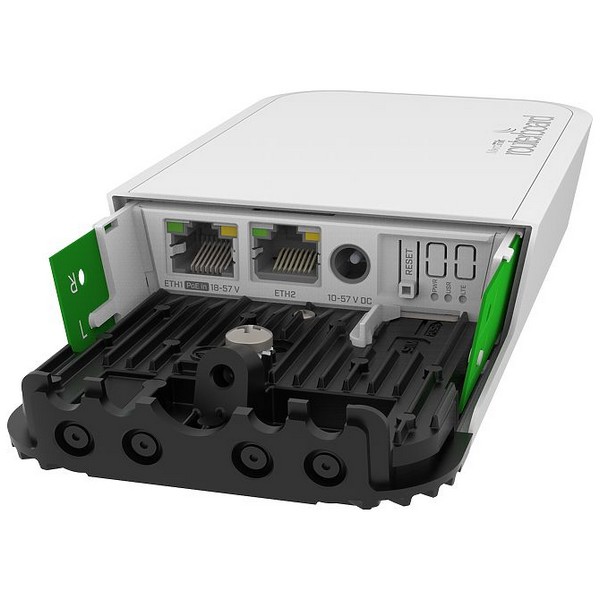

It has two Gigabit Ethernet ports – you can use the device as a wired router with LTE backup via the Micro SIM slot. Alternatively, you can also enjoy wireless experience anywhere – indoors or outdoors.
wAP ac 4G is designed to deliver strong and reliable connection in almost any situation and weather conditions. It can withstand temperatures from -30 C° to +60 C and can be easily mounted on walls, ceilings or poles.
Don’t be fooled by the compact size – this device is powered by a four-core 716 MHz CPU and 128 MB RAM, capable of handling heavy loads.
Dual-chain 2.4 GHz and dual-chain 5GHz wireless for dual concurrent AP coverage will solve most interference issues in a crowded environment. For example, you can simultaneously use the 2.4 GHz channel for all your household mobile devices and reserve the 5GHz channel for tasks that are sensitive to packet loss – such as streaming high-quality videos.
RBwAPGR-5HacD2HnD&R11e-4G includes LTE modem that supports International/USA LTE bands FDD bands 3 (1800MHz), 7 (2600MHz), 20 (800MHz) and 31 (450MHz), as well as LTE TDD bands 41n (2500MHz), 42 (3500MHz) and 43 (3700MHz).
High performance, great value, astonishing durability, functional and non-intrusive design – wAP ac 4G will meet most demands without making sacrifices.
|
Specifications |
|
Product code |
RBwAPGR-5HacD2HnD&R11e-4G |
|
Architecture |
ARM 32bit |
|
CPU |
IPQ-4018 |
|
CPU core count |
4 |
|
CPU nominal frequency |
716 MHz |
|
License level |
4 |
|
Size of RAM |
128 MB |
|
Storage size |
16 MB |
|
Storage type |
FLASH |
|
Tested ambient temperature |
-30°C to 60°C |
|
Powering |
|
PoE in |
802.3af/at |
|
PoE in input Voltage |
18-57 V |
|
Number of DC inputs |
2 (DC jack, PoE-IN) |
|
DC jack input Voltage |
10-57 V |
|
Max power consumption |
14 W |
|
Max power consumption without attachments |
10 W |
|
Mobile |
|
LTE Category |
4 (150Mbps Downlink, 50Mbps Uplink) |
|
LTE FDD bands |
3 (1800MHz) / 7 (2600MHz) / 20 (800MHz) / 31 (450MHz) |
|
LTE TDD bands |
41n (2500MHz) / 42 (3500MHz) / 43 (3700MHz) |
|
Wireless |
|
AC speed |
AC1200 |
|
Wireless 2.4 GHz Max data rate |
300 Mbit/s |
|
Wireless 2.4 GHz number of chains |
2 |
|
Wireless 2.4 GHz standards |
802.11b/g/n |
|
Antenna gain dBi for 2.4 GHz |
2.5 |
|
Wireless 2.4 GHz chip model |
IPQ-4018 |
|
Wireless 2.4 GHz generation |
Wi-Fi 4 |
|
Wireless 5 GHz Max data rate |
867 Mbit/s |
|
Wireless 5 GHz number of chains |
2 |
|
Wireless 5 GHz standards |
802.11a/n/ac |
|
Antenna gain dBi for 5 GHz |
2.5 |
|
Wireless 5 GHz chip model |
IPQ-4018 |
|
Wireless 5 GHz generation |
Wi-Fi 5 |
|
Ethernet |
|
10/100/1000 Ethernet ports |
2 |
|
Peripherals |
|
Number of SIM slots |
1 Modem (Micro SIM) |
|
MiniPCI-e slots |
1 |

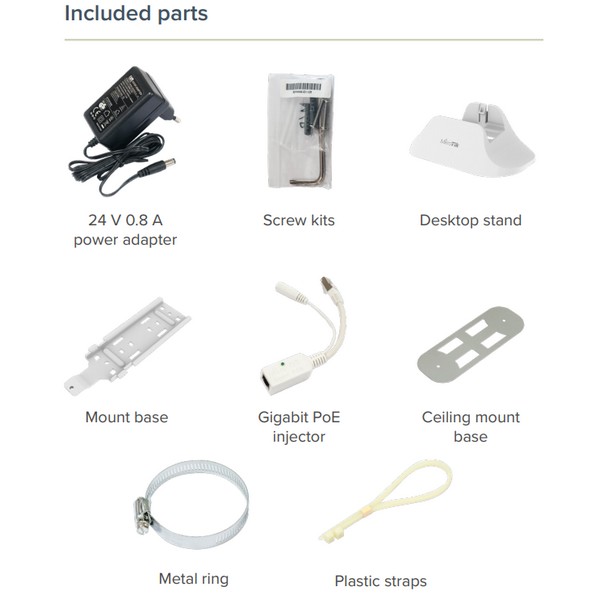

| Package Contents: |
|---|
| 1 x wAP ac 4G
|
| 1 x 24V 0.8A power adapter
|
| 1 x Gigabit PoE Injector
|
| 1 x K-52 screw kit
|
| 1 x wAP mount bracket
|
| 1 x wAP desktop stand
|
| 1 x Plastic zip tie
|
| 1 x Metal ring |
| Additional Images: |
|---|
 |
 |
|
