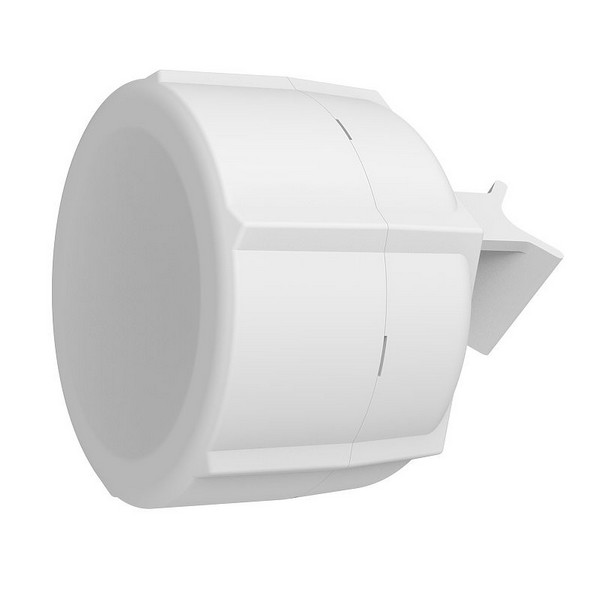

SXT 4G kit
The SXT 4G kit (product code RBSXTR&R11e-4G) is a device for remote locations that are within cellular network coverage. However, due to it’s professional LTE chip design and high gain antenna, it can provide connectivity for your building even where cell phones can’t.
The unit is equipped with two Ethernet ports (the second port has PoE-out functionality), so you can use it to power up another device. The unit includes a 24 V power supply, but can support full range of 12-57 V and 18-57 V with PoE-Out and is 802.3af/at compliant.
The device has a built in high quality 4G/LTE Category 4 modem for speeds of up to 150 Mbit/s downlink and 50 Mbit/s uplink, as well as two Micro SIM slots for backup link.
RBSXTR&R11e-4G includes LTE modem that supports LTE FDD bands 3 (1800MHz), 7 (2600MHz), 20 (800MHz) and 31 (450MHz), as well as LTE TDD bands 41n (2500MHz), 42 (3500MHz) and 43 (3700MHz).
|
Specifications |
|
Mode button |
Yes |
|
Number of SIM slots |
2 Modem (Micro SIM) |
|
MiniPCI-e slots |
1 |
|
Other |
|
10/100 Ethernet ports |
2 |
|
Peripherals |
|
2G bands |
2 (1900MHz) / 3 (1800MHz) / 5 (850MHz) / 8 (900MHz) |
|
3G bands |
1 (2100MHz) / 2 (1900MHz) / 5 (850MHz) / 8 (900MHz) |
|
LTE Category |
4 (150Mbps Downlink, 50Mbps Uplink) |
|
LTE FDD bands |
3 (1800MHz) / 7 (2600MHz) / 20 (800MHz) / 31 (450MHz) |
|
LTE TDD bands |
41n (2500MHz) / 42 (3500MHz) / 43 (3700MHz) |
|
Ethernet |
|
PoE-out ports |
Ether2 |
|
PoE out |
Passive PoE up to 57V |
|
Max out per port output (input < 30 V) |
600 mA |
|
Max out per port output (input > 30 V) |
400 mA |
|
Max total out (A) |
600 mA |
|
Mobile |
|
PoE in |
802.3af/at |
|
PoE in input Voltage |
12-57 V |
|
Number of DC inputs |
1 (PoE-IN) |
|
Max power consumption |
19 W |
|
Max power consumption without attachments |
6 W |
|
PoE-out |
|
Product code |
RBSXTR&R11e-4G |
|
Architecture |
MIPSBE |
|
CPU |
QCA9531 |
|
CPU core count |
1 |
|
CPU nominal frequency |
650 MHz |
|
Dimensions |
140 x 140 x 103 mm |
|
License level |
3 |
|
Operating System |
RouterOS |
|
Size of RAM |
64 MB |
|
Storage size |
16 MB |
|
Storage type |
FLASH |
|
Tested ambient temperature |
-40°C to 60°C |
|
Powering |
| Package Contents: |
|---|
| 1 x SXT 4G kit
|
| 1 x 24V 0.38A power adapter
|
| 1 x PoE Injector
|
| 1 x Metal Ring
|
| 1 x Pole Mounting Bracket |
|
