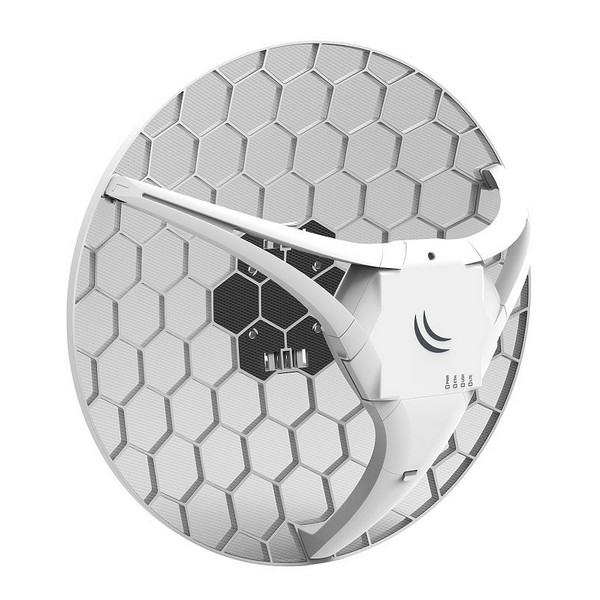

LHG 4G kit - LHG 4G/LTE High gain 21dBi CPE for very remote areas, LTE modem for bands 3, 7, 20, 31, 41n, 42 and 43
The LHG 4G kit is a device for remote locations that are within cellular network coverage. Mount it outdoors, on a pole, mast or any high enough structure, and connect even where cell phones can’t. Due to it’s large sized high gain 21dBi antenna, the device is capable to connect to cell towers in extreme rural locations, giving you the ability to provide last mile internet access where nothing else is available.
The unit is equipped with one Ethernet port, has a built in high quality Category 4 modem for speeds of up to 150 Mbit/s downlink and 50 Mbit/s uplink.
RBLHGR&R11e-4G includes LTE modem that supports LTE FDD bands 3 (1800MHz), 7 (2600MHz), 20 (800MHz) and 31 (450MHz), as well as LTE TDD bands 41n (2500MHz), 42 (3500MHz) and 43 (3700MHz).
|
Specifications |
|
Mode button |
Yes |
|
Number of SIM slots |
1 Modem (Micro SIM) |
|
MiniPCI-e slots |
1 |
|
Other |
|
10/100 Ethernet ports |
1 |
|
Peripherals |
|
LTE Category |
4 (150Mbps Downlink, 50Mbps Uplink) |
|
LTE FDD bands |
3 (1800MHz) / 7 (2600MHz) / 20 (800MHz) / 31 (450MHz) |
|
LTE TDD bands |
41n (2500MHz) / 42 (3500MHz) / 43 (3700MHz) |
|
Ethernet |
|
PoE in |
802.3af/at |
|
PoE in input Voltage |
12-57 V |
|
Number of DC inputs |
1 (PoE-IN) |
|
Max power consumption |
5 W |
|
Mobile |
|
Product code |
RBLHGR&R11e-4G |
|
Architecture |
MIPSBE |
|
CPU |
QCA9531 |
|
CPU core count |
1 |
|
CPU nominal frequency |
650 MHz |
|
Dimensions |
391 x 391 x 227 mm |
|
License level |
3 |
|
Operating System |
RouterOS |
|
Size of RAM |
64 MB |
|
Storage size |
16 MB |
|
Storage type |
FLASH |
|
Tested ambient temperature |
-40°C to 60°C |
|
Powering |
| Package Contents: |
|---|
| 1 x LHG 4G kit
|
| 1 x 24V 0.38A power adapter
|
| 1 x PoE Injector
|
| 1 x K-LHG kit
|
| 2 x Metal rings |
|
