RBSEXTANTG-5HPnD

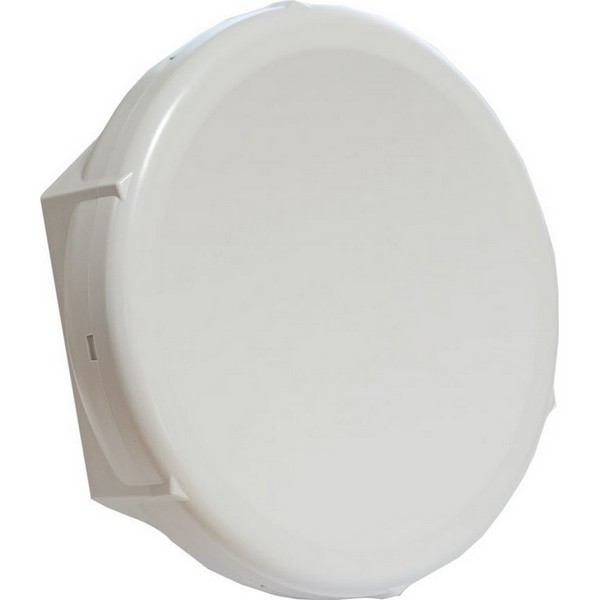

The SEXTANT is a 18dBi 5GHz antenna with a built in RB911G router.
It has two polarizations to give you all benefits of 2x2 MIMO in 802.11n.
Inside is the high power RB911 dual chain wireless device, with high performance, high output power, and a Gigabit Ethernet port, to fully
utilize the benefit of 802.11n high speed wireless.
Easy to use and quick to deploy, SEXTANT is ideal for point to point links.
|
Specifications: |
|
Product code |
RBSEXTANTG5HPnD |
|
CPU nominal frequency |
600 MHz |
|
CPU core count |
1 |
|
Size of RAM |
32 MB |
|
10/100 Ethernet ports |
0 |
|
10/100/1000 Ethernet ports |
1 |
|
MiniPCI slots |
0 |
|
MiniPCI-e slots |
0 |
|
Wireless chip model |
AR9342-BL1A |
|
Wireless standards |
802.11a/n |
|
Number of USB ports |
0 |
|
Power Jack |
0 |
|
PoE in |
Yes |
|
Voltage Monitor |
No |
|
PCB temperature monitor |
No |
|
CPU temperature monitor |
No |
|
Dimensions |
250mm, height 90mm, 830g |
|
Operating System |
RouterOS |
|
Operating temperature range |
-30°C to +70°C |
|
Antenna gain DBI |
18 |
|
Current Monitor |
No |
|
CPU |
AR9342-BL1A |
|
Max Power consumption |
11W |
|
SFP ports |
0 |
|
SFP+ ports |
0 |
|
Number of chains |
2 |
|
Serial port |
None |
