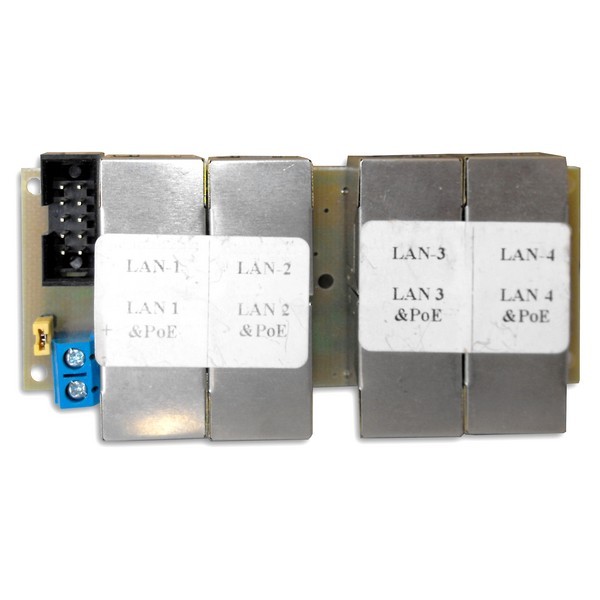

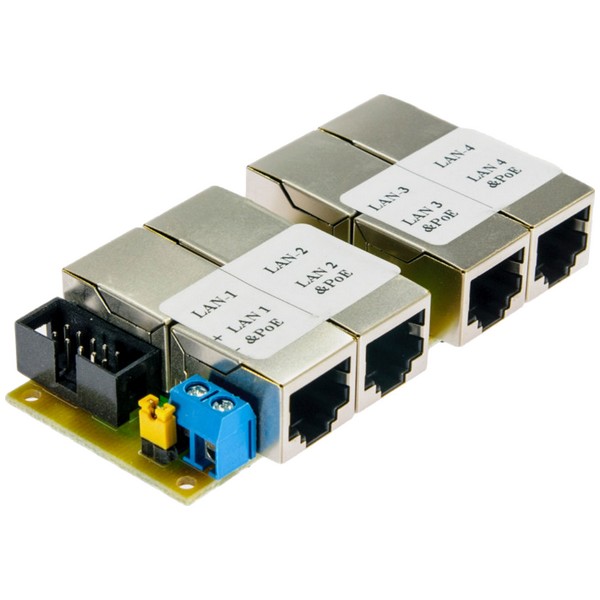

4xPoE resetting board
PoE injector with reseting board. It contain a 4-port LAN and 4 ports with PoE. After joining the Lan Controller or GSM controller. There is ability to manage of power of each port independently.
The main application is the "wholesale" power connection (eg, from buffer power) to 4 ethernet line and independent control of them.Tile also has a protection against reverse connection of power.
Board is equipped in 10cm long wire ribbon with plugs for connection to main board.
Attention: Please don’t supply PoE restarter and GSM by 2 independent adapters! You can disconnect one of adapter (for example on GSM v2 board) or release jumper based near power terminal on reseter board. Below 1A of current demand by devices connected to PoE restater board, supply can be realized by IDC ribbon from GSM board. If you have higher load please connect supply directly to PoE restarter board and disconnect GSM board supply. Then it will be supplied by this IDC10 ribbon.
