Electronics » Sensor » LANKON-073
SCT-013-030 Splilt-core current transformer
[1965][LANKON-073]
Price: 6,62€
 Order or Qty  Price
 > 500€  5+   6,49€
 > 1000€  10+   6,36€
 > 2000€  20+   6,22€
 > 5000€  40+   6,09€
 > 10000€  100+   5,96€
Prices exclude VAT

SCT-013-030 Splilt-core current transformer

No Stock
Order Qty:

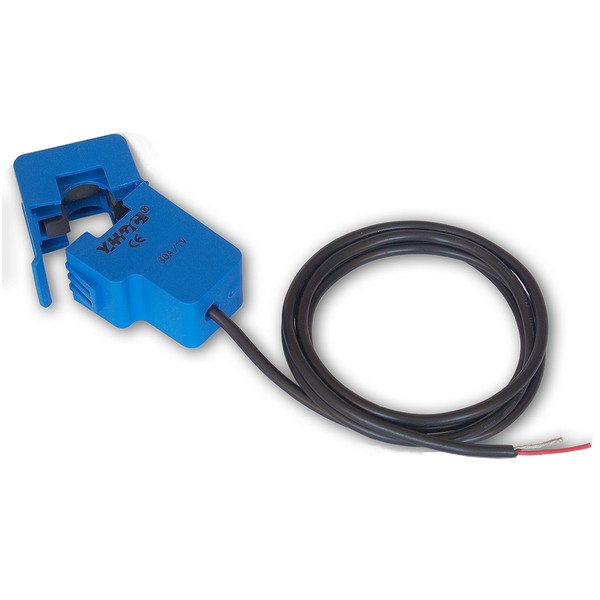

Splilt-core current transformer SCT-013-030

Non-invasive current transformer, measurement is possible after putting magnetic clamps on a single wire.

Sensor will not measure when put on all cable: current and ground wire together.

Output voltage is alternate voltage proportional to current in main wire.

This sensor could be use with Lan Controller v3 INPA1-4 inputs.

Technical specifications:
- AC current range 0-30A AC
- maximal measurement wire diameter - 12mm
- build-in sampling resistance 62ohm
- output voltage alternate 0-1V AC
- cable lengt - 1m
- weight - 45g
