GrooveA 52HPn
Our smallest outdoor series model - a fully featured wireless RouterBOARD powered by RouterOS.
Weatherproof, durable and ready to use. It has one 10/100 Ethernet port with PoE support and a built in wireless radio.
It has software selectable 2 or 5GHz wireless mode, and high 500mW output power! GrooveA has also supports AP mode.
With the Nv2 TDMA technology, up to 125Mbit aggregate throughput is possible!

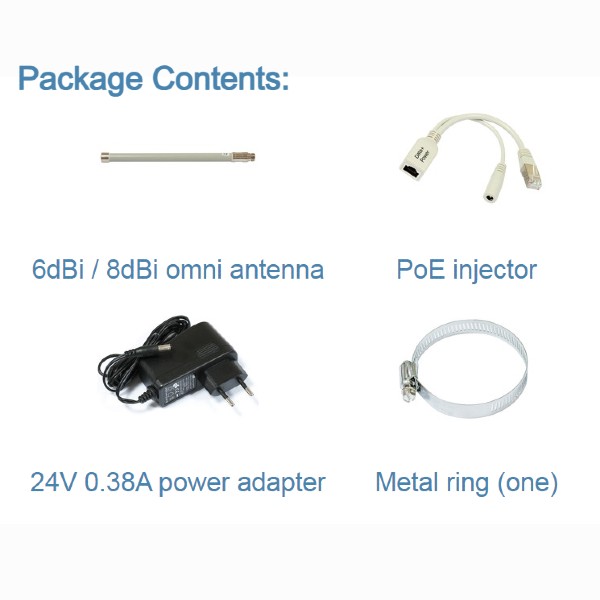

NEW- now comes packaged with a 2GHz only, 6dBi Omni antena!
|
Specifications: |
|
Product code |
RBGrooveA-52HPn |
|
CPU nominal frequency |
600 MHz |
|
CPU core count |
1 |
|
Size of RAM |
64 MB |
|
10/100 Ethernet ports |
1 |
|
10/100/1000 Ethernet ports |
0 |
|
MiniPCI slots |
0 |
|
MiniPCI-e slots |
0 |
|
Wireless chip model |
AR9342-BL1A |
|
Wireless standards |
802.11a/b/g/n |
|
Number of USB ports |
0 |
|
Power Jack |
0 |
|
PoE in |
Yes |
|
Voltage Monitor |
Yes |
|
PCB temperature monitor |
Yes |
|
CPU temperature monitor |
No |
|
Dimensions |
177 x 44 x 44 mm, 193g |
|
Operating System |
RouterOS |
|
Operating temperature range |
-30°C to +70°C |
|
License level |
4 |
|
Antenna gain DBI |
6 |
|
Current Monitor |
No |
|
CPU |
AR9342-BL1A |
|
Max Power consumption |
Up to 0.19A at 24V (4.56W) |
|
SFP ports |
0 |
|
SFP+ ports |
0 |
|
Number of chains |
1 |
|
Serial port |
None |
